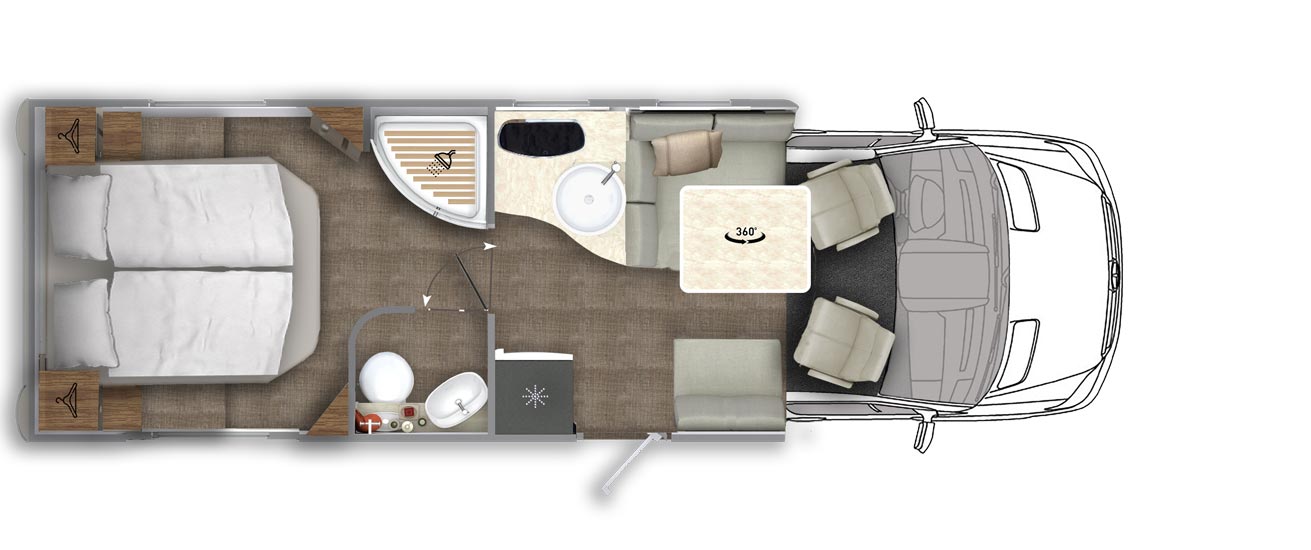

CT 766 QB
360° Panorama:
Technical data
| Basic vehicle | Mercedes Benz / AL-KO low-slung frame |
|---|---|
| Engine models | 110 kW, 150 HP |
| Engine models (optional) | 125 kW, 170 HP |
| Double floor height (mm) | 195 |
| Wheelbase (mm) | 4450 |
| Tyres | 225/75 R16C(235/60 R17C) |
| Total techn. perm. Weight when laden (kg) | 4500 kg |
| Weight in ready-to-drive state* (kg)( 1 ) | 3400 kg |
| Trailer weight* (braked) (kg)( 2 ) | 2000 kg |
| Total length (mm) | 7844 |
| Total width (mm) | 2322 |
| Total height (mm) | 2920 |
| Interior width (mm) | 2174 |
| Standing height (mm) | 1975 |
| Front side seating group (mm) | 1150 x 1050 |
| Bed conversion of the seating group (mm)( 3 ) | 1900 x 1000 |
| Rear bed (mm) | 1950 x 1500 |
| Coachbuild bed / Lift-up bed (mm) | - |
| Extension to X sleeping areas | 4 |
| Permissible number of people with 3-point seatbelts total* | 4 |
| Seat extension to X persons( 4 ) | - |
| Wall thickness of wall (mm) | 30 |
| Wall thickness of roof (mm) | 30 |
| Wall thickness of floor (mm) | 38 |
| Fresh water tank (l)( 5 ) | 140 ltr. |
| Battery capacity (Ah) | 1 x 80 AH Gel |
| Water volume in drive position (l) | 100 ltr. |
(1)Dimensions in ready-to-drive state as per EU Directive 1230/2012: Vehicle with standard features according to the manufacturer specifications, 90% of the fill capacity for fuel, 75 kg (weight of the driver), water in drive position and gas (11 kg gas cylinder made of aluminium), without special features
(2)Note combination weight
(3)Not in conjunction with 6430 table with chrome-plated pedestal or 6470 wardrobe instead of single seat
(4)Activa One: Only with seat belts facing away from the direction of travel and 40 H chassis | Profila T/RS: only in combination with 2324 “total mass to 3.65 t” or 2313 Maxi chassis
(5)Water volume in drive position 25 l. If there is sufficient residual cargo, the water tank with a marked capacity of 25 l can be filled to its actual capacity
Equipment
Engine
| serial/optional | |
|---|---|
| Mercedes-Benz 170 HP motor | optional |
| Mercedes-Benz 150 HP motor | serial |
| Heavy Duty | serial |
Other options
| serial/optional | |
|---|---|
| Mercedes Benz 9G-Tronic automatic transmission | optional |
| Fuel tank, 92 litre | optional |
Paint finish
| serial/optional | |
|---|---|
| Obsidian black paintwork | optional |
Exterior
| serial/optional | |
|---|---|
| Superstructure door with central locking | serial |
| Rear design package | optional |
| Rear comfort supports | optional |
| Trailer coupling | optional |
| Roof-mounted air-conditioning system 230 Volt | optional |
| Window in toilet room | serial |
| Starlight Dome panor. roof w. smart lift & soft close funct. | serial |
| Dachhaube aufstellbar | serial |
| Electric roof fan | serial |
| Garage door service flap | serial |
Equipment packages
| serial/optional | |
|---|---|
| Driving assistance package CT MB (Active lane departure assistant, High beam assistant, Tyre air pressure sensors, Fog light, LED high performance headlights) | optional |
| Luminary Package Contura (Paintwork obsidian black, 170 HP Mercedes-Benz motor, 9G-Tronic automatic transmission Mercedes-Benz, Fuel tank 92 litre, MBUX infotainment system, Electric external mirrors, Comfort seats, Chrome-plated radiator grille, Bumpers & attachment parts in vehicle colour, Leather steering wheel, 17 inch aluminium rims, Electric parking brake, Cruise control, Traffic sign assistant, Active distance assistant, Distronic, Climatronic automatic air conditioning, Acoustic package, Storage compartment under cockpit, Flap cover for storage compartments, Carpet in the driver’s cab, External décor in Carbon, Heat-insulating glass with band filter, Adjustable roof hood, Starlight Dome panorama roof w. smart lift & soft close functions, Electric roof fan, Superstructure door with central locking, Mesh screen for cabin door, Pre-cabling for solar power system, Driver cab dimming system, Extractor hood) | optional |
| Luminary Plus Package Contura (Paintwork obsidian black, 170 HP Mercedes-Benz motor, 9G-Tronic automatic transmission Mercedes-Benz, Fuel tank 92 litre, MBUX infotainment system, Electric external mirrors, Comfort seats, Chrome-plated radiator grille, Bumpers & attachment parts in vehicle colour, Leather steering wheel, 17 inch aluminium rims, Electric parking brake, Cruise control, Traffic sign assistant, Active distance assistant, Distronic, Climatronic automatic air conditioning, Acoustic package, Storage compartment under cockpit, Flap cover for storage compartments, Carpet in the driver’s cab, External décor in Carbon, Heat-insulating glass with band filter, Adjustable roof hood, Starlight Dome panorama roof w. smart lift & soft close functions, Electric roof fan, Superstructure door with central locking, Mesh screen for cabin door, Pre-cabling for solar power system, Driver cab dimming system, Extractor hood, All-round insulation in the driver cab, Mechanical canopy, Multi-function socket, Toilet ventilation (SOG), External shower (cold/warm), External gas socket, Dual-control CS with de-icer) | optional |
Multimedia
| serial/optional | |
|---|---|
| Moniceiver with rear-view camera | optional |
| Naviceiver with rear-view camera | optional |
| MBUX | optional |
| Sound system | optional |
| Flat screen wall bracket in front area | optional |
| Flat screen wall bracket in rear area | optional |
Interior
| serial/optional | |
|---|---|
| Comfort seats with seat htg, lordosis support & height adj. | optional |
| Driver cab all-round insulated curtain | optional |
| Driver cab floor heating (heated floor mat / Alde heating) | optional |
| Driver's cab dimming system | optional |
| Mesh screen for cabin door | serial |
| Additional bed for 2 people (conversion of seating group) | optional |
| Carpeted floor in superstructure | optional |
| Table with chrome-plated table pedestal | serial |
Bicycle carrier
| serial/optional | |
|---|---|
| Bicycle carrier for 2 bicycles or 2 E-bikes (up to 60 kg) | optional |
| Bike carrier extension kit 4-way | optional |
Sunblinds
| serial/optional | |
|---|---|
| 5 m canopy | optional |
Technical services
| serial/optional | |
|---|---|
| Multi-function socket | optional |
| Underfloor camera for electrical tank emptying | optional |
| External shower (cold/warm) | optional |
| Lithium battery (1x) | optional |
| Lithium batteries (2x) | optional |
| 2nd gel battery - 80 Ah | optional |
| Pre-cabling for solar power system | optional |
| Autonomous E-bike charger | optional |
| External gas socket | optional |
| Duo-control CS with ice-ex | serial |
| Toilet ventilation (SOG system) | optional |
| Background lighting | serial |
Additional optional extras
| serial/optional | |
|---|---|
| Driver cab seats in superstructure upholstery | serial |
| Maka décor | serial |
| Lasca décor | optional |
| Rana décor | optional |
| Reduction of travel seats by 1 | optional |
| Reduct. of travel seats by 2 | optional |
| Reduction of travel seats by 3 | optional |
| Reduction of travel seats by 4 | optional |
Fabrics
| serial/optional | |
|---|---|
| Milano upholstery fabric | optional |
| Dara upholstery fabric | optional |
| Pisa upholstery fabric | optional |
| Leather beige upholstery fabric | optional |
| Leather grey upholstery fabric | optional |
| Como upholstery fabric | serial |
Furniture
| serial/optional | |
|---|---|
| Navarra furniture décor | serial |
Heating
| serial/optional | |
|---|---|
| Hot water heating - Alde | serial |
Kitchen
| serial/optional | |
|---|---|
| Extractor hood | serial |
| Oven | optional |
| Large refrigerator | serial |
Additional products
| serial/optional | |
|---|---|
| 1 year follow-on guarantee < 4.5t | optional |
| 2 year follow-on guarantee < 4.5t | optional |
| 3 year follow-on guarantee < 4.5t | optional |
