The new Xtura

for superlative independence!

The new Xtura – for superlative independence!

Being able to enjoy new degrees of freedom where others have to make sacrifices is something we have written into the Xtura’s roadmap. With enough independent power for up to 30 days, all-wheel drive, an especially torsion-resistant superstructure and navigation that works anywhere in the world, our long-distance motorhome will take you to your dream destinations well off the beaten track. To make sure you feel right at home while on the road, the Xtura spoils you with bus-controlled on-board technology, comfortable features and a winter-proof superstructure. Get moving towards the joy of limitless discovery!


Highlights (some of which are special features):

  • 330 Ah lithium battery

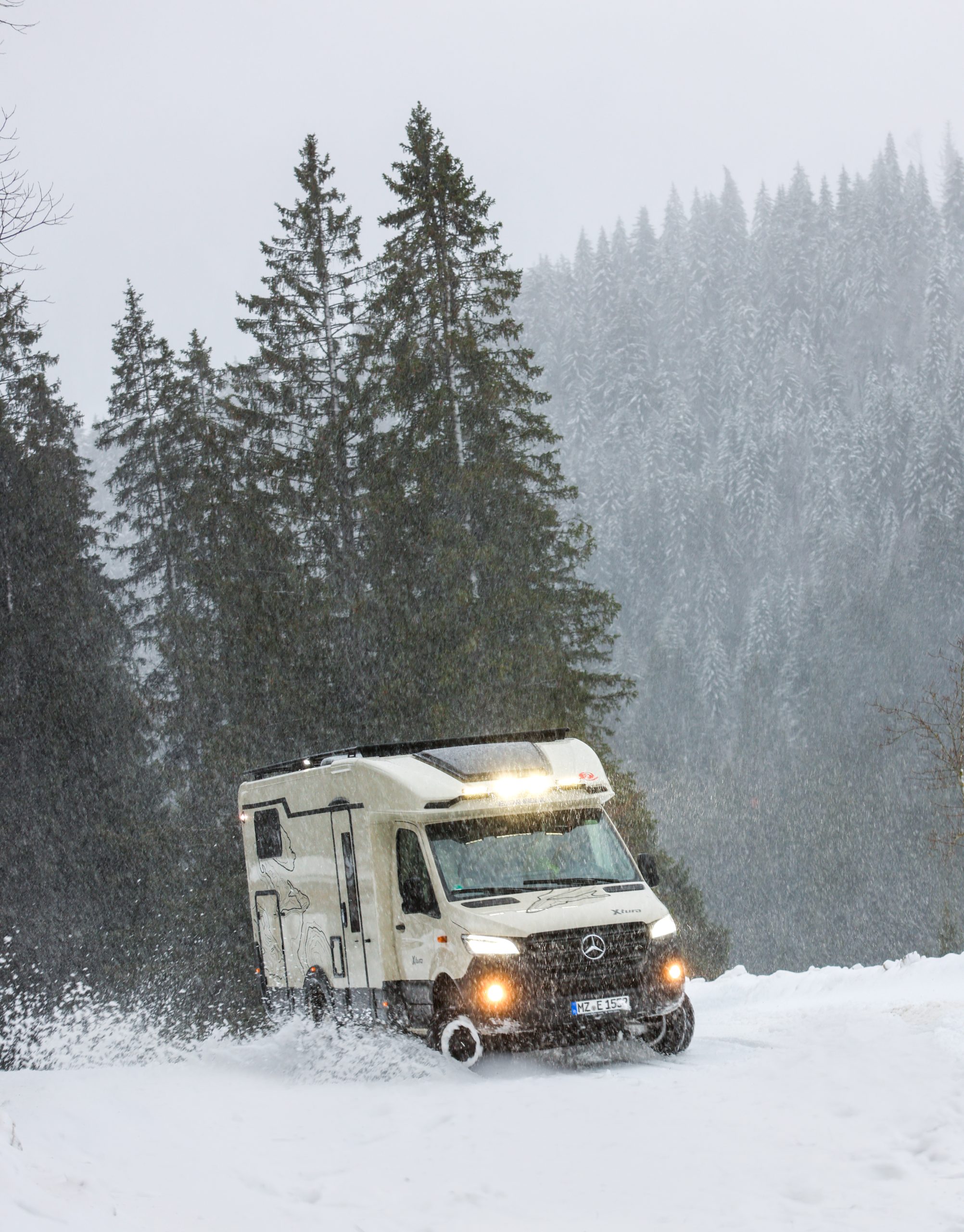

  • All-wheel drive
  • Garmin worldwide navigation
  • Bus-controlled monitoring of the on-board technology via control panel and pad/smartphone
  • Solar modules and ambient lighting integrated into the roof rack system
  • Particularly torsion-resistant superstructure with a floor plate that is 85-mm thick
  • Comfort features including underfloor heating, compressor refrigerator and an oven
Download Eura Mobil The new Xtura
The new Xtura as PDF
Bus-controlled control system

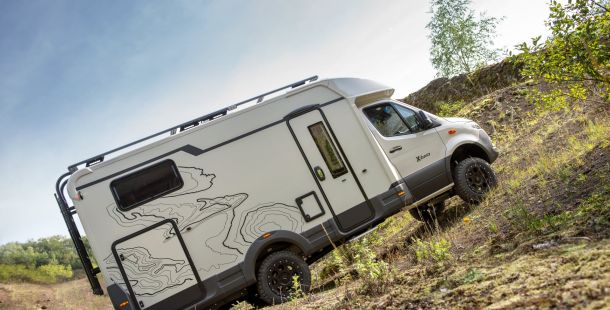

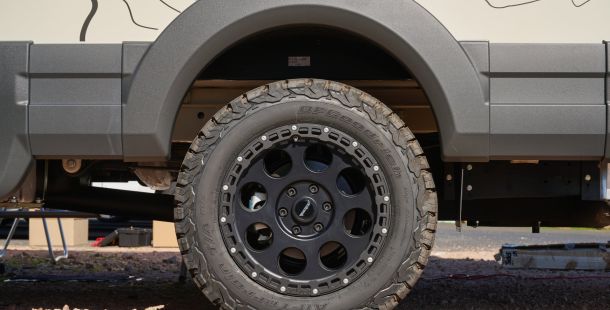

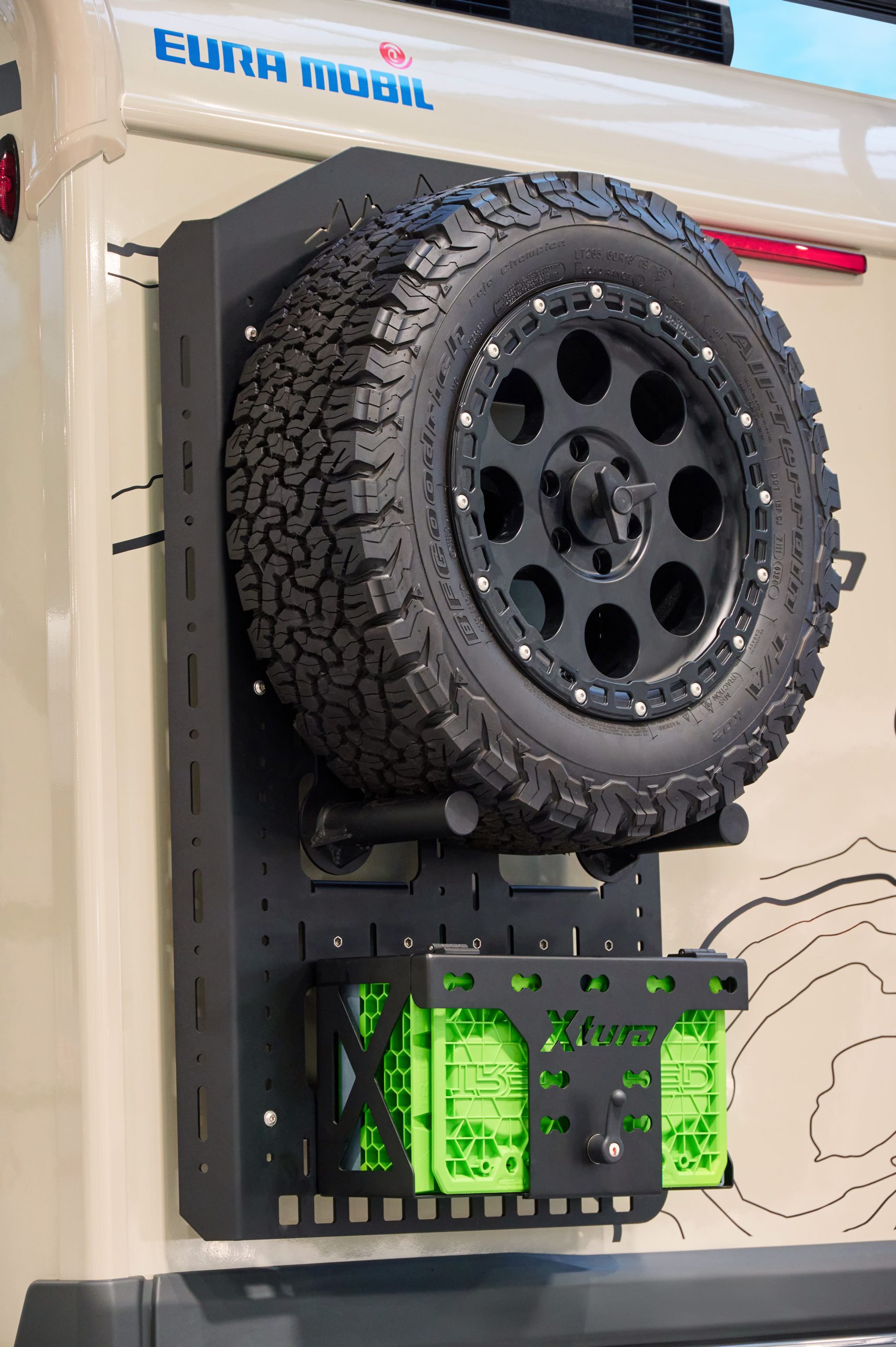

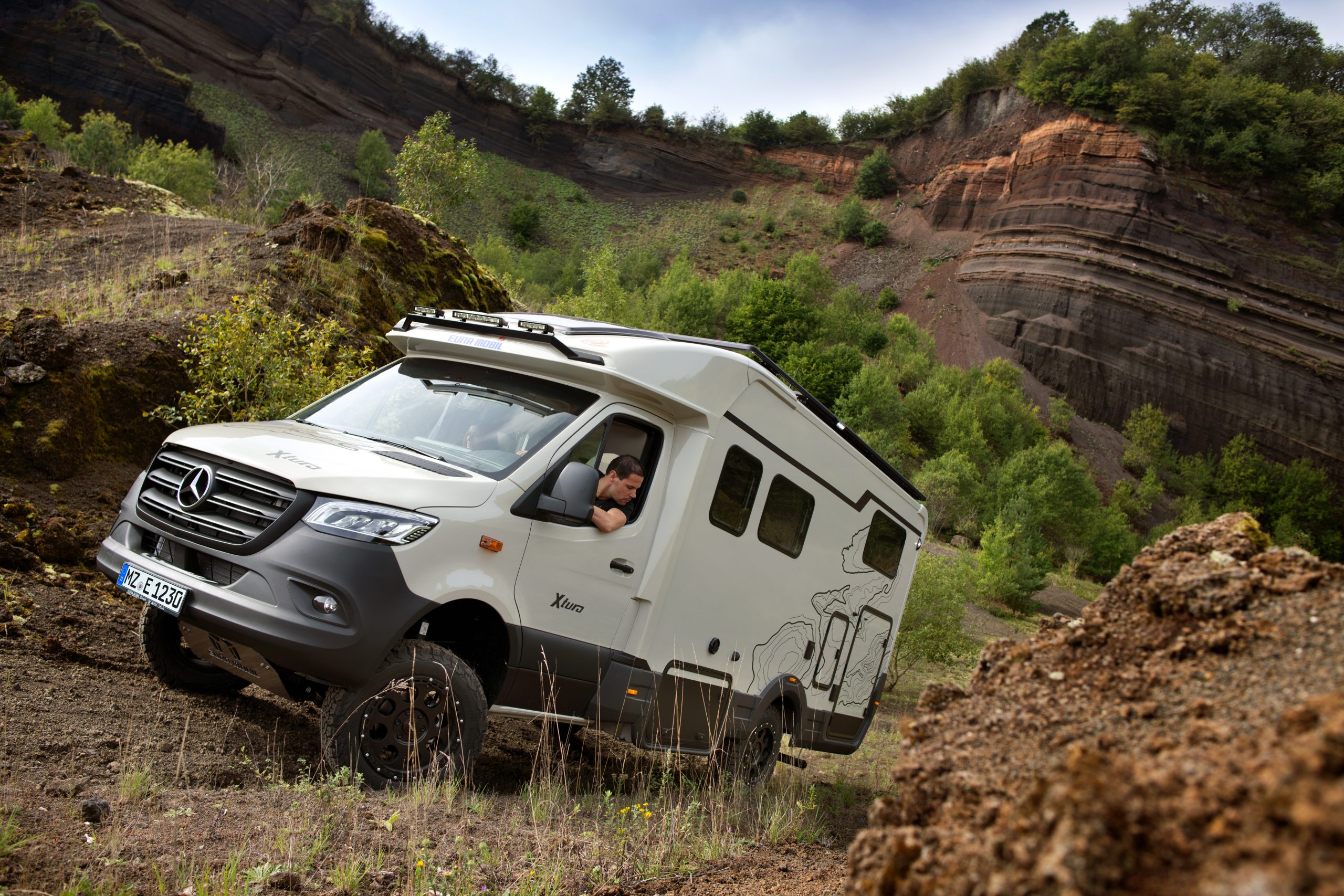

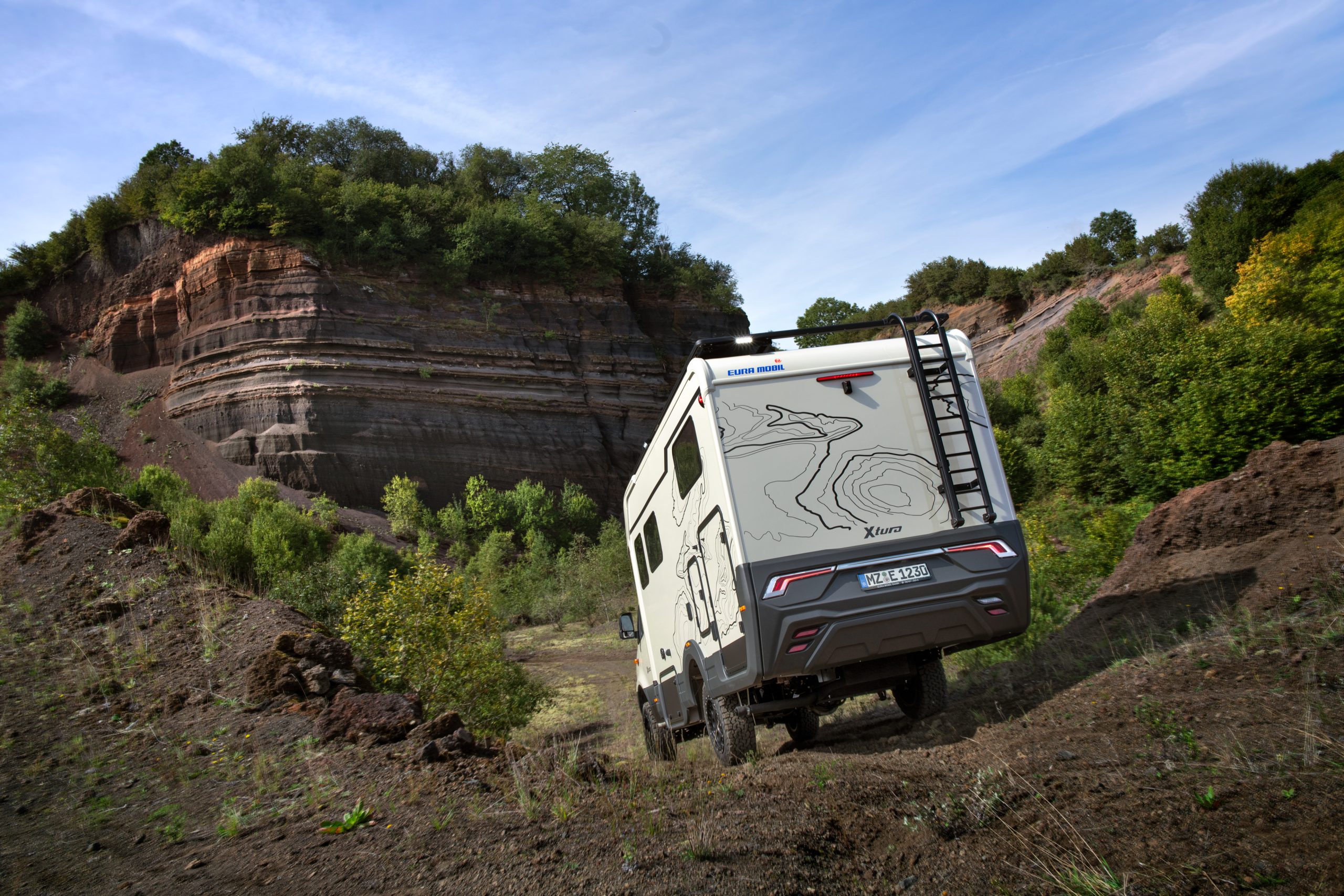

Chassis with underride guard, all-terrain wheels
Particularly torsion-resistant GRP superstructure with optimised slope angle
Compressor refrigerator

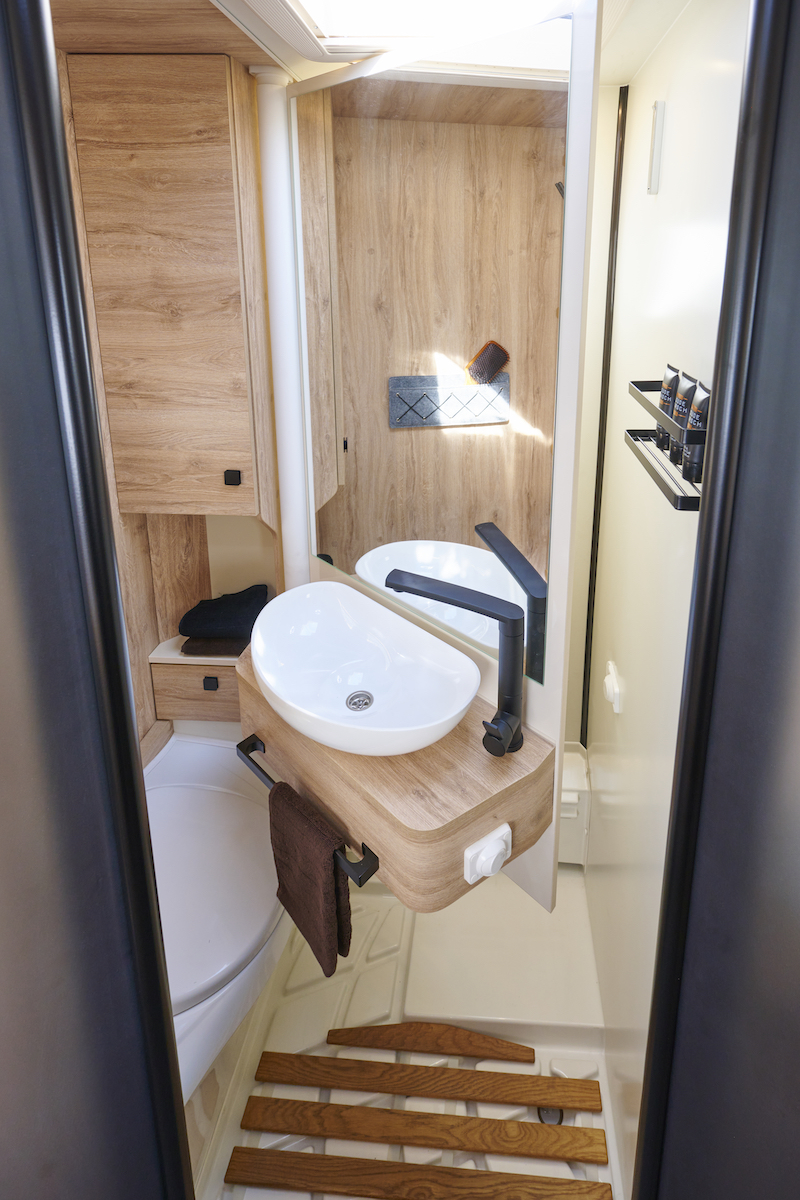

Bathroom with folding shower screen

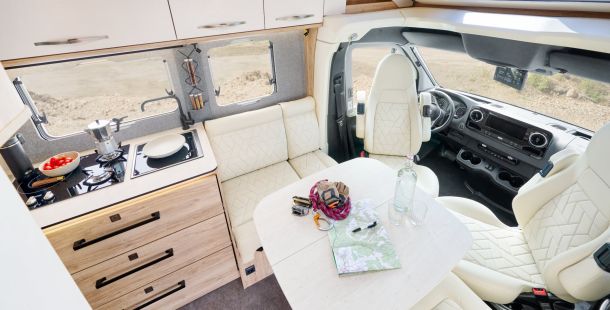

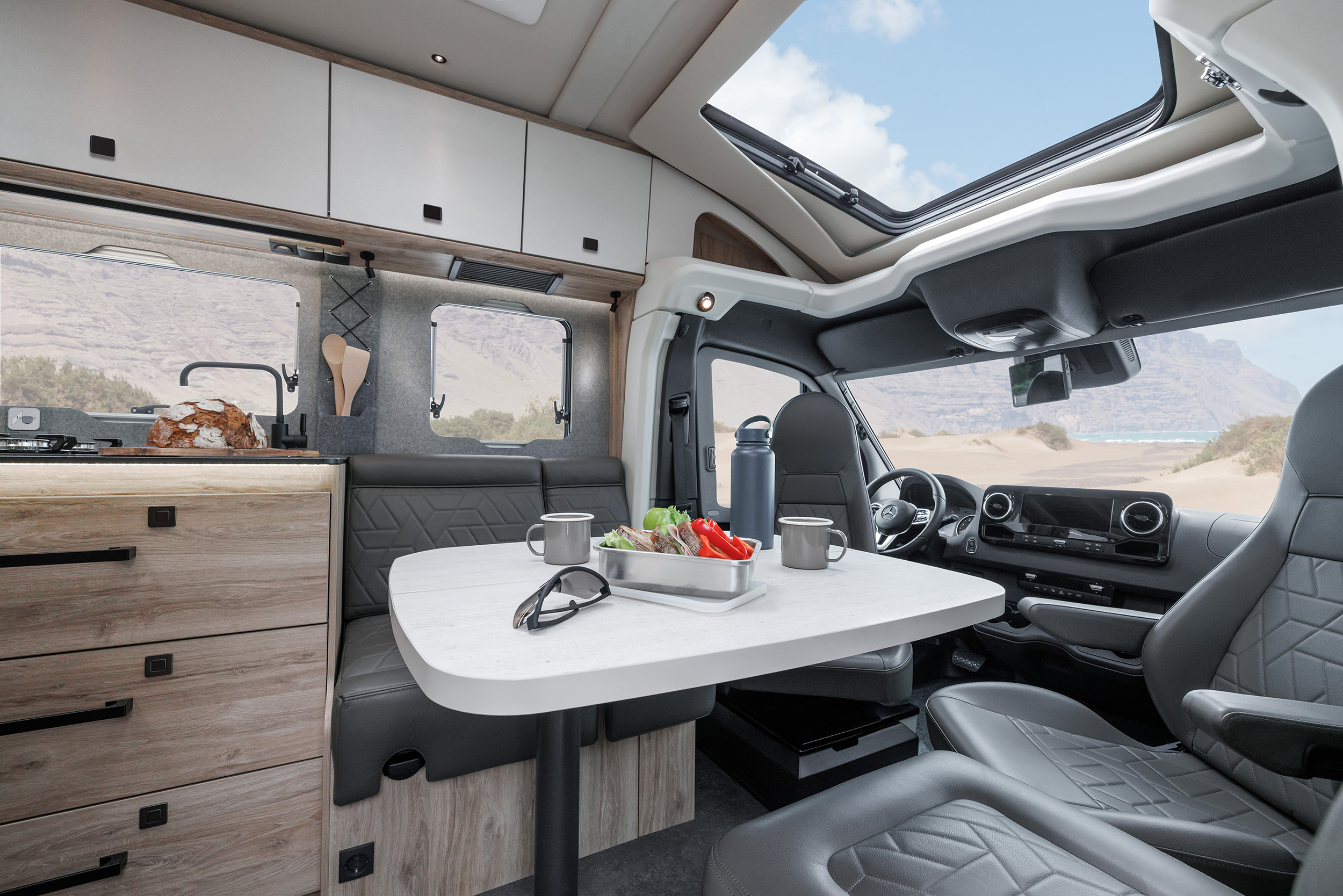

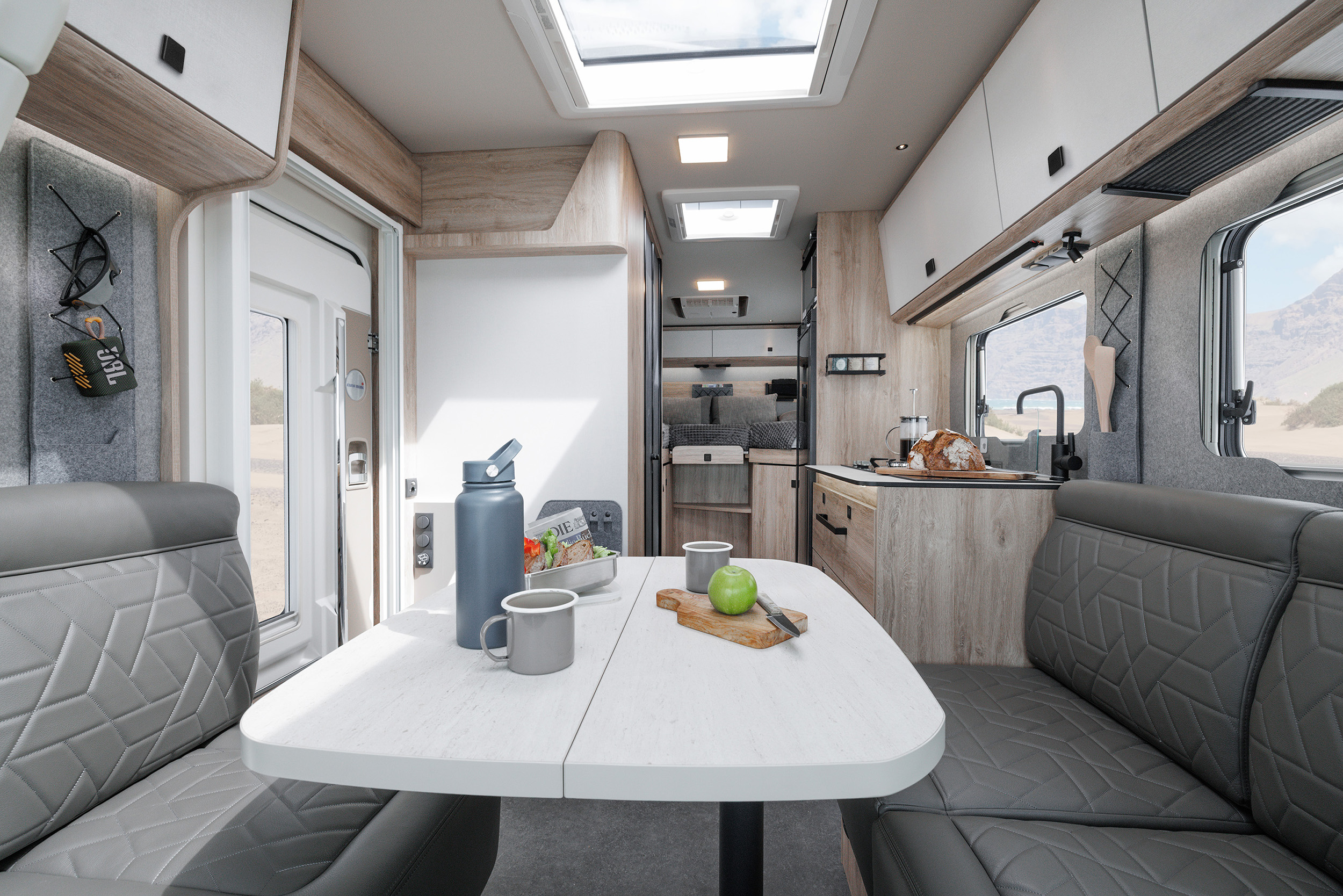

Face to face seating group
Underfloor heating

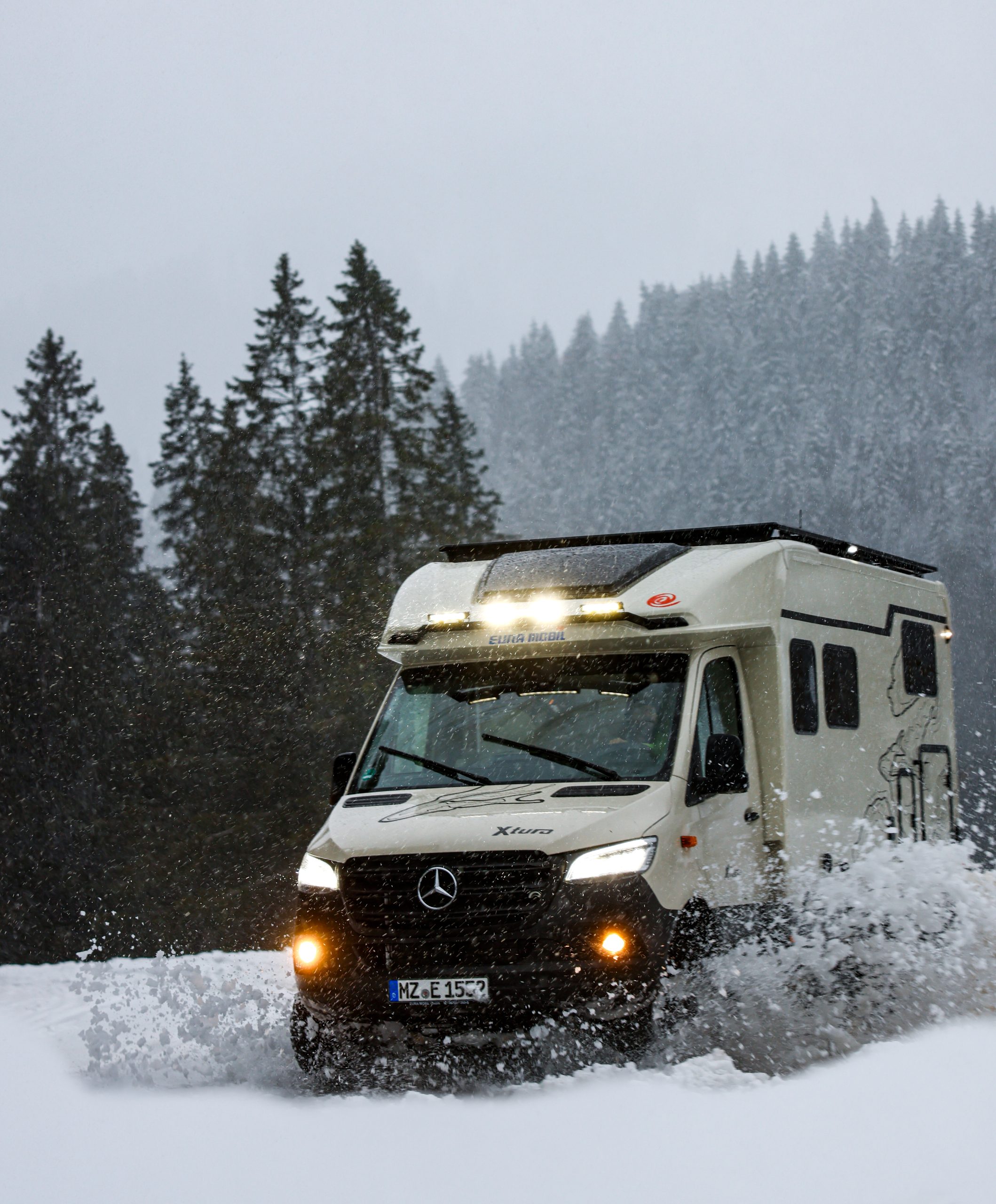

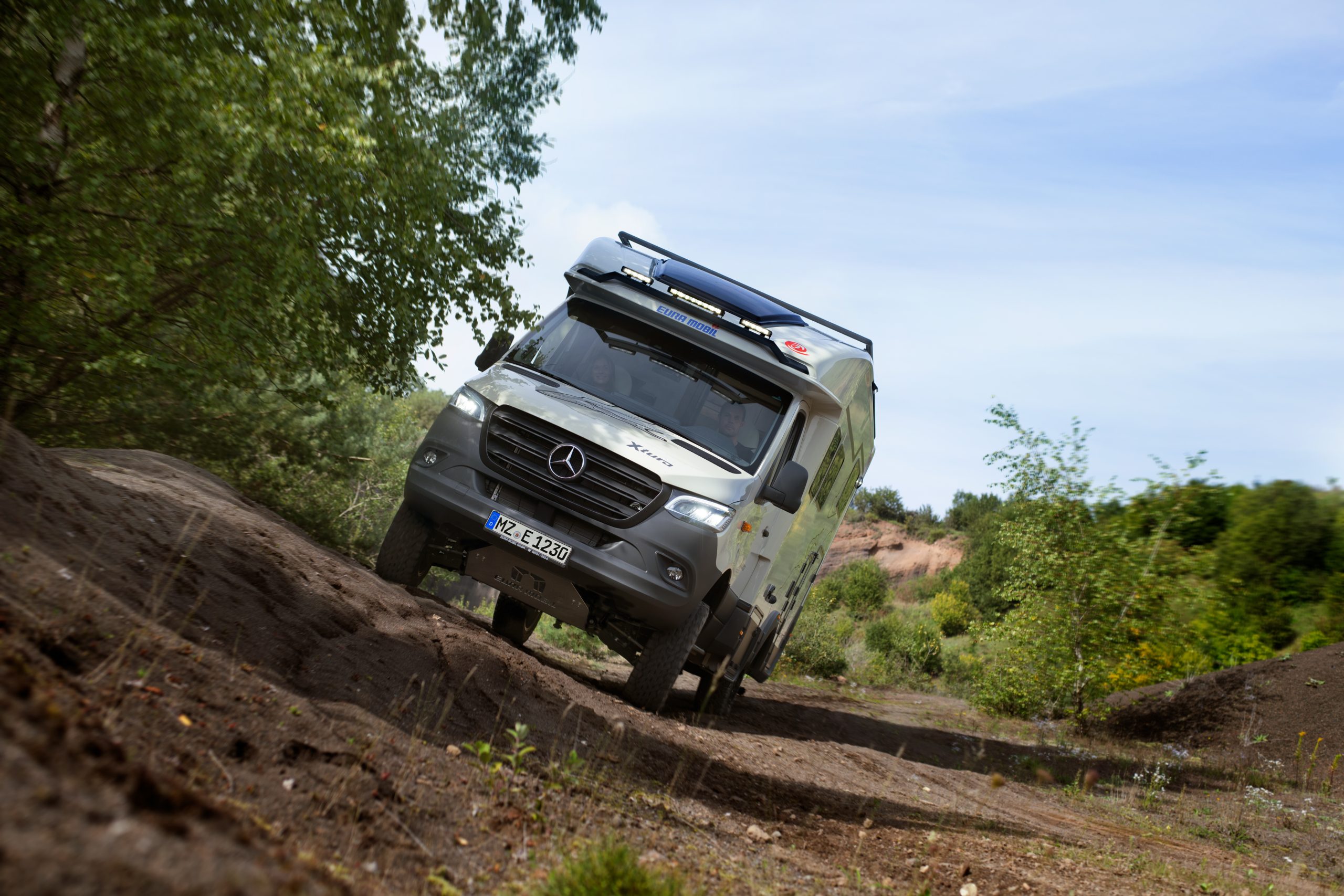

Mercedes Sprinter 4x4

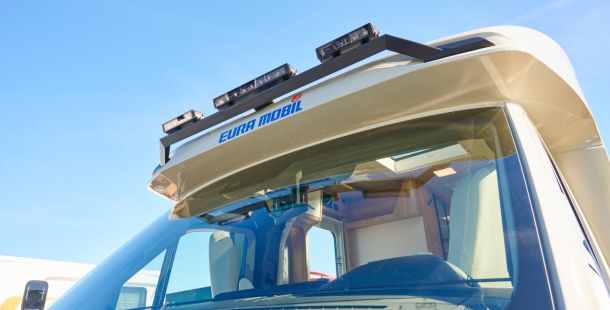

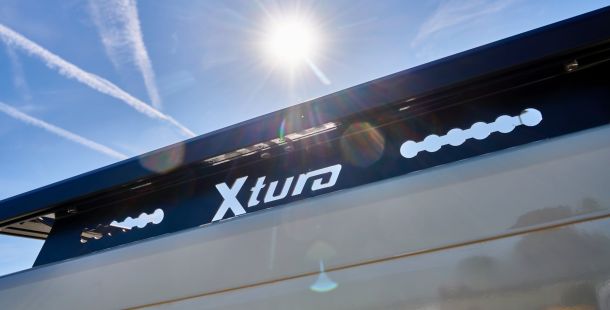

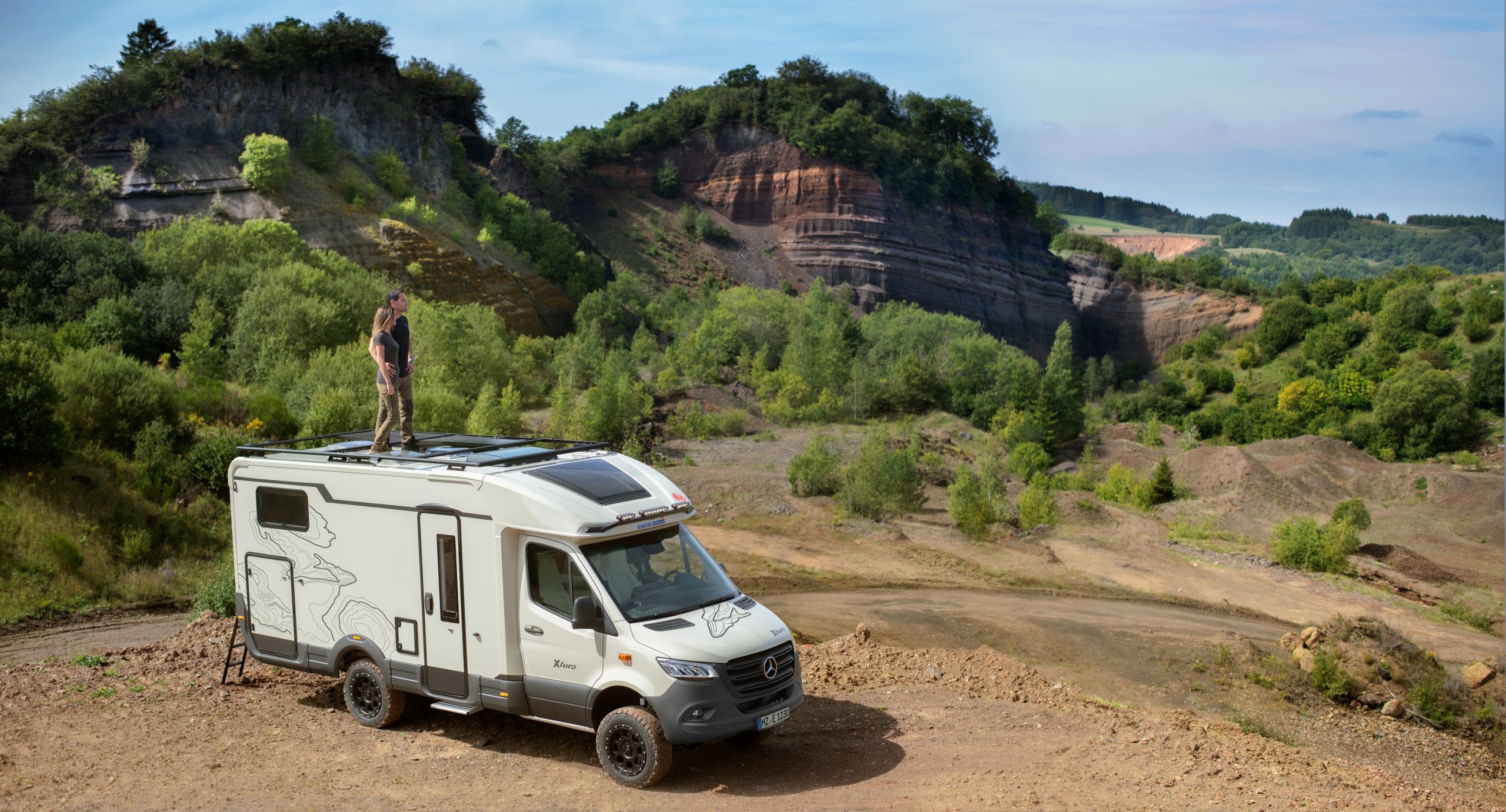

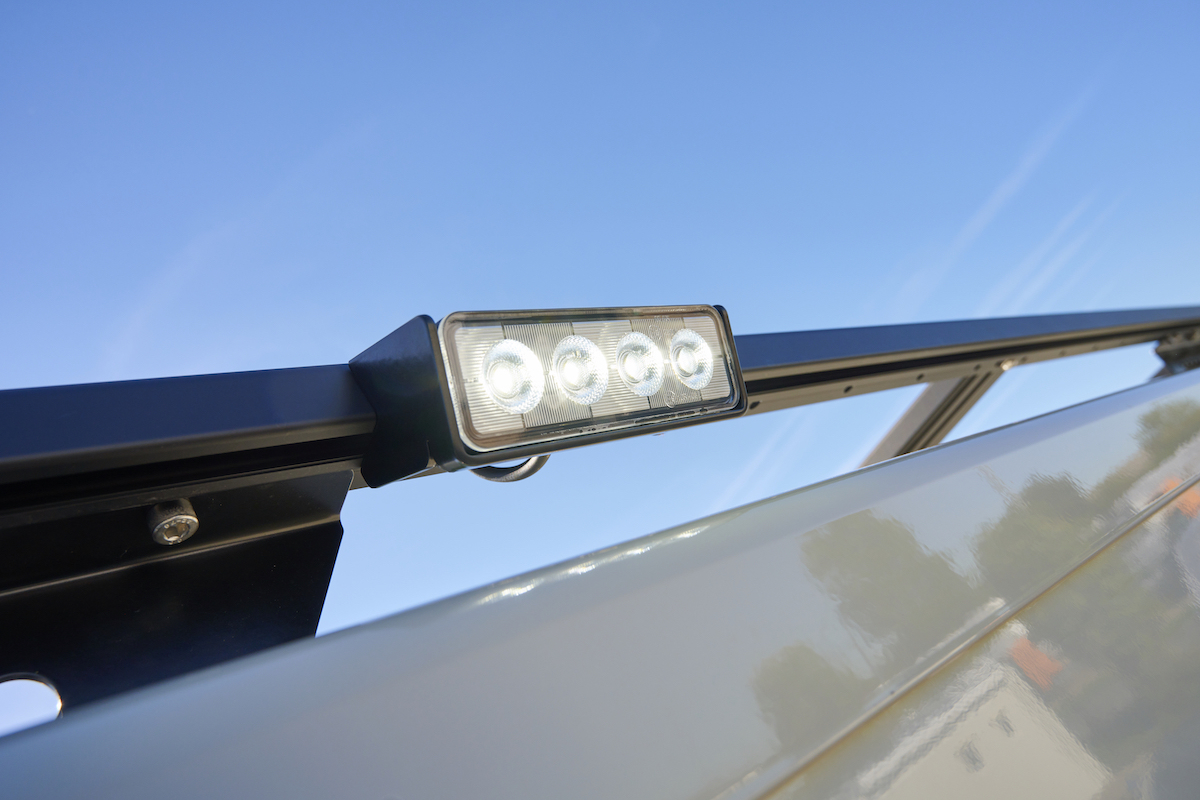

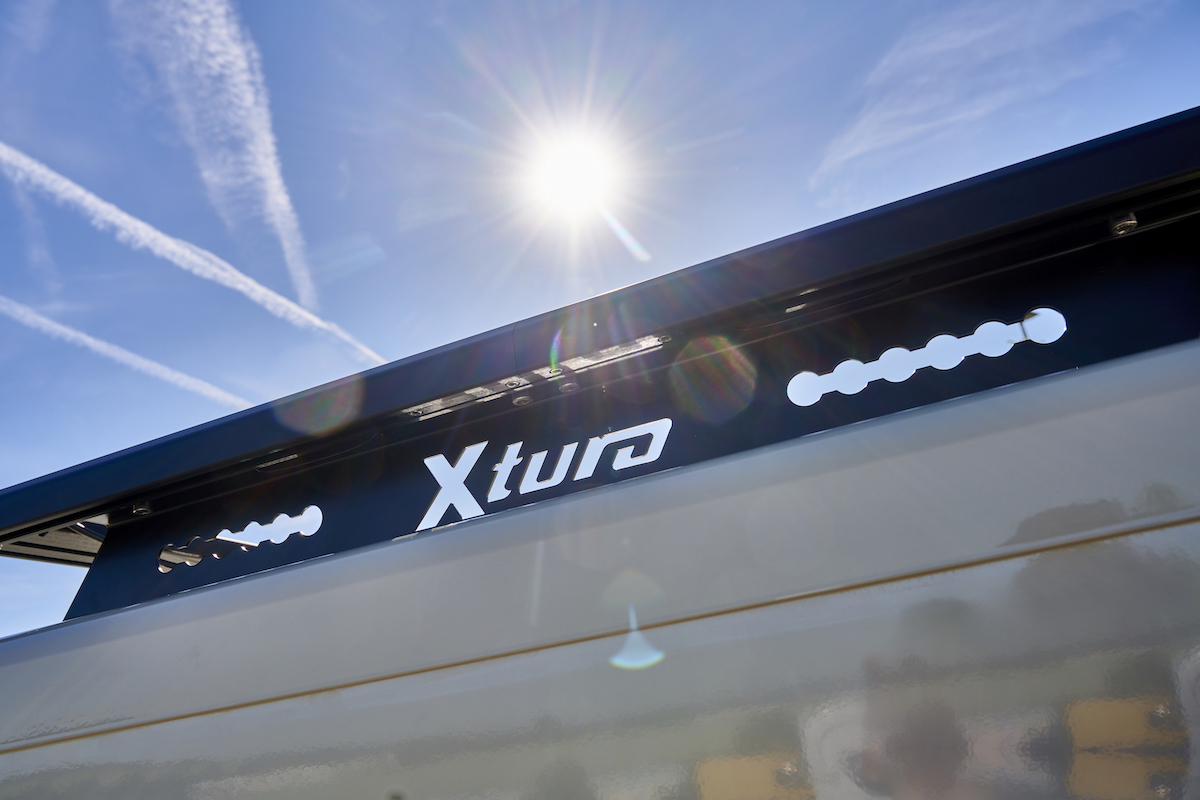

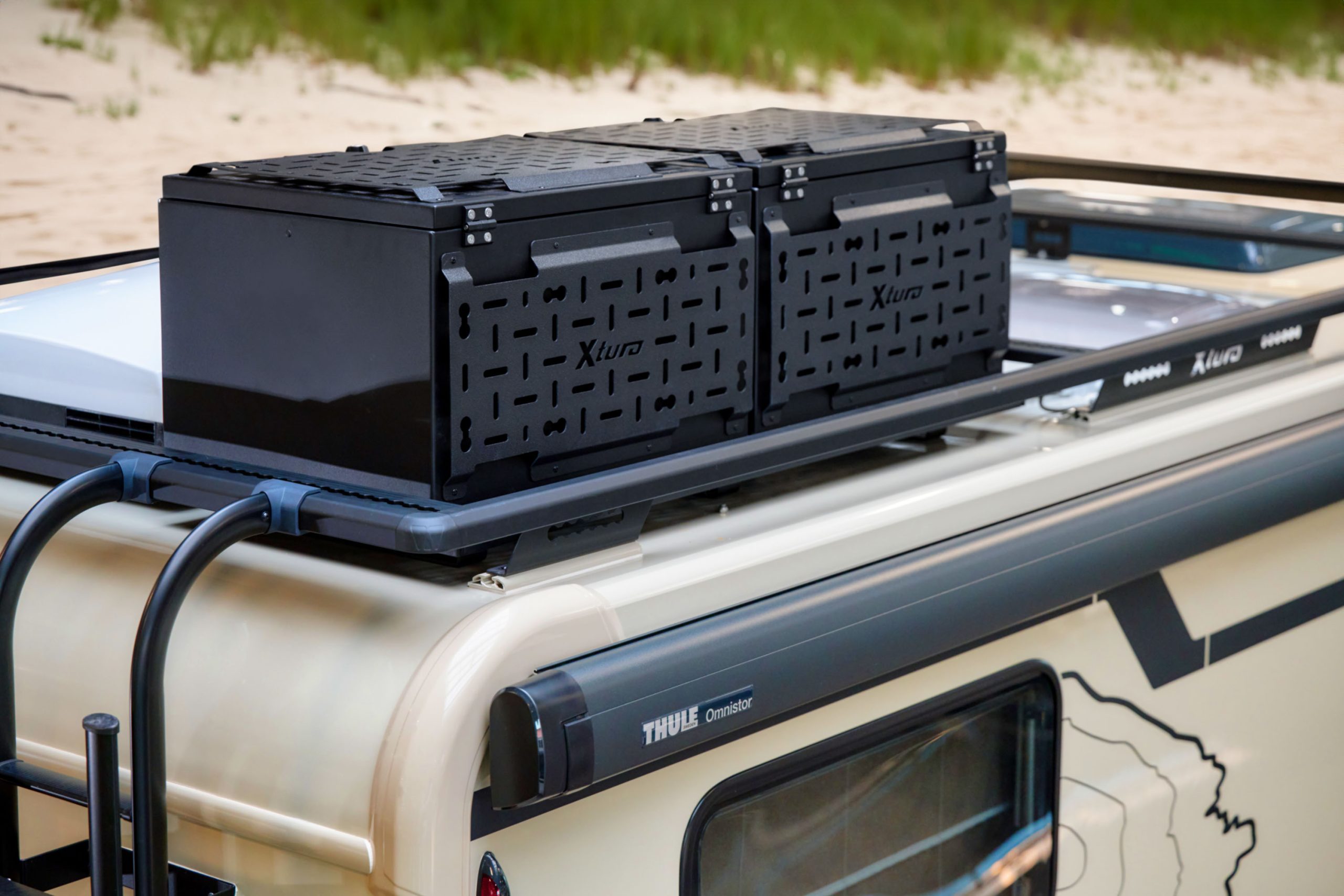

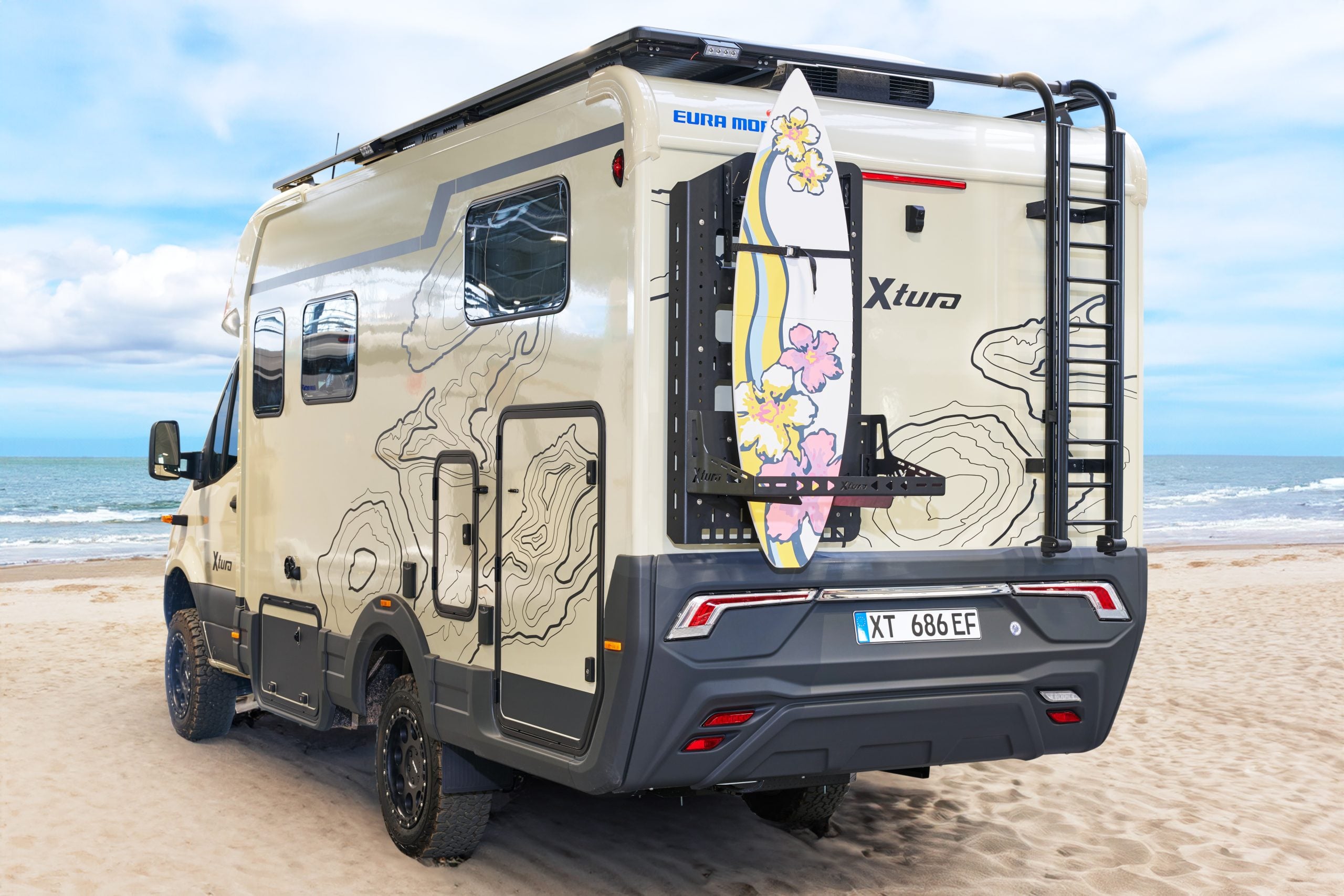

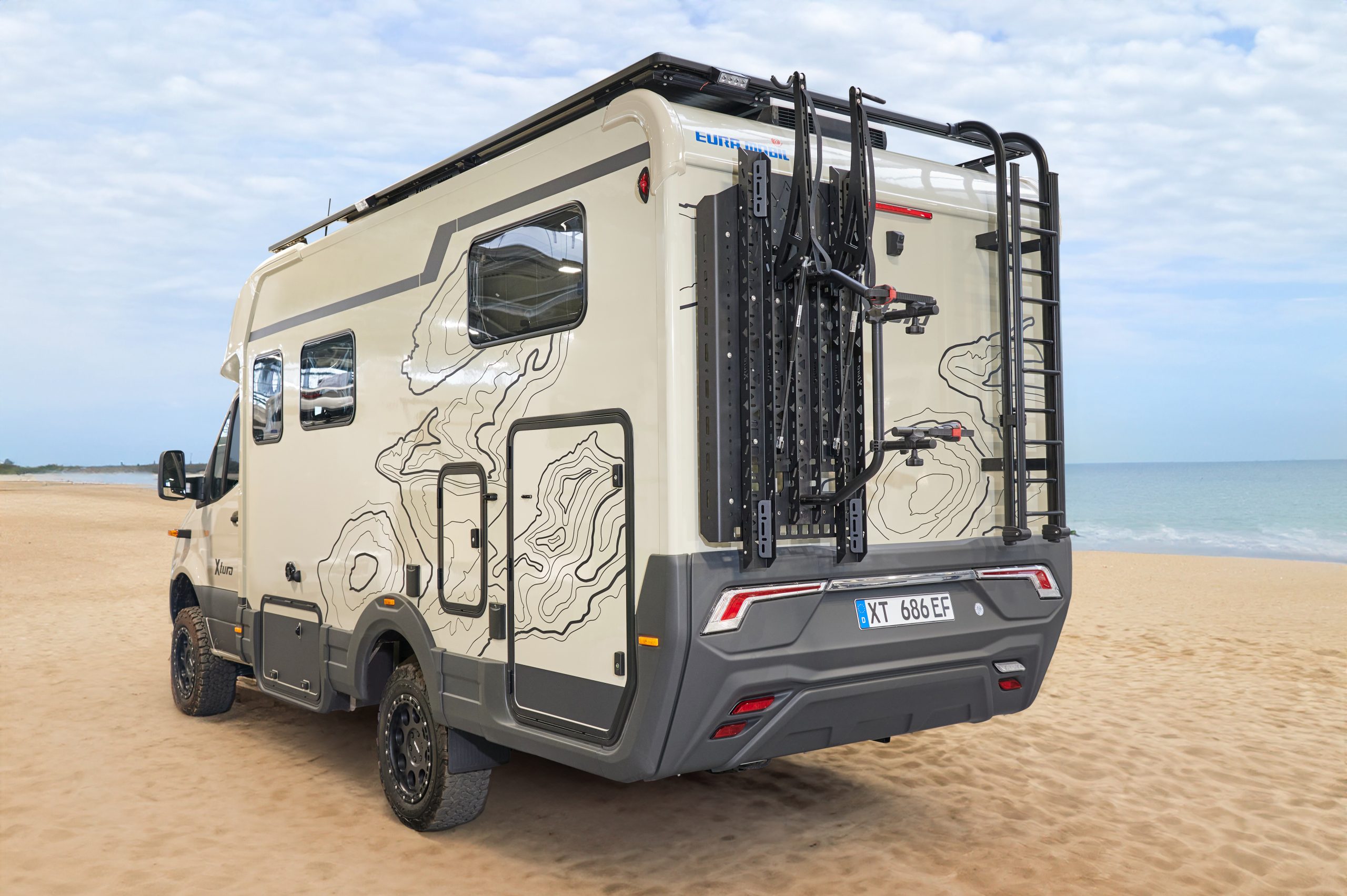

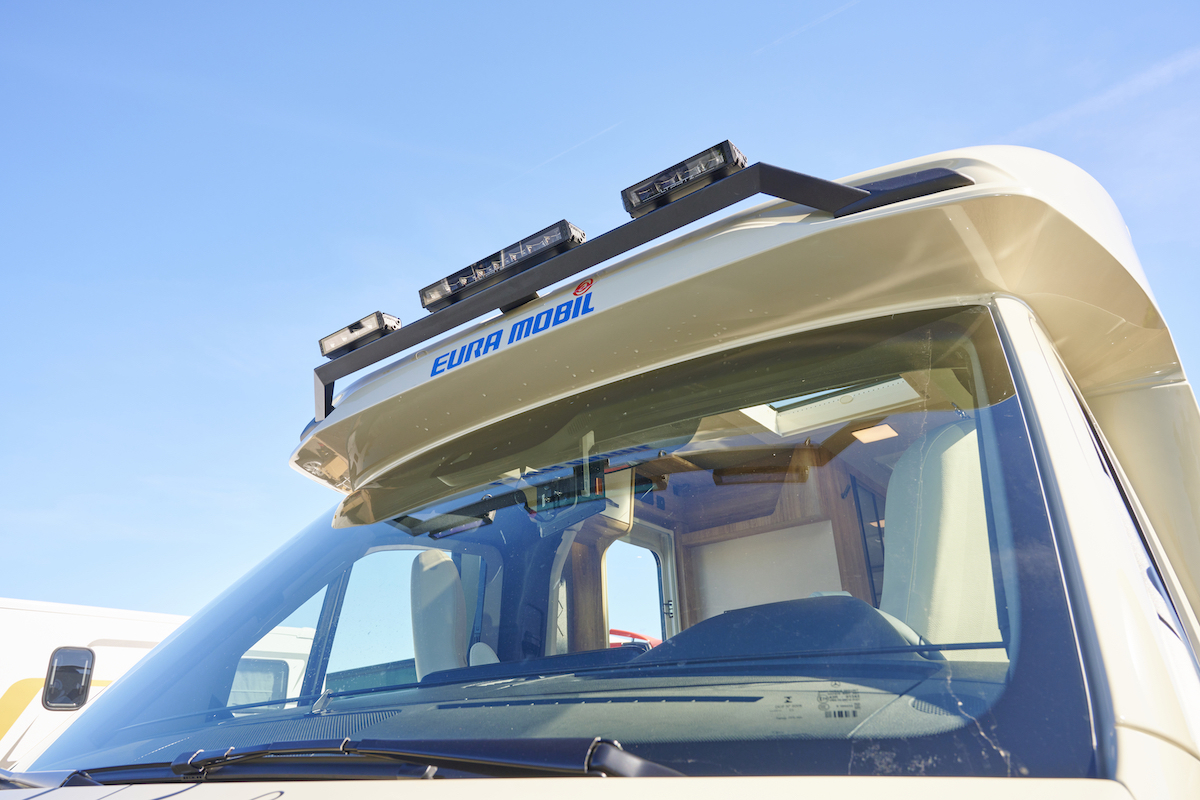

Roof rack with solar modules and ambient lighting
330Ah lithium battery with charge booster

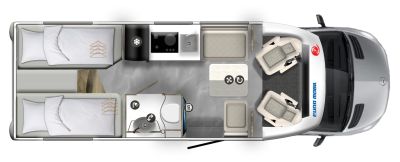

Floor plans

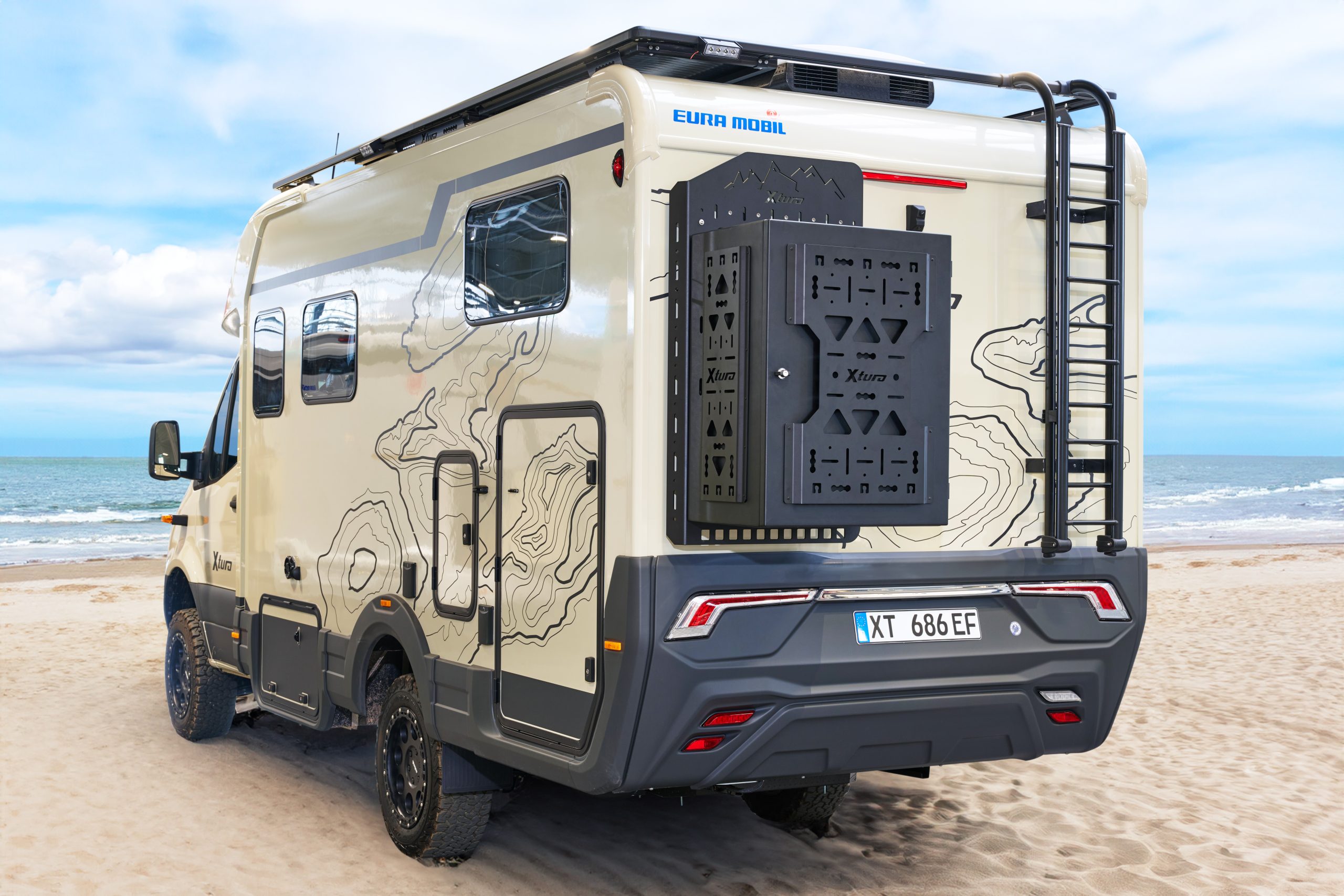

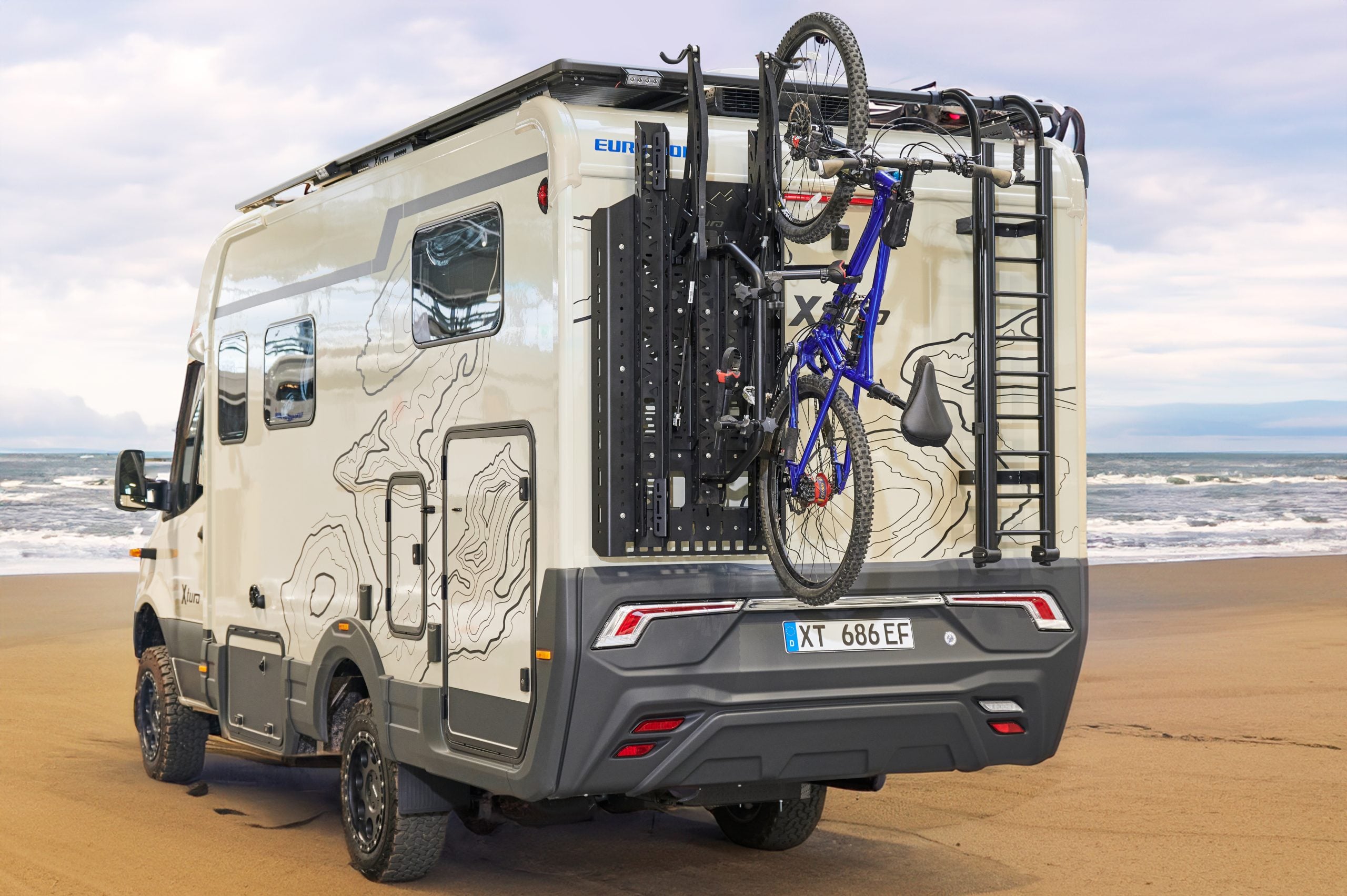

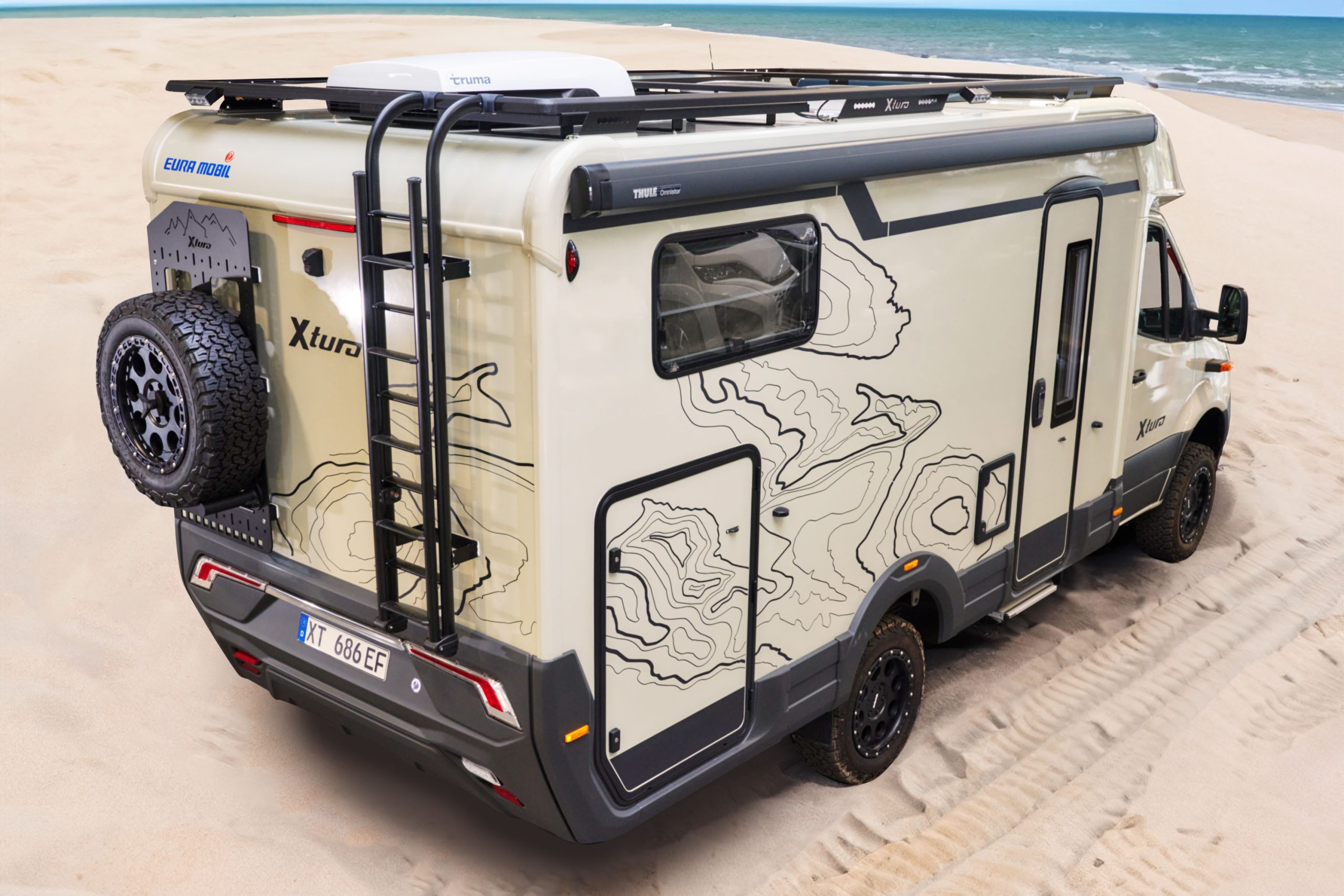

XT 686 EF

Length: 6,88 mSleeping areas: 2

Standard Equipment


Mercedes Sprinter
Sequential all-wheel drive
Manual air conditioning
Frame extension
Driver / passenger airbag
Electric window risers, driver's cab central locking system
Fix & Go breakdown kit
Daytime running light
16" wheels

Driver's cab

GRP hood, insulated, with large storage compartments
Stylish fenders, wide designs
Driver cab seat in structured upholstered fabric


Lightweight construction floor throughout, insulated and heated
Aluminium profile without cold bridges for floor-wall joint
Lightweight construction floor plate with aluminium inlay
Wood-free GRP walls
PVC floor covering with footstep sound insulation
Roof edge profile made from powder-coated aluminium with joint sealing

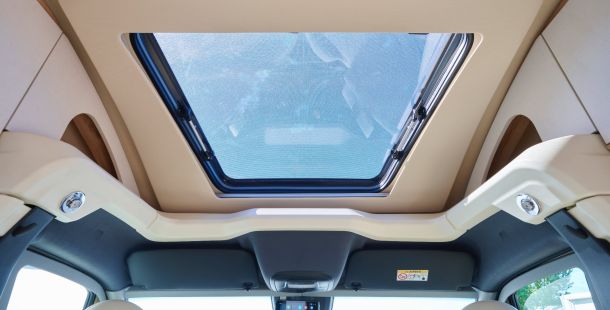

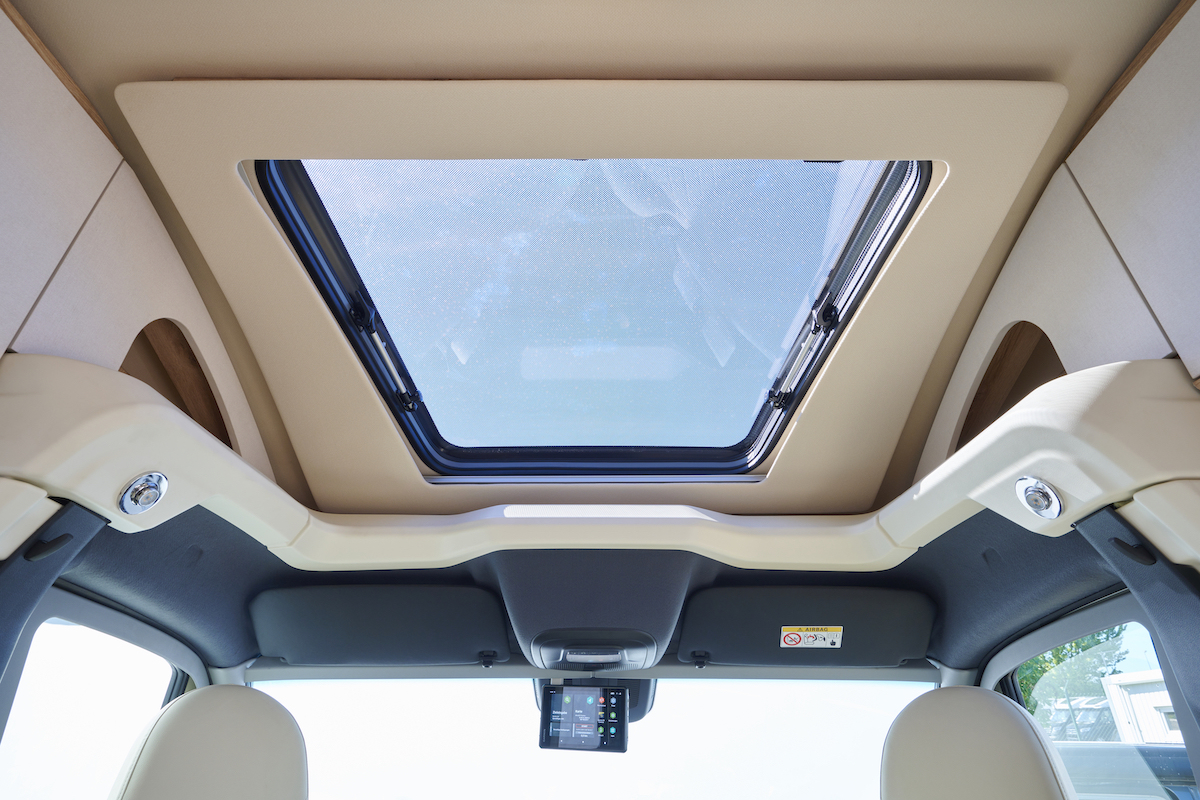

Mini-Heki skylight roof hood over front section
Roof, wall, flooring made from GRP, fully insulated

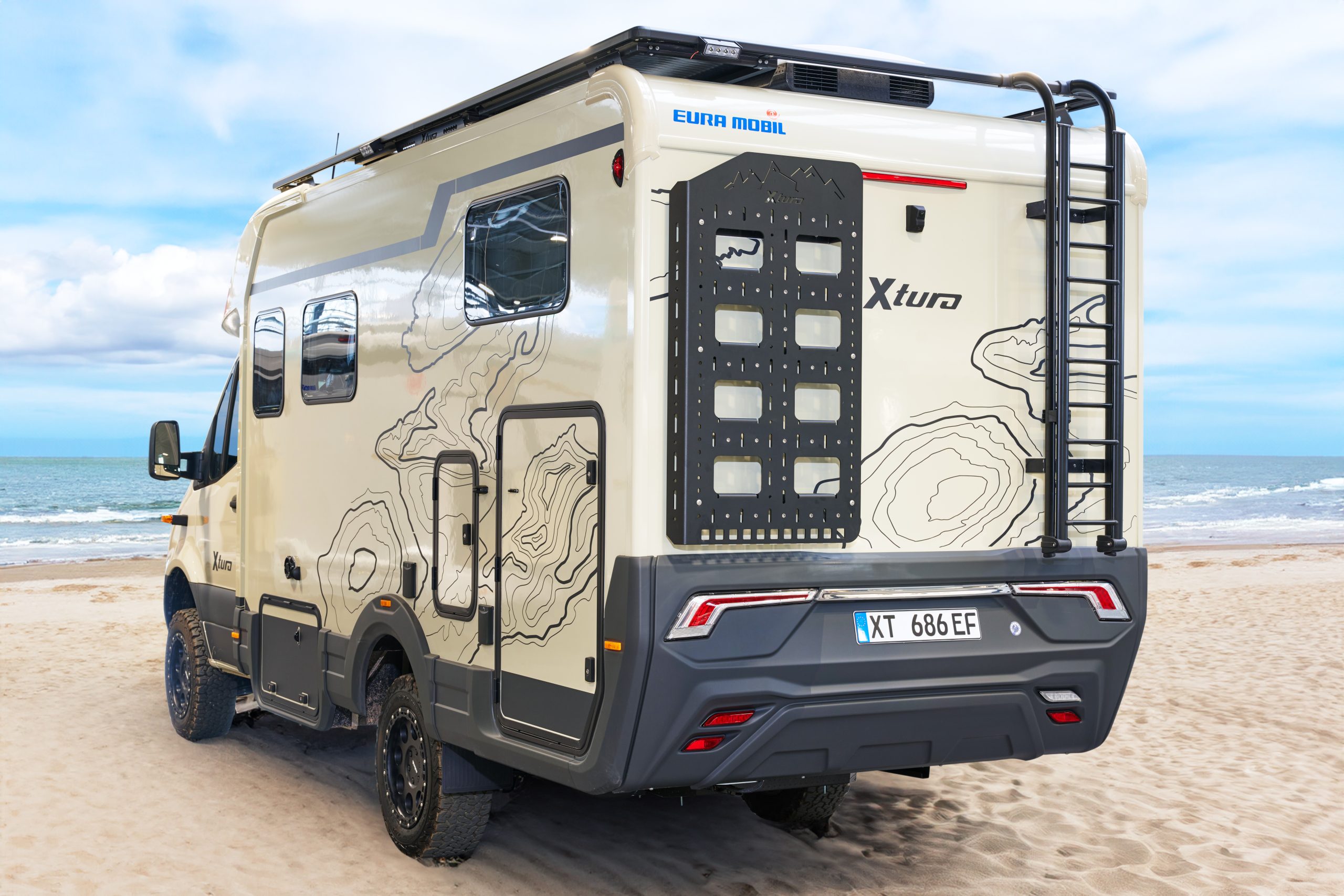

Sloping rear wall for optimised slope angle
Wall thickness – walls/roof/floor: 30/30/85 mm
Isofix, 1 x in driving direction

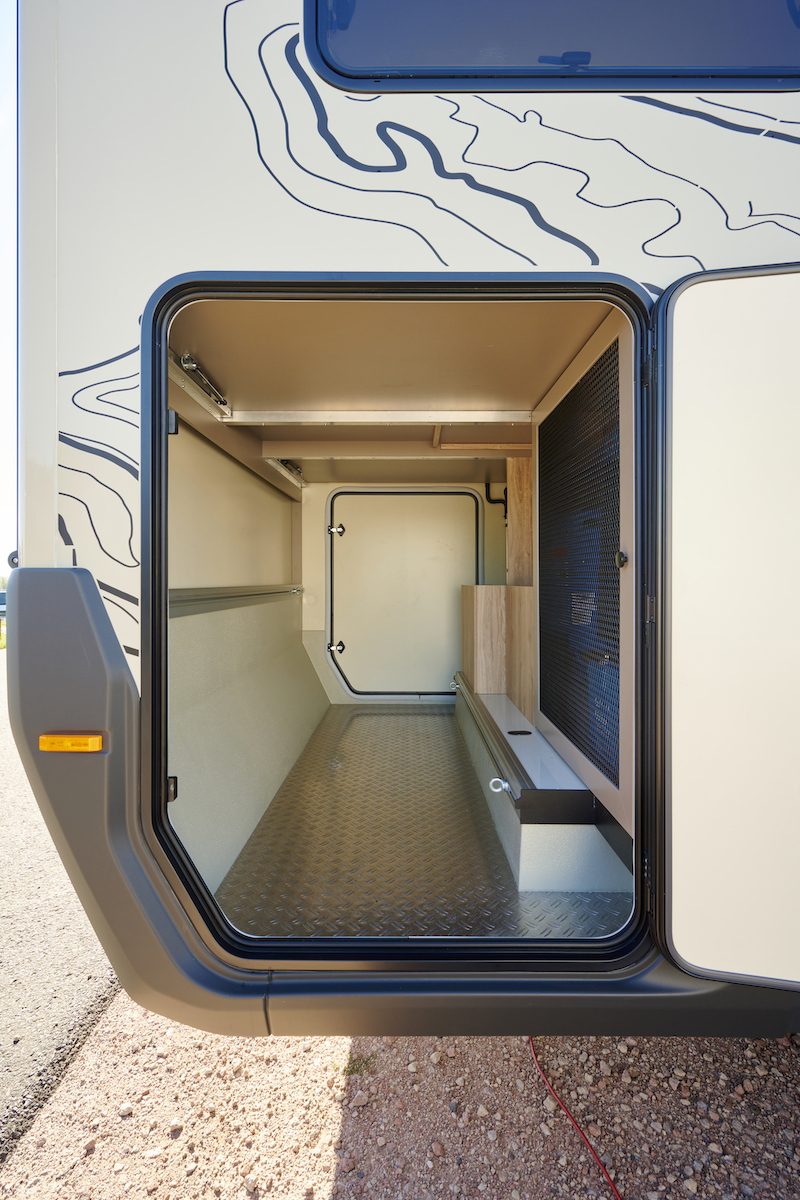

Garage floor with chequer plate
Electric access step
Alde hot water heating
Seitz framed window with mosquito screen flush with the external wall
Service flaps with double seal, insulated inlay and rotary-knob locks
Single key for entire superstructure
Large LED rear lights in Integra line design
Additional, lowered side and floor storage compartments (depending on floor plan)
Exterior lighting over the superstructure door
Extra-wide superstructure door with window and waste bin
Double-moulded GRP sandwich roof
Garage lowering system with insulated well

Living environment

"Chalet Rustico" interior

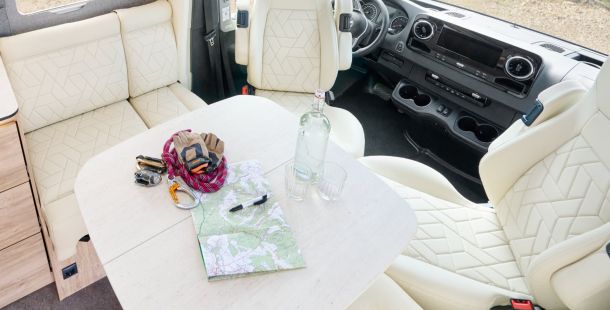

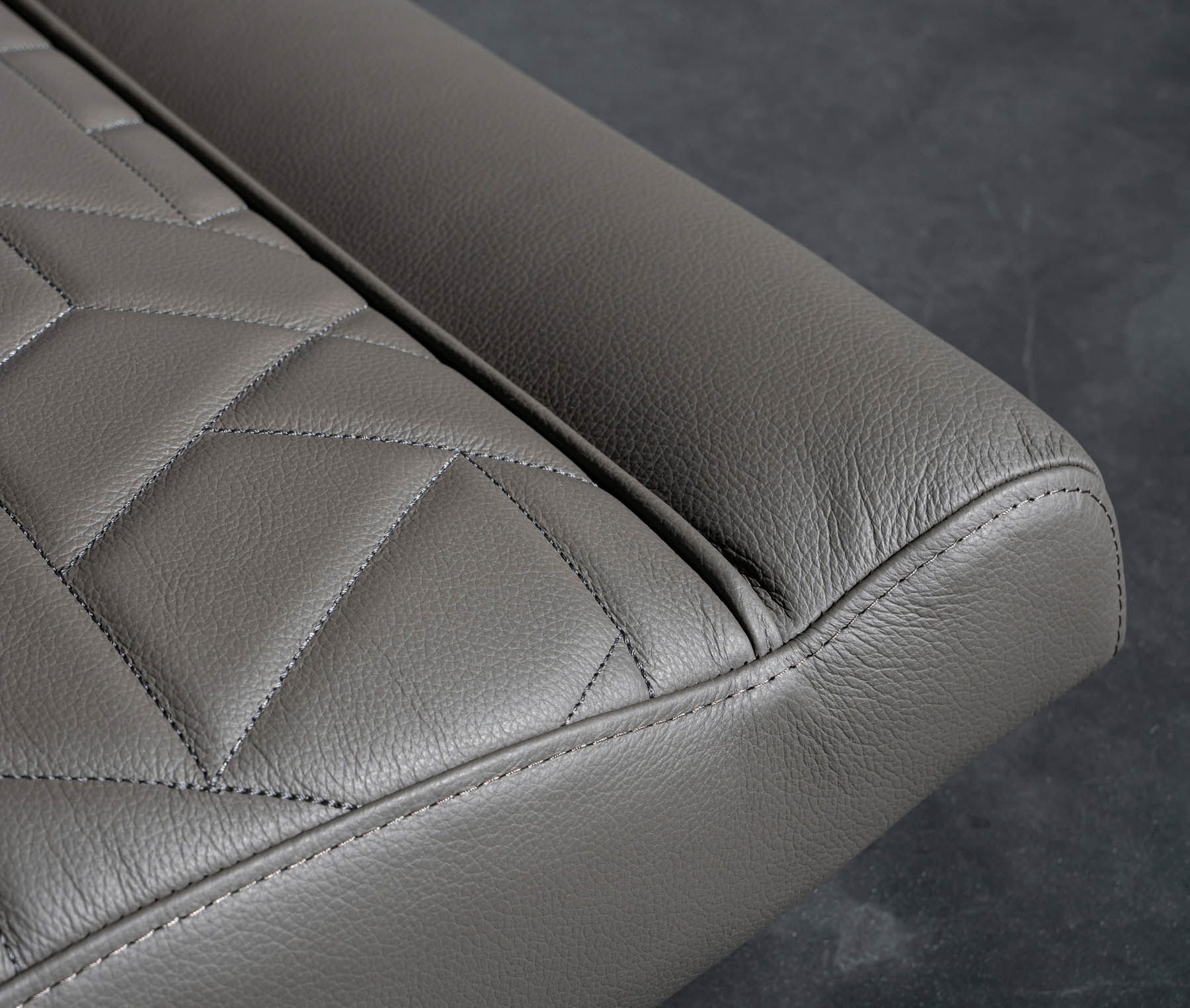

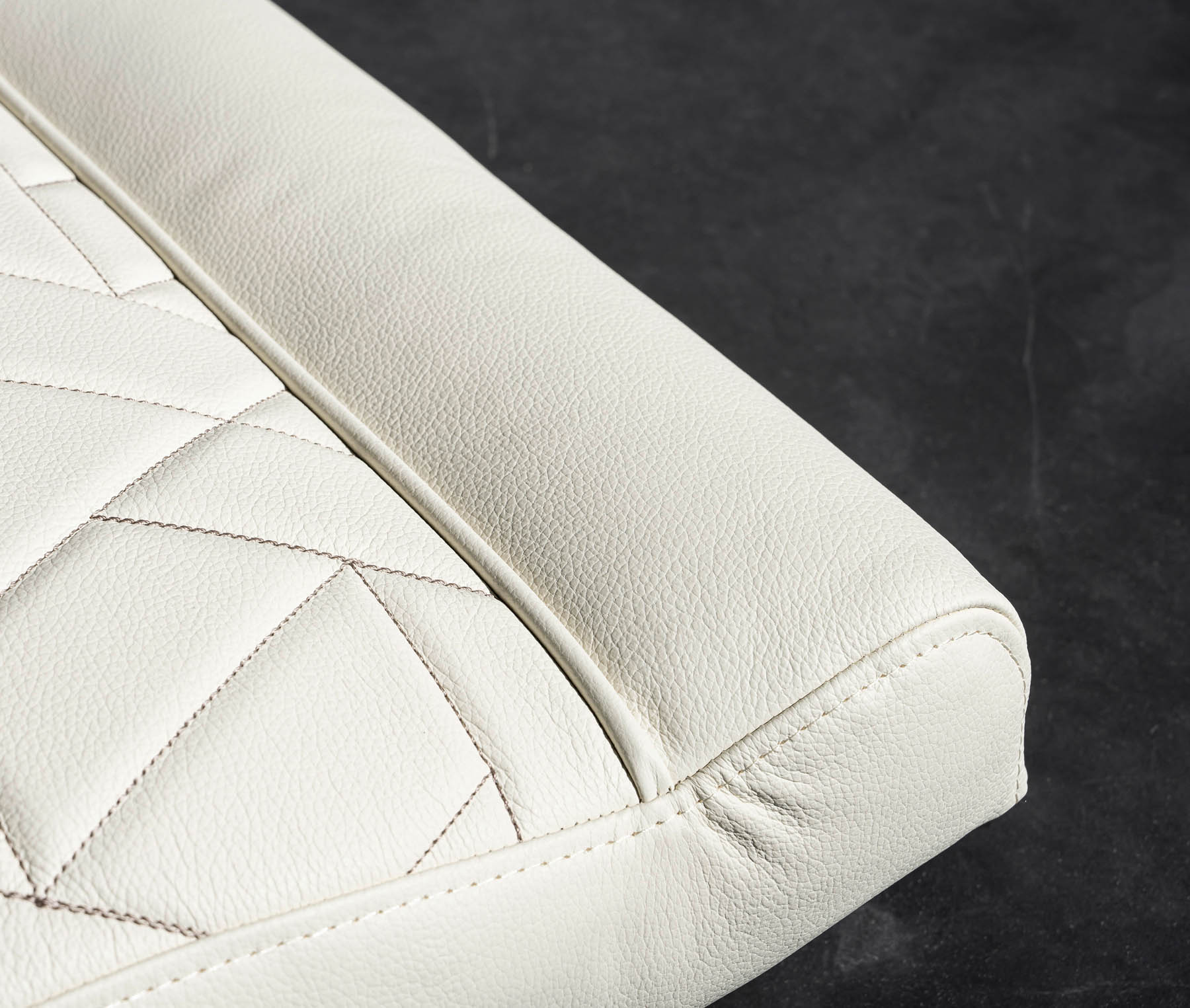

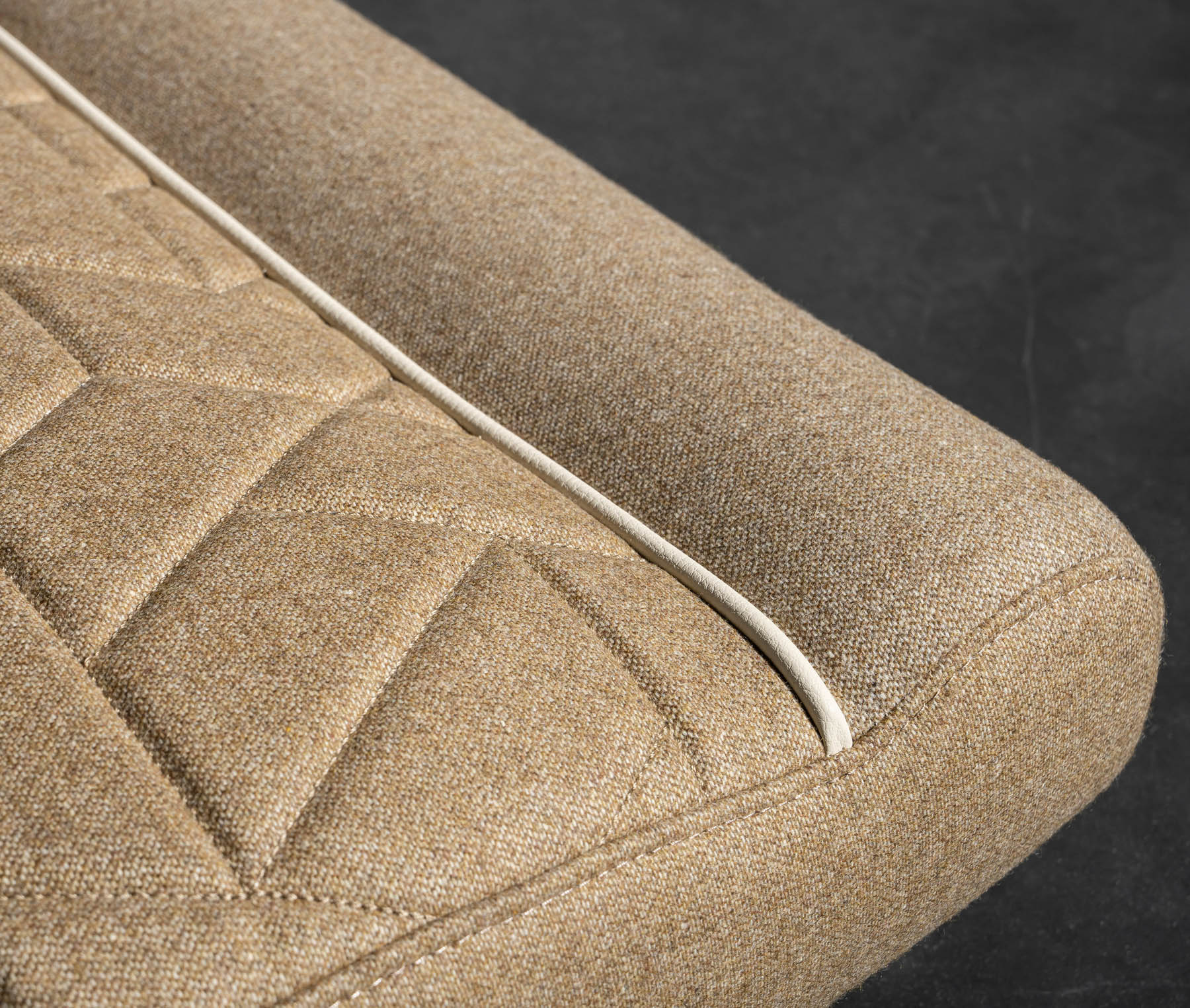

Upholstery design: Trail
Sofa with longitudinal seat on passenger side
Table with 360° turning and sliding fixture, folding
Two-tone furniture décor
Wall unit doors with pressurised spring closures
Entrance area with illuminated handle
Rear storage compartments with anchor rails

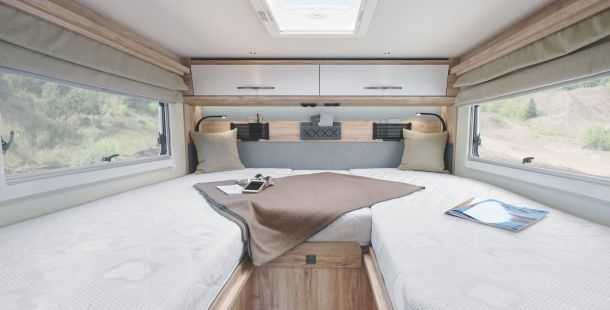

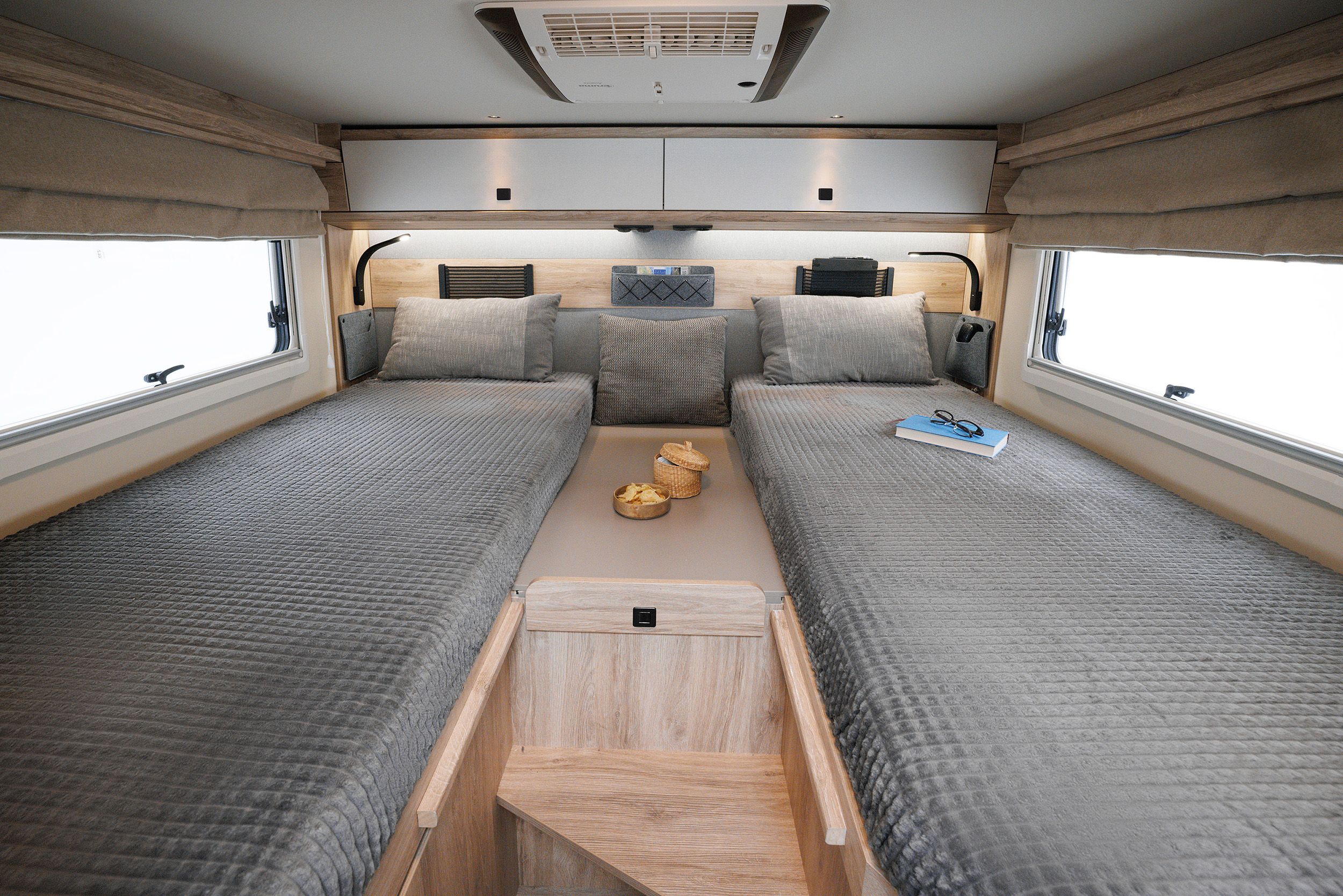

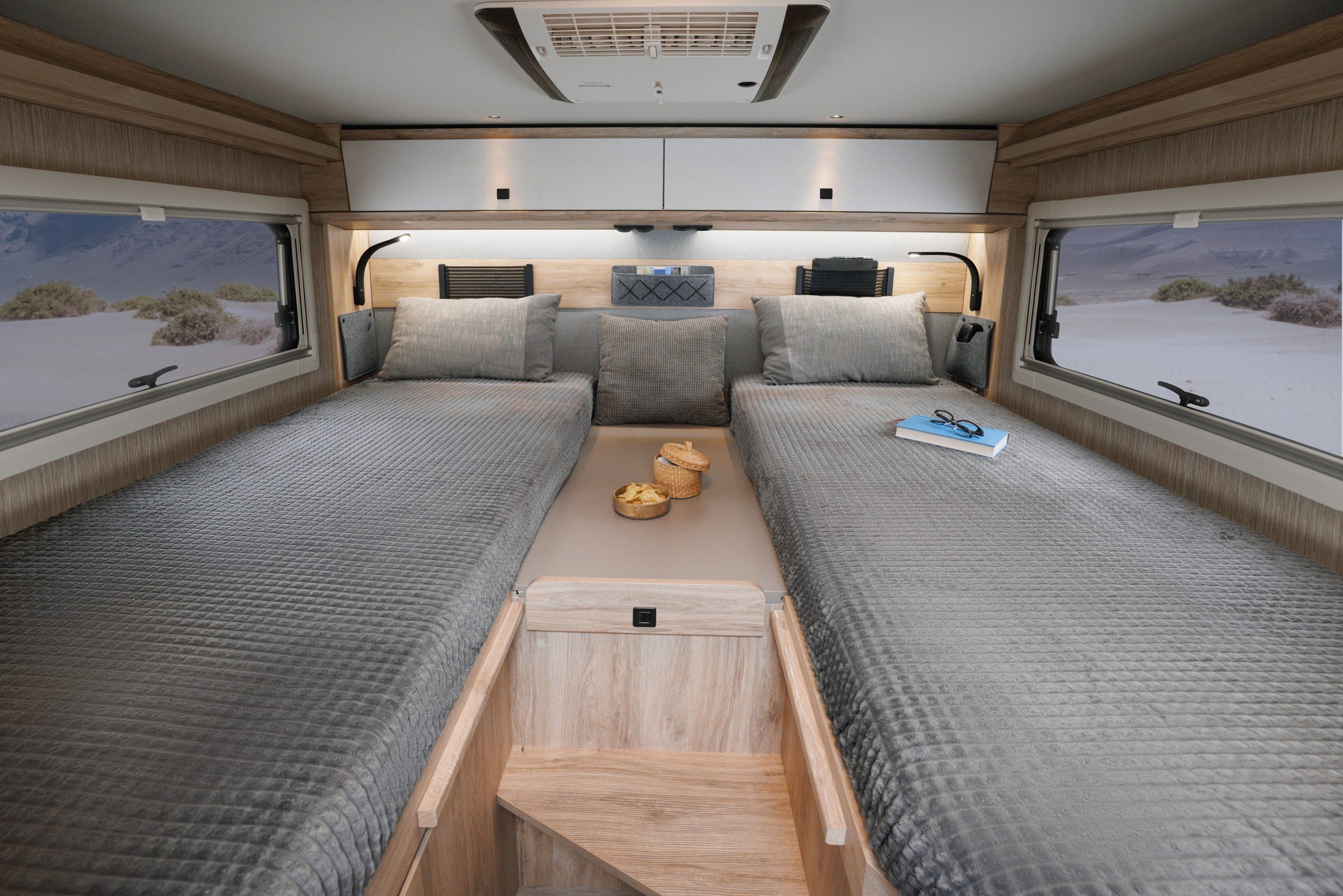

Single beds with 7-zone cold foam mattresses

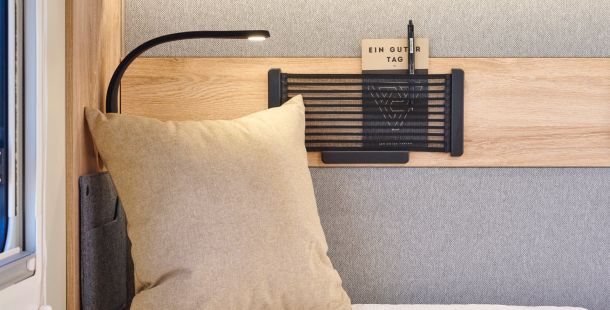

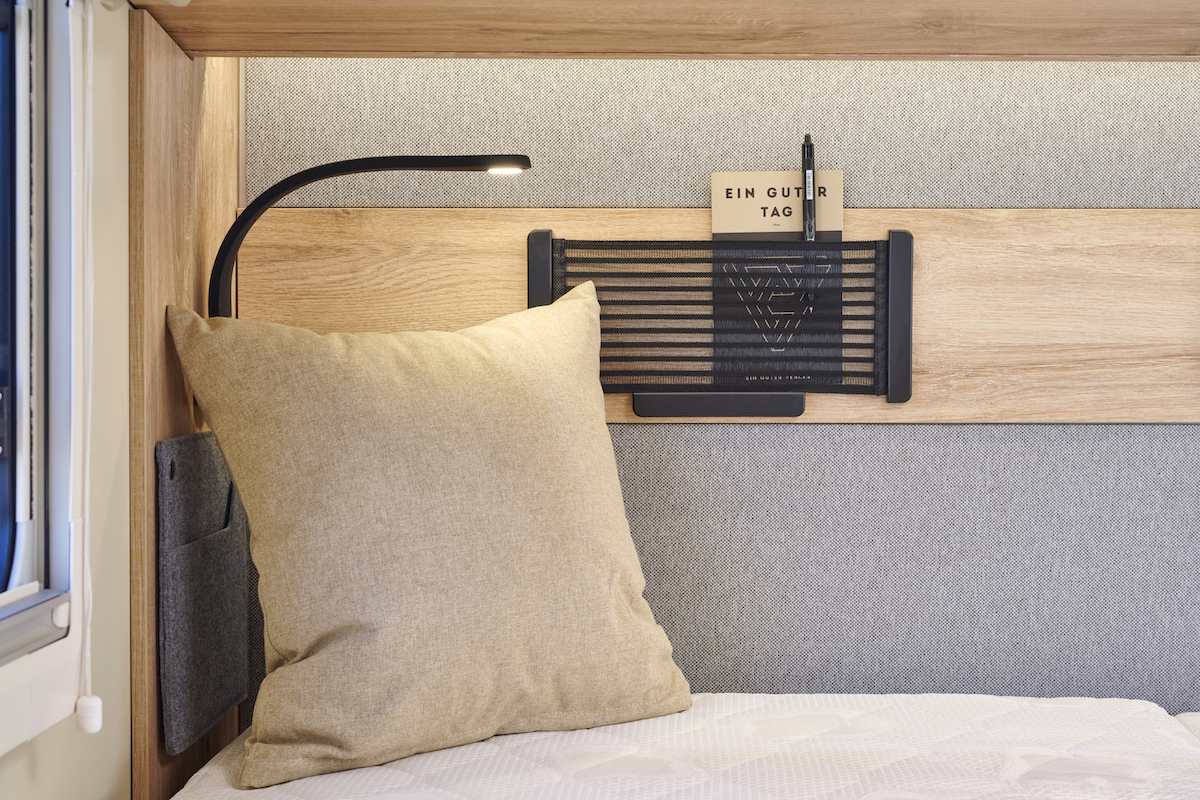

Swan neck lamps with USB ports in the sleeping area
Living environment with decorative elements
Mini-Heki skylight over rear bed

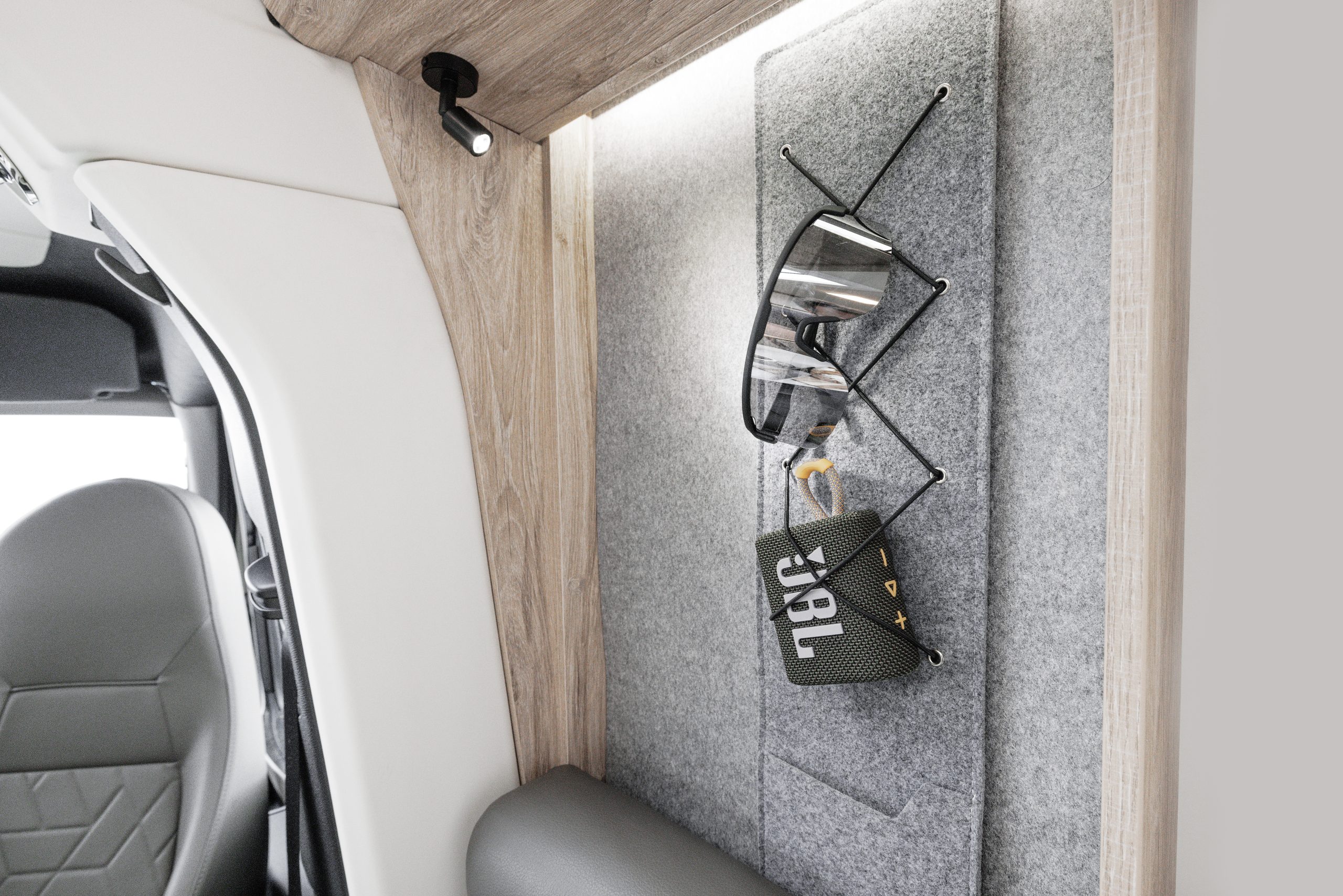

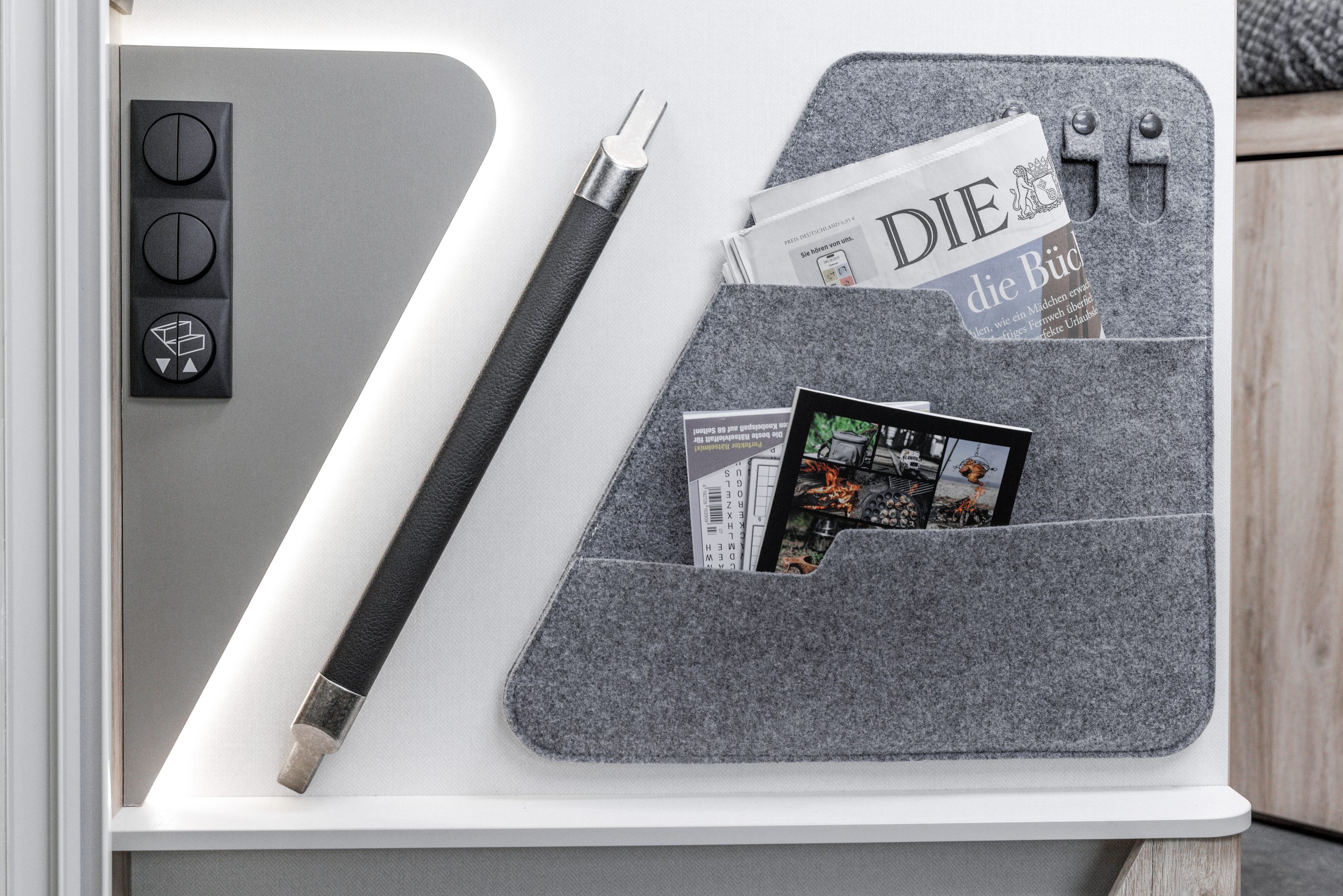

Felt wall pockets
Felt-look window shades
Headboard with shelf

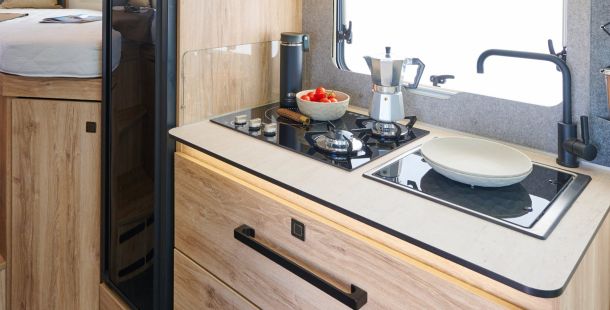

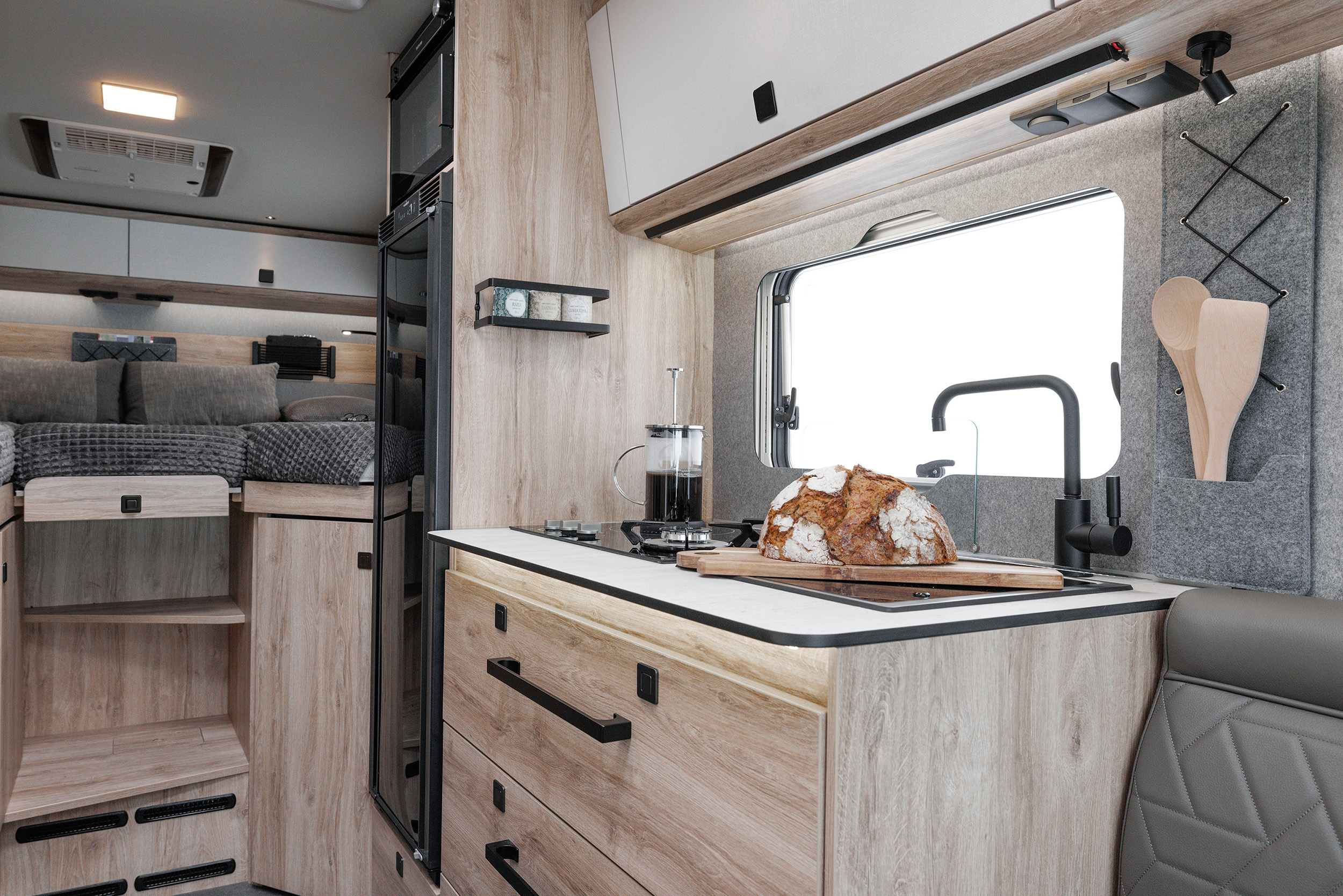

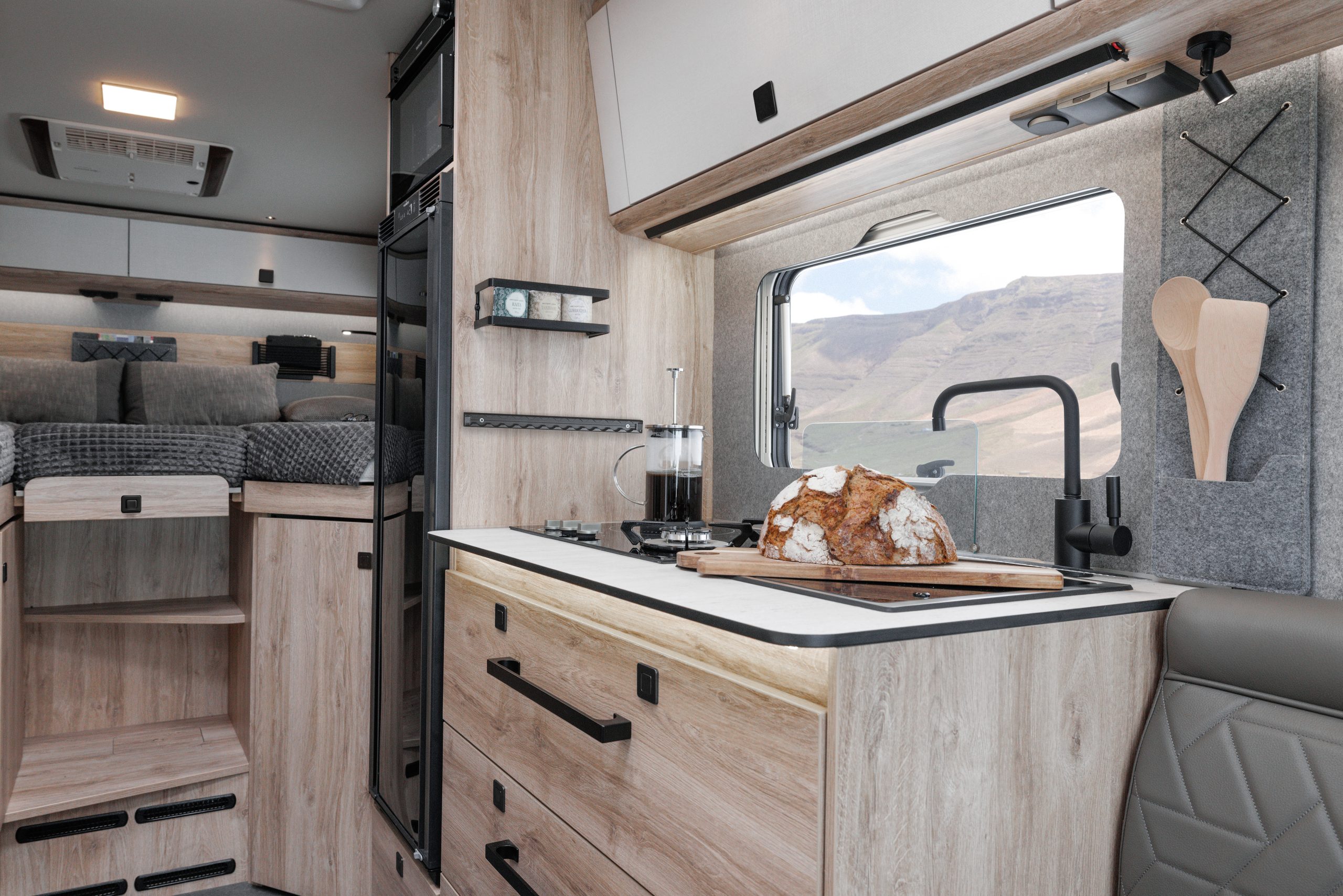

Kitchen with ergonomically shaped worktop
146-l refrigerator

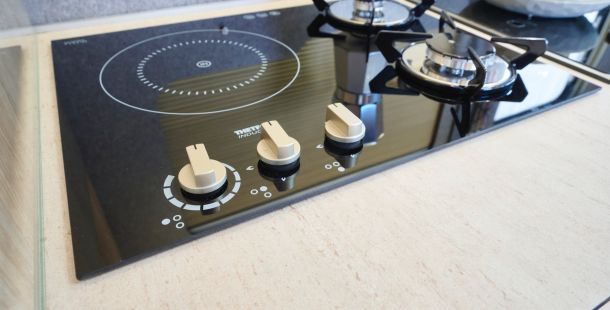

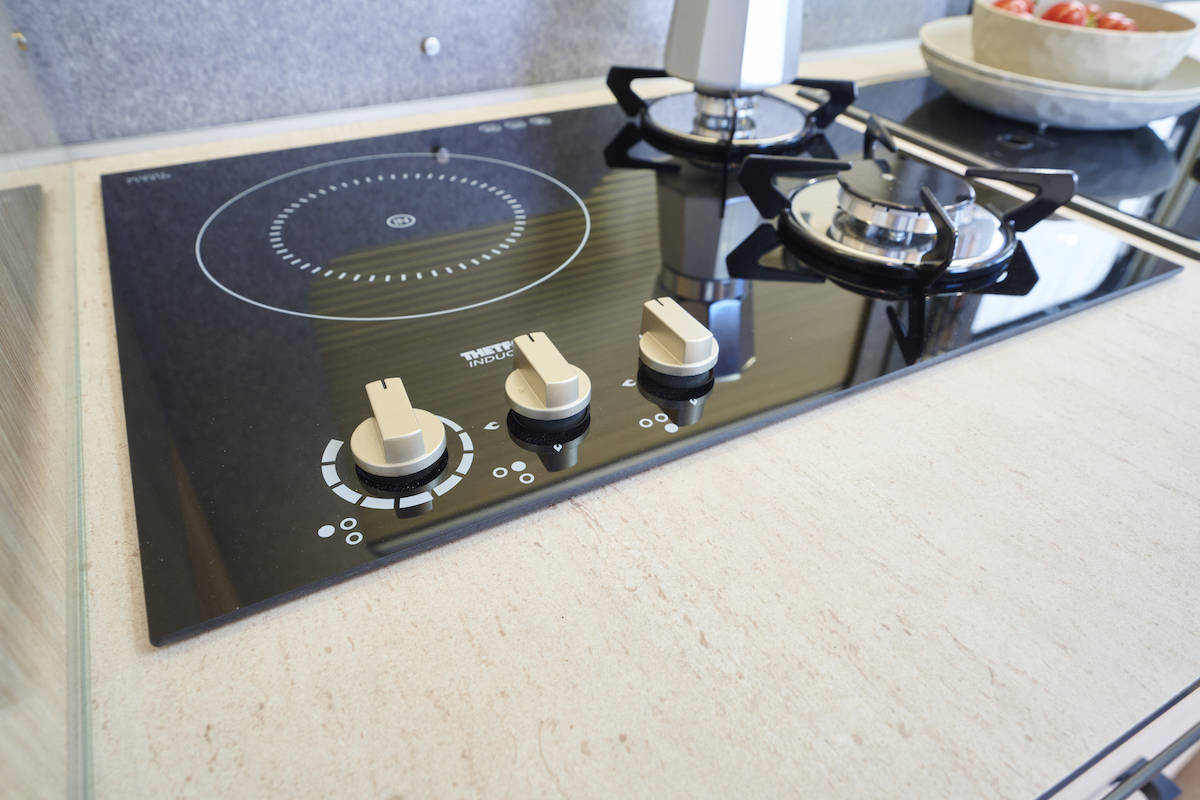

Hob with electric ignition, large work surface, number of gas/induction hobs

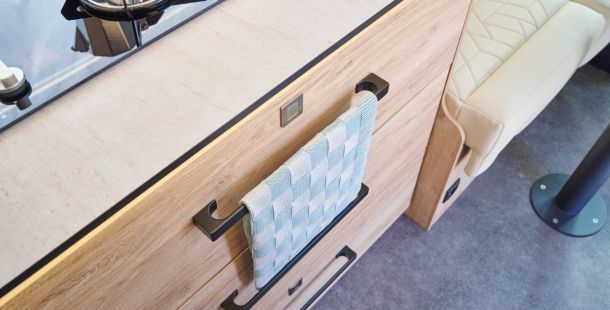

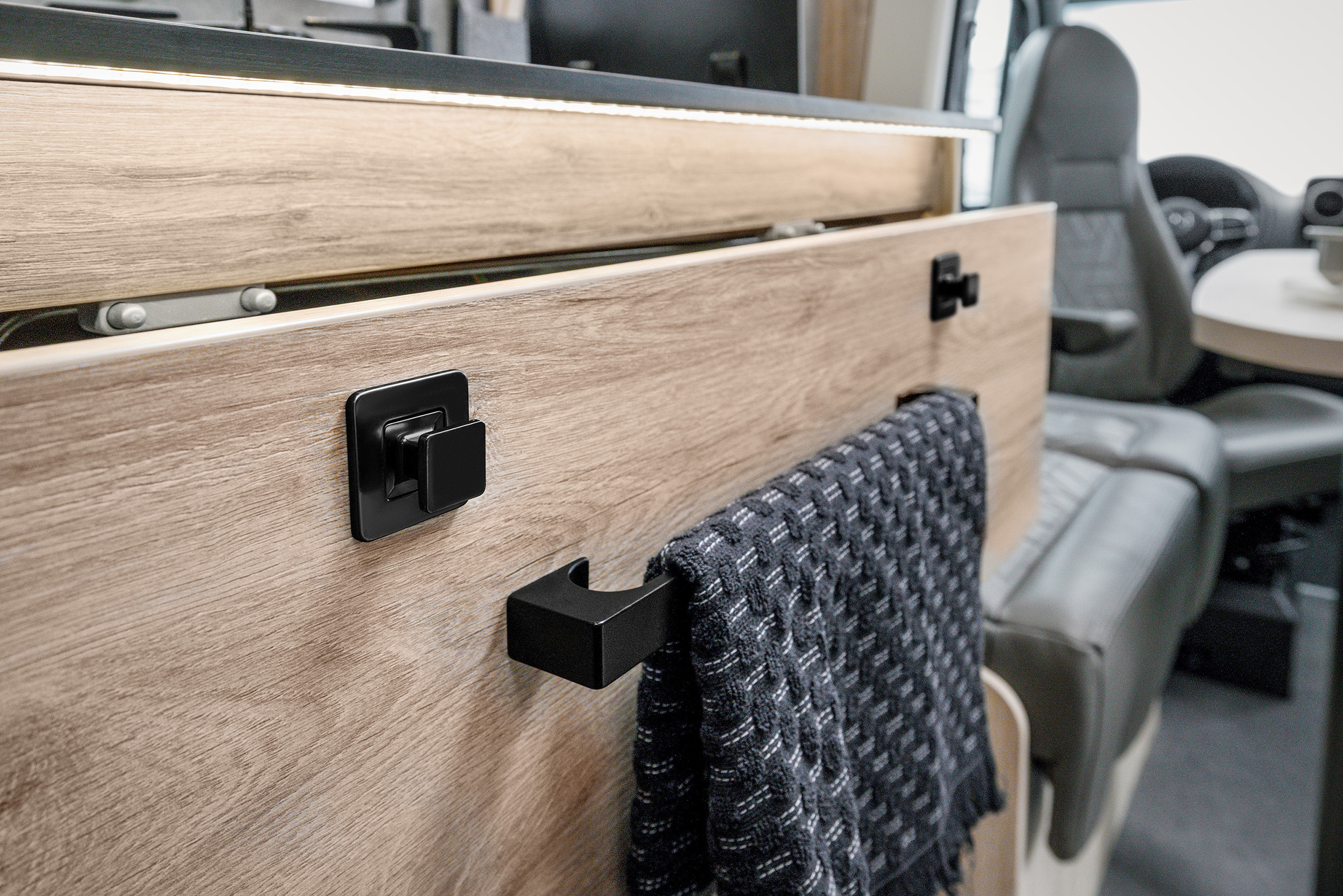

Pull-outs with self-closing mechanism and soft stop, metal roller runners
Divided deep wall units with slide guards
Extra-wide drawer
Colour-accentuated wall units
Spice board
Compressor refrigerator
Water tap with rotating non-drip outlet
Worktop with indirect illumination for pull-outs

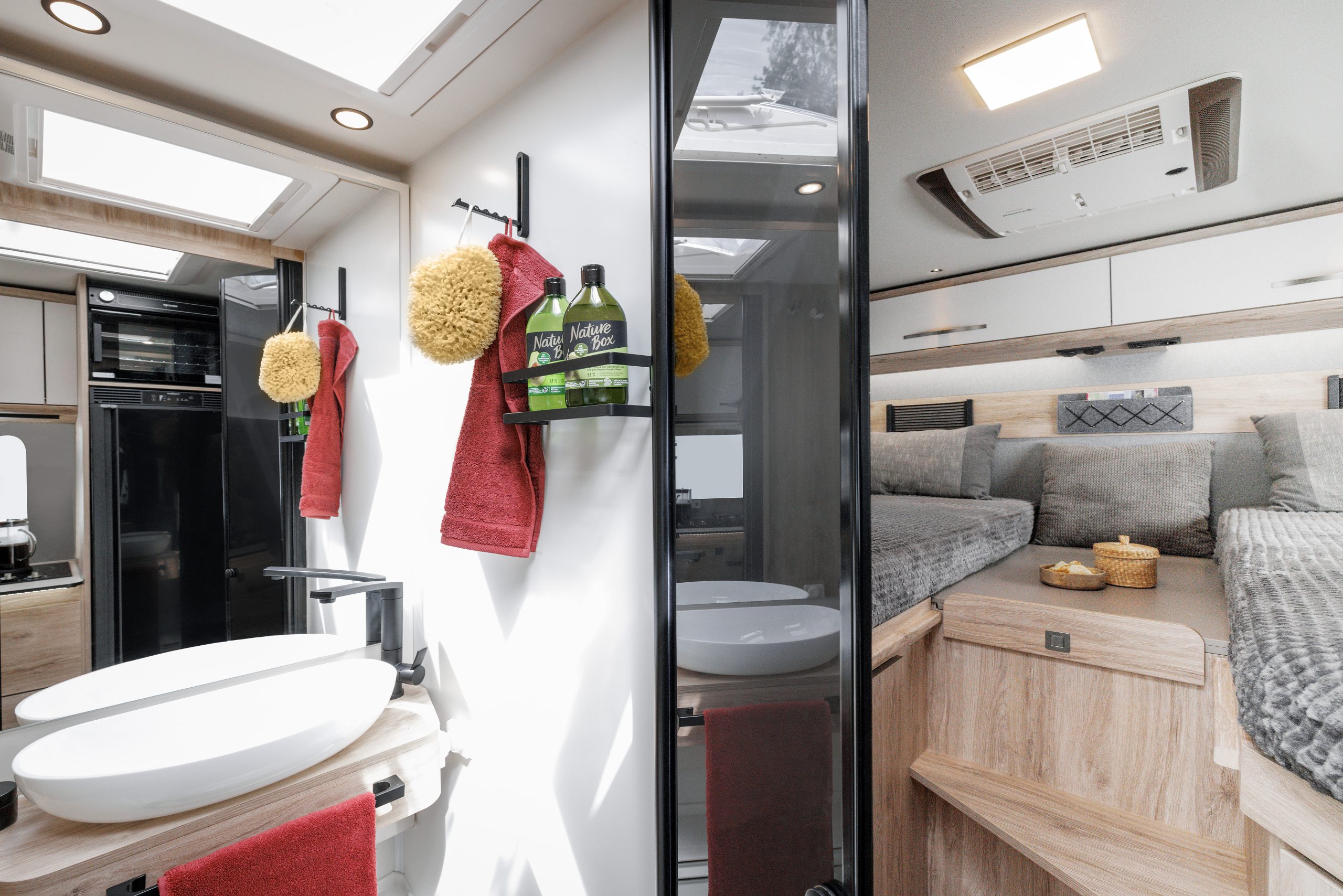

Centre washroom with swivel wall for integrated shower room
Storage closet and mirror
Large roller-mounted tank for cassette WC
230 V power socket
Bench toilet

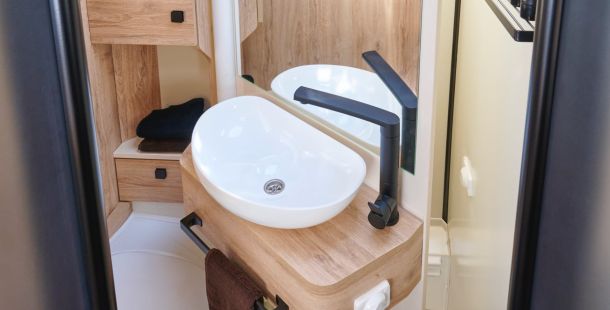

Swivel washbasin

Water installation

Fresh water system made from Hartflex plastic
Fixed pipe system for waste water
145 l insulated and heated fresh water tank

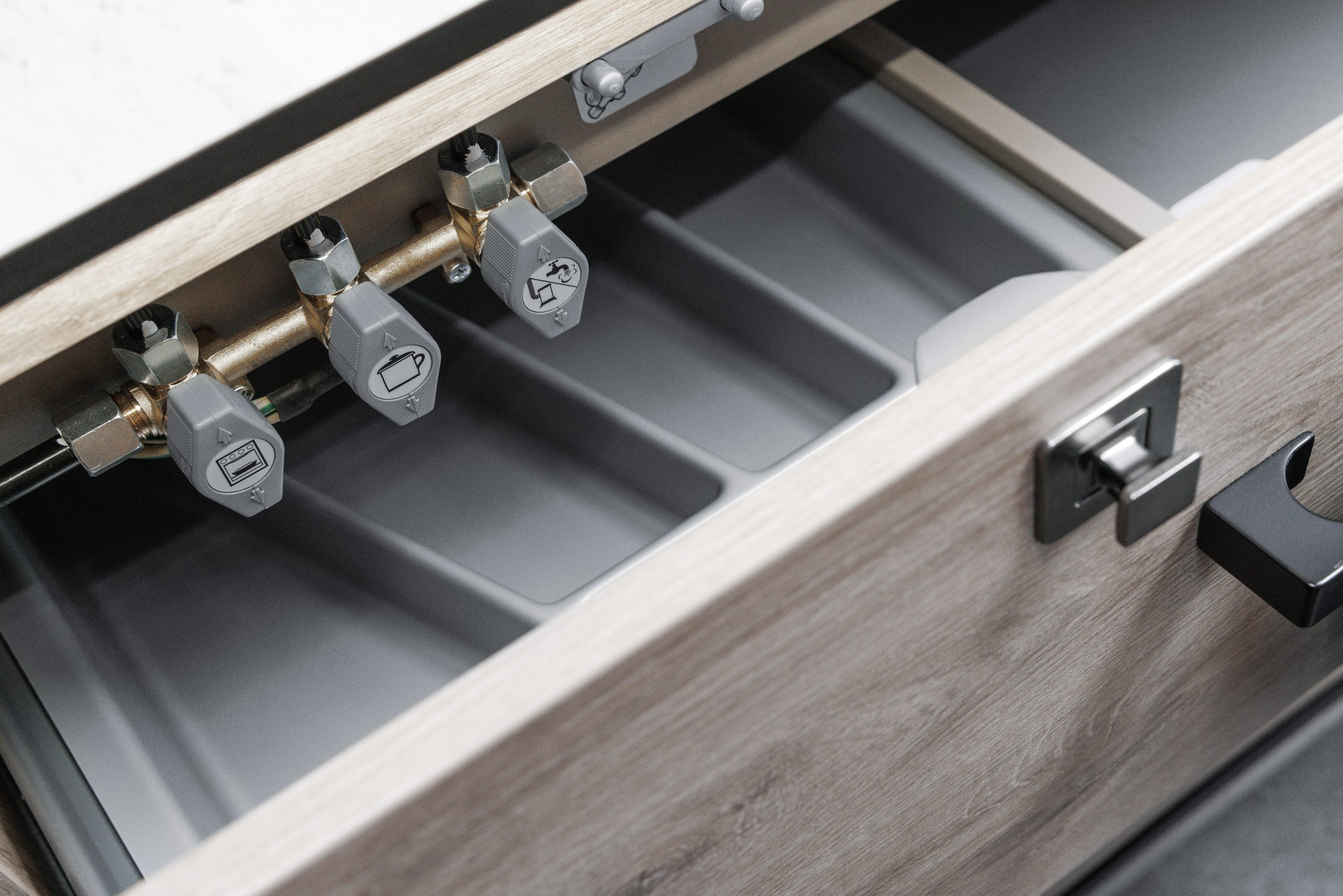

Central service compartment with access to the water drainage taps
105 l waste water tank in insulated and heated floor trough
Electrically operated waste water tank emptying at the push of a button
Fittings with ceramic cartridges
Siphons to prevent odours
Pressurised water pump
2 drainage valves for fresh water system
Drain valves insulated and heated

Electrical installation

Easily accessible electrical distributor panel in the garage
330 Ah lithium battery
On-board control panel with separate displays for water, battery and charging voltage
LED reading spotlights
Light switch system with household logic system
Number of 230 V power sockets: 3

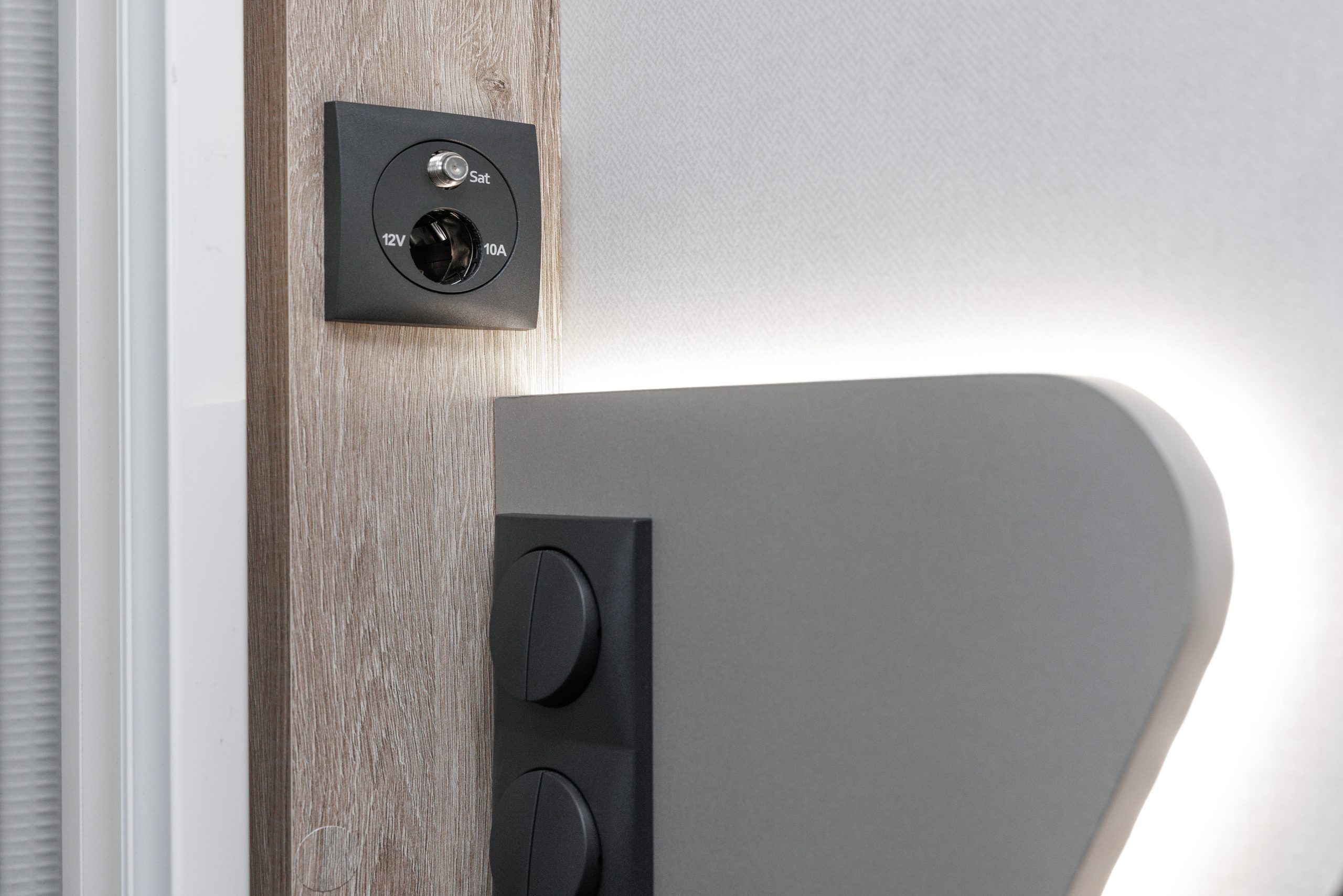

Number of 12 V power sockets: 1
Number of USB ports: 3
120 A charger
LED ambient lighting

Configure your motorhome

Choose one of our models and modify it to your individual preferences.
