Integra Line

An exterior worthy of applause

Model range Integra Line

Free time deserves to be enjoyed.Integra Line A-Class motorhomes

Simply imagine yourself far away – or simply drive there yourself! You can enjoy this freedom whichever way you like it thanks to the Integra Line: the motor home for everyone who likes to go their own way and enjoy the natural diversity of the landscape. For everyone who loves exceptional design, especially when it comes from natural shapes. And for everyone who wants to turn their dream of feeling free into reality. The vehicle blends in perfectly with its natural surroundings and yet grants every imaginable wish in terms of luxury and comfort.

Highlights:

  • Winterproof, heated double floor
  • Insulated and heated water tanks
  • Electric waste water tank drainage
  • Optional with Alde warm water heating
  • Total height below 2.90 m
  • Isofix (depending on floor plan)
Integra Line Baureihe Innenaufnahme
3-ring hob with electric ignition, glass cover and large work surface

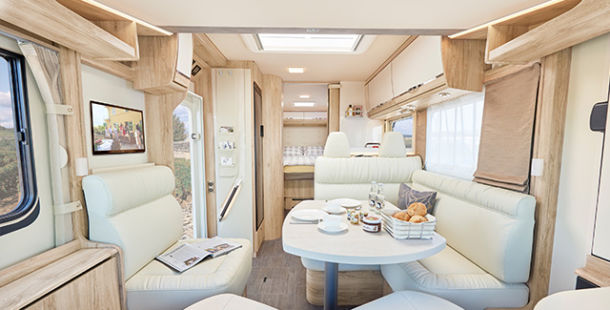

Interior „Chalet“
Table with 360° turning and sliding fixture
Living space with decorative elements (and wall pockets)

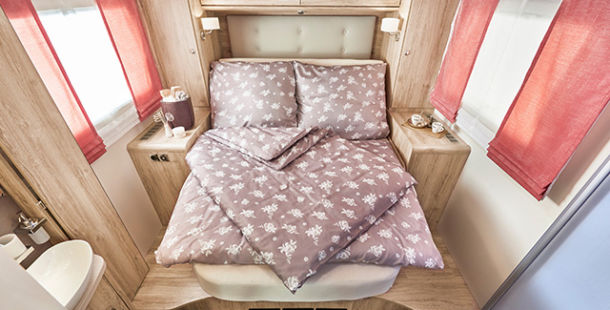

7-zone cold foam mattresses
Noise insulation for wall unit doors
Warm air circulation in double floor for underfloor heating effect

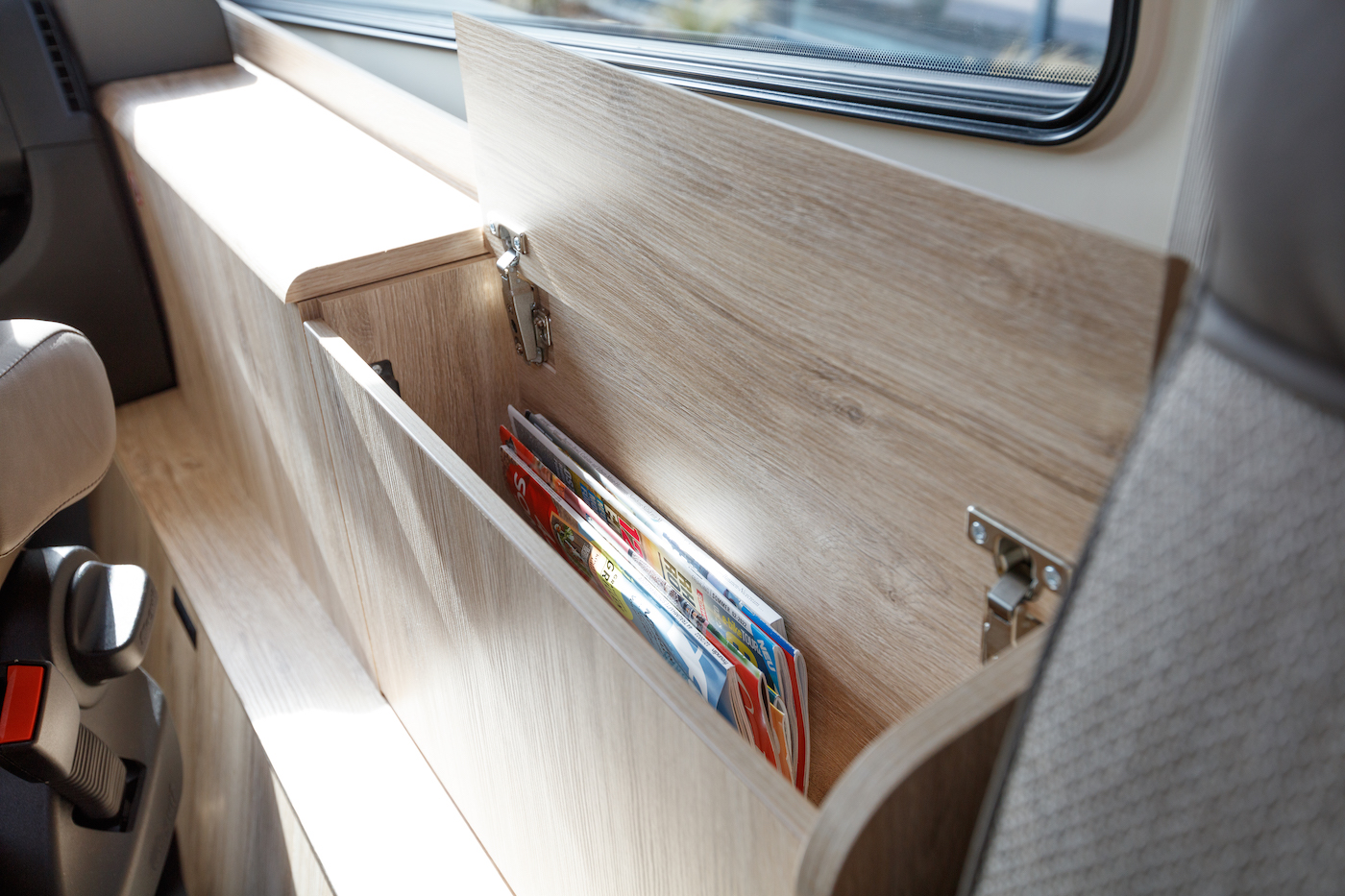

Map compartment with handy flap cover on the passenger side
Pilot’s seats with arm rests and integrated seatbelts

Floor plans

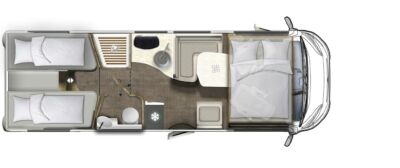

IL 720 EB

Length: 7,41 mSleeping areas: 4

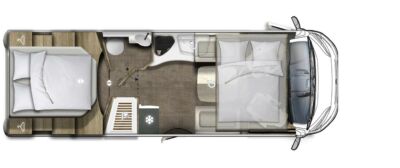

IL 720 QF

Length: 7,58 mSleeping areas: 4

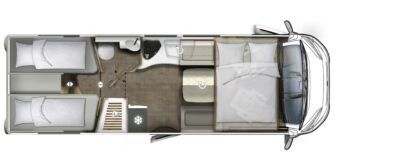

IL 720 EF

Length: 7,41 mSleeping areas: 4

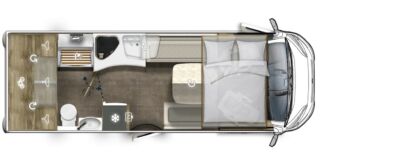

IL 695 LF

Length: 6,99 mSleeping areas: 4

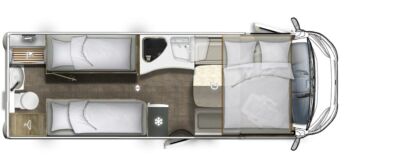

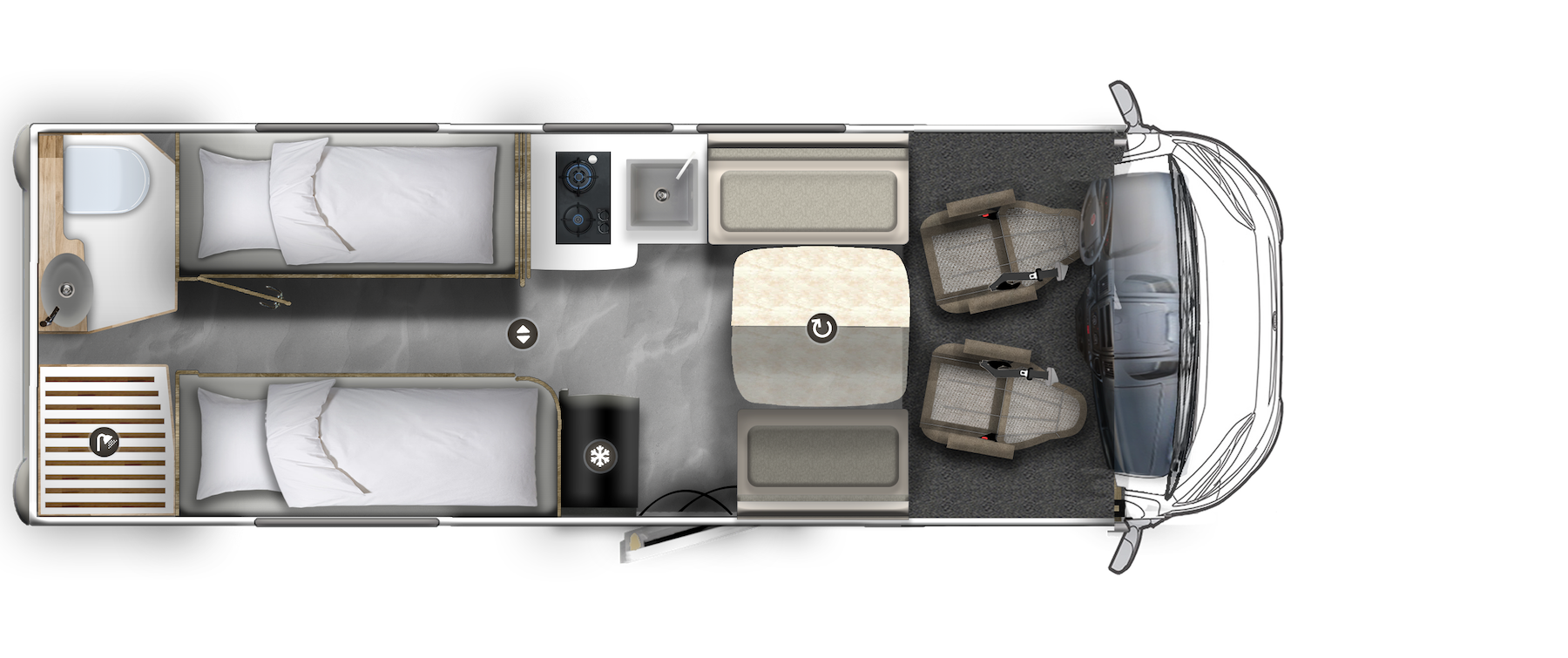

IL 730 EF

Length: 7,58 mSleeping areas: 4

Standard Equipment

Chassis

140 HP engine, Euro 6d-Final
CCS wide track low-slung frame (1,980 mm gauge) with frame extension
ABS
Driver / passenger airbag
Manual air conditioning
ESP including Traction+ and hill descent control
Cruise control
16" wheels
Fix & Go breakdown kit
Daytime running light
LED tail lights

Driver's Cab

Driver’s cab seat in structured upholstered fabric
Front mask made from moulded GRP piece
Exclusive lamp unit with integrated indicator
Panoramic windscreen (for wide field of vision)
Eura Mobil „Short Cabin“
Short front section with integrated original Fiat crash protection
Short dashboard with wide viewing angle to the front
Wide-opening, narrow bonnet with direct access to windscreen wash and oil top-up nozzles
Electrically adjustable bus mirrors, heated
Lift-up bed with 78 cm seat height
Storage closets under the lift-up bed
Ambient lighting below the lift-up bed
Mini Heki skylight over lift-up bed
Driver’s door with large storage compartments
Electric control panel within easy reach in the covered compartment on the passenger side
Electric window raiser for the driver’s door
Extensive noise insulation
Driver’s cab with automotive design
GRP front mask with headlight housings in RIM technology
Lowered radiator bridge for easy access to the engine compartment
Bonnet with gas spring assistance
Pilot’s seats with arm rests and integrated seatbelts
Driver’s cab door with double locking and central remote locking
Sliding windows for passenger side
Concertina darkening system for driver’s cab
Map compartment with handy flap cover on the passenger side
Reading lights and orientation light in the driver’s cab

Superstructure

Lightweight construction double floor throughout, insulated and heated
Aluminium profile without cold bridges for floor-wall joint
Lightweight construction floor plate with aluminium inlay
Insulated wheel arches
Wood-free GRP walls
Double floor GRP-coated
Roof, wall, flooring made from GRP, fully insulated
Wall thickness of walls/roof/floor: 30/30/38 mm
Isofix, 2 x in the direction of travel (only EF / QF models)
Isofix, 1 x in the direction of travel (except EF / QF models)
Roof edge profile made from powder-coated aluminium with joint sealing
Sturdy chassis side skirts made from aluminium
Integrated double access step, insulated
Alde hot water heating
Service flaps with double seal, insulated inlay and self-closing locks
Extra-wide access door with window and waste bin
Wall units with aluminium profile reinforcement
Warm air circulation in double floor for underfloor heating effect
External lighting
Fresh and waste water tank in heated and insulated floor trough
Garage doors on the driver and passenger side

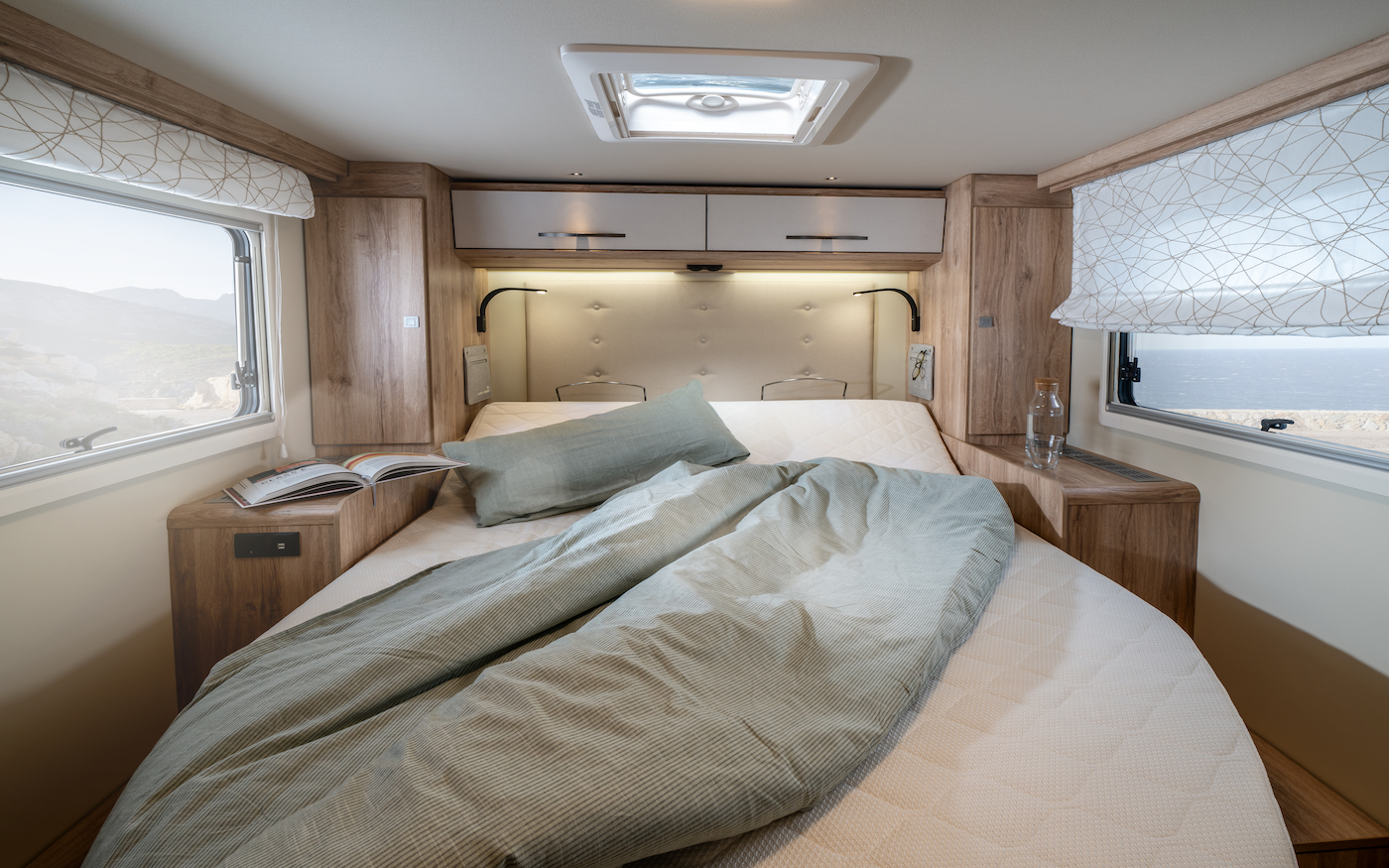

Mini Heki skylight over rear bed
Mini Heki skylight over front section
Insulated Seitz framed window with mesh screen flush with the external wall
Window roller blinds with noise insulation
Garage lowering system with insulated well

Living Space

Interior „Chalet“

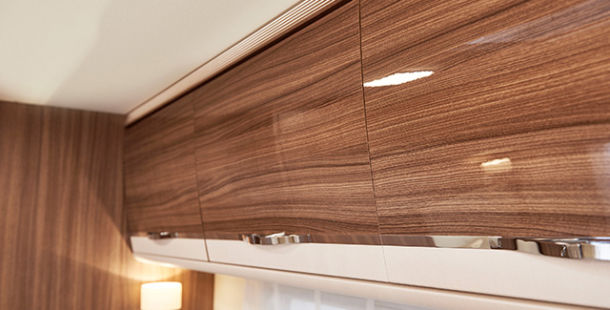

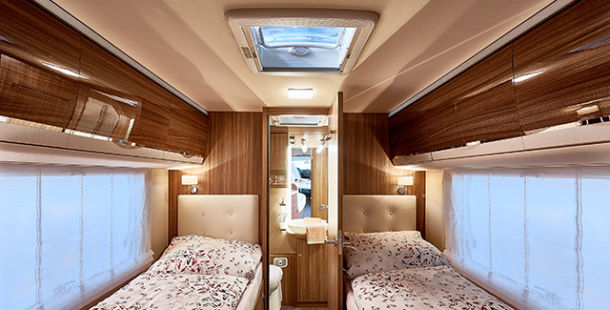

Interior „Navarra“ (option)
Upholstered fabric: Como or Dara
Table with 360° turning and sliding fixture
Living space with decorative elements (and wall pockets)
7-zone cold foam mattresses
Stable bed bases, with underneath ventilation
Noise insulation for wall unit doors

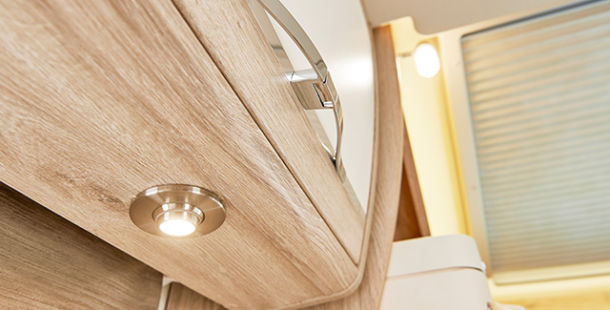

Background lighting
Wall unit profile made from aluminium with integrated stop attenuation for furniture doors
Compartment shelves in the upper floor with access from the interior

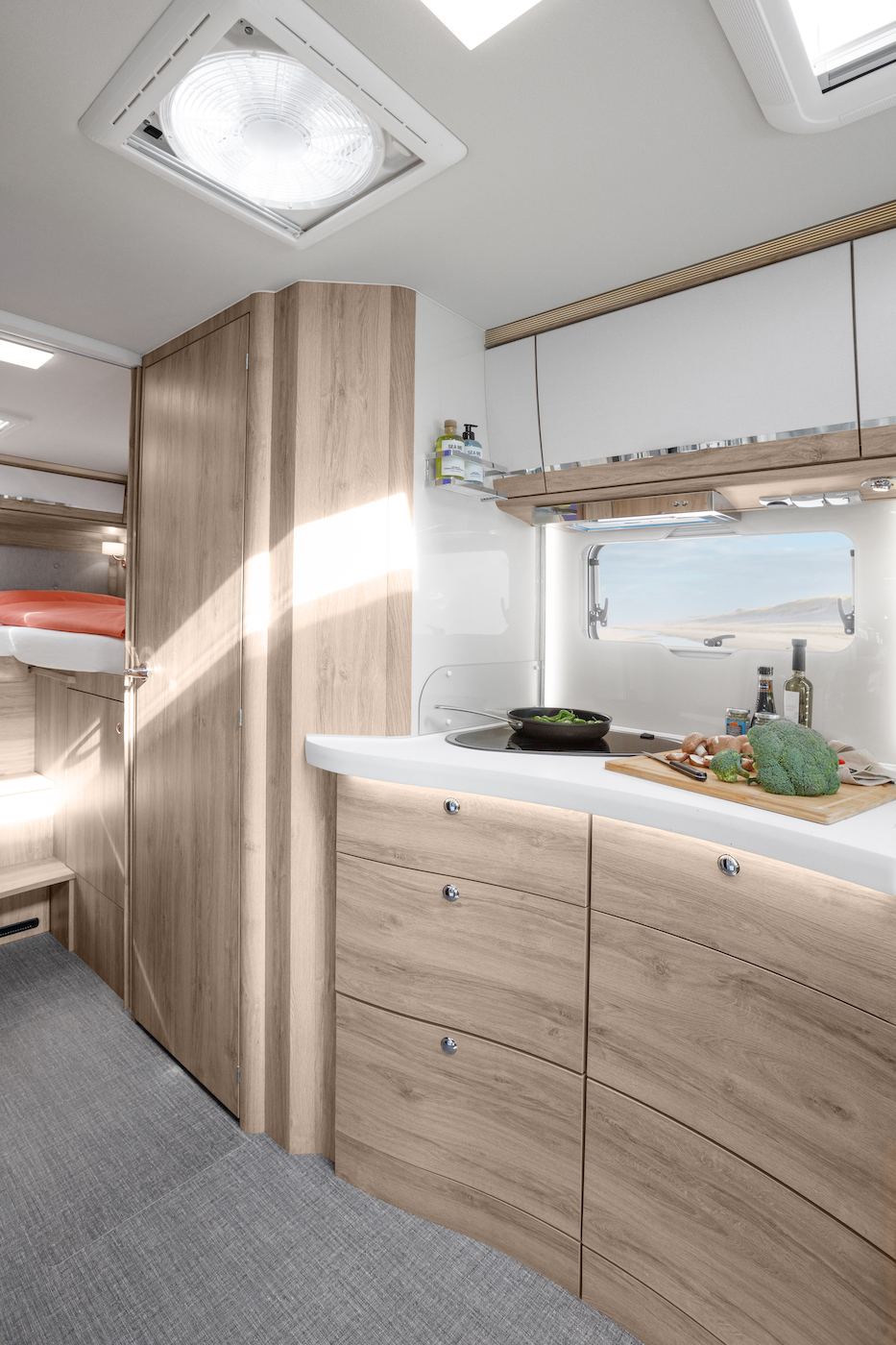

Kitchen

142 l refrigerator
3-ring hob with electric ignition, glass cover and large work surface
Drawers with metal roller runners
Extra-wide drawers with self-closing and soft stop
Water tap with turning non-drip outlet
Ergonomically shaped kitchen block

Washroom

Separate shower on IL 695 LF, IL 720 QF, IL 730 EF, IL 720 EB
Bathroom with separate shower cubicle for IL 720 EF/QF
Variable-use central washroom with A-Class shower and swivel wash basin on the IL 660 EB, IL 695 EB, IL 695 HB
Cassette toilet with large roller-mounted tank
230 V power socket

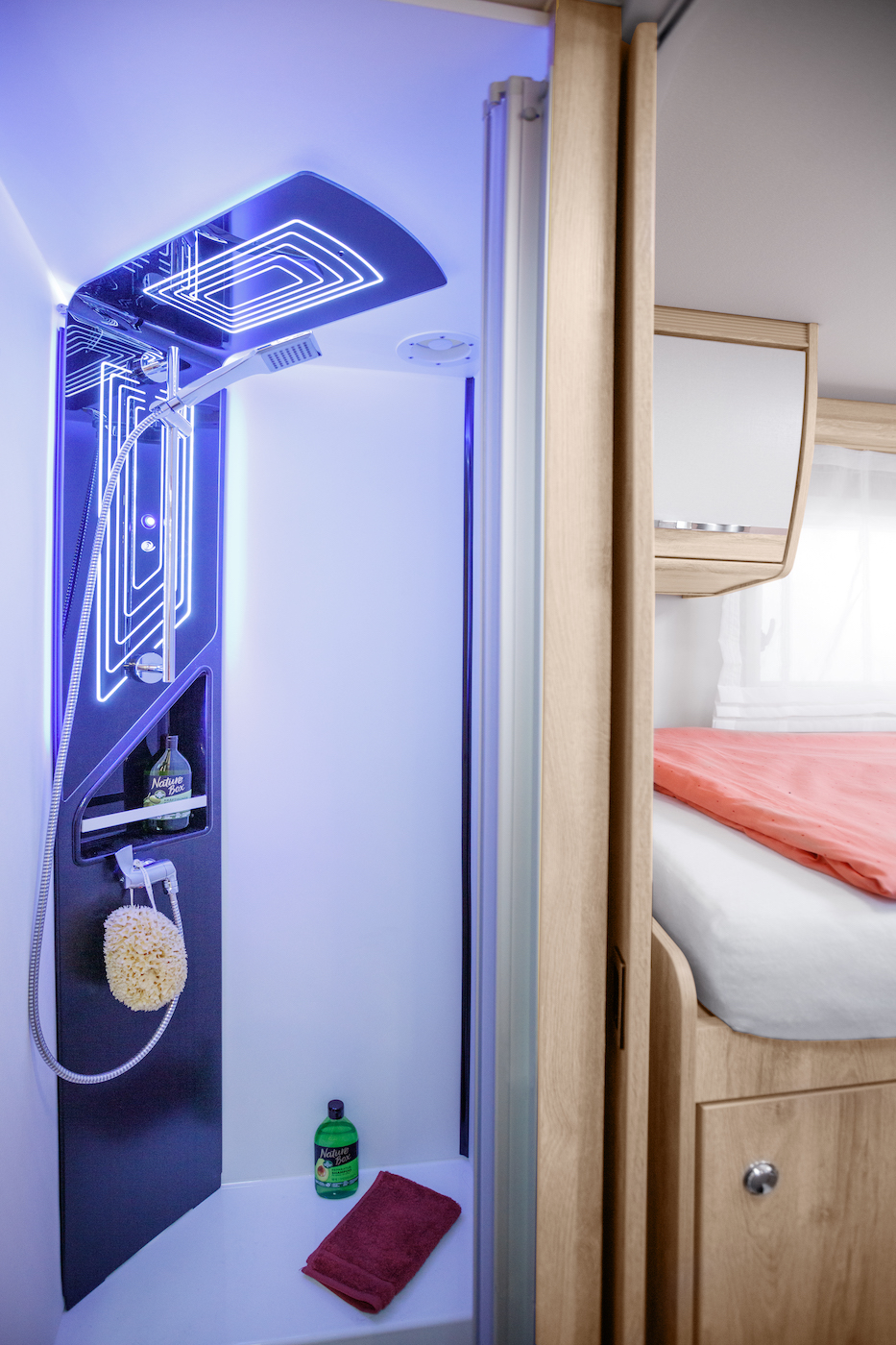

Comfort rain shower with back-lit shower column (depending on floor plan)
Toilet room with mirrored cabinet and base unit
Door to sleeping area on IL 720, 730

Water Installation

Fresh water system made from Hartflex plastic
Fixed pipe system for waste water
138 - 140 l (depending on floor plan) insulated and heated fresh water tank in the double floor (Water capacity in drive position 25 l)
2 drainage valves for fresh water system
100 l waste water tank in insulated and heated floor trough
Electrically operated waste water tank emptying at the push of a button
Fittings with ceramic cartridges
Siphons to prevent odours

Electrical Installation

Electrical distributor panel easily accessible in the cover on the passenger seat
80 Ah gel battery
On-board control panel with separate displays for water, battery and charging voltage
LED reading spotlights with real glass
Light switch system with household logic system
LED ceiling light
Number of 230 V power sockets: 3
Number of 12 V power sockets: 1
16 A charger
USB charging ports in the living room and bedroom
