37 cm high double floor offers maximum space for family luggage.
High comfort
Insulated, heated alcove ensures cosy nights on the road.
Practical layout
Flexible floor plans offer versatile storage and filing options.
Highlights
The Eura Mobil Activa One (e.g. AO 690 VB) impresses with a pull-out double bunk bed, maximum storage space thanks to a 37 cm high double floor, insulated and heated alcove, practical family layouts, water tanks in the insulated and heated double floor and now two Isofix mounts in the direction of travel (except HS layouts).
The various models in the Activa One alcove range are much more than just simple motorhomes: their fresh interior enhances the first impression of robust spaciousness to create an even greater sense of well-being. real feeling of freedom.
No matter from which perspective you look at the interior of the Activa One - a total of four different floor plans This results in a variety of practical stowage and storage options. The 37 cm high double floor safely packs even large family luggage. And because everything in this model range is perfectly planned and professionally realised, relaxation begins as soon as you set off.
Upholstery
Dara upholstery
Milano upholstery (optional)
Genoa upholstery (optional)
Standard equipment
140 hp engine, Euro 6d final
CCS broad gauge low frame (track width 1,980 mm)
Cruise control
Manual air conditioning
ABS + ASR
Driver/passenger airbag
Fix and Go breakdown kit
Daytime running light
ESP incl. Traction+ & Hill Descent Control
16" wheels
Winterised construction according to EN 1646
Bodywork protected from hail all round by GRP walls and roof
Continuous lightweight double floor, insulated and heated
Storage space in the double floor GRP-coated (floor and walls)
Lightweight base plate made of GRP and additional aluminium profile reinforcements
Wood-free GRP walls, insulated throughout
Floor-wall connection without thermal bridges
Roof edge profile made of painted aluminium with joint sealing
Alcove edge profile made of GRP with joint sealing
Robust body sills made from painted aluminium

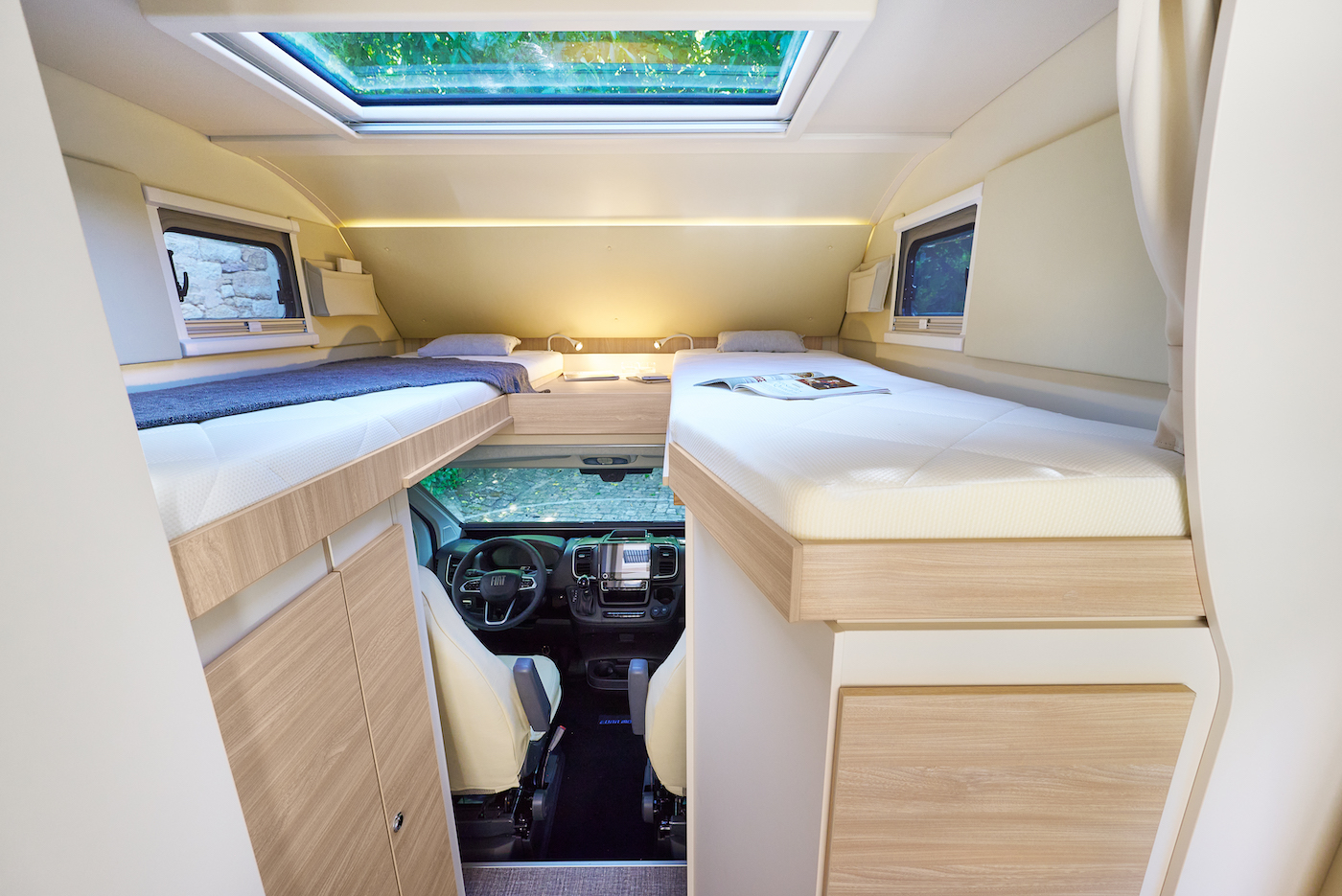

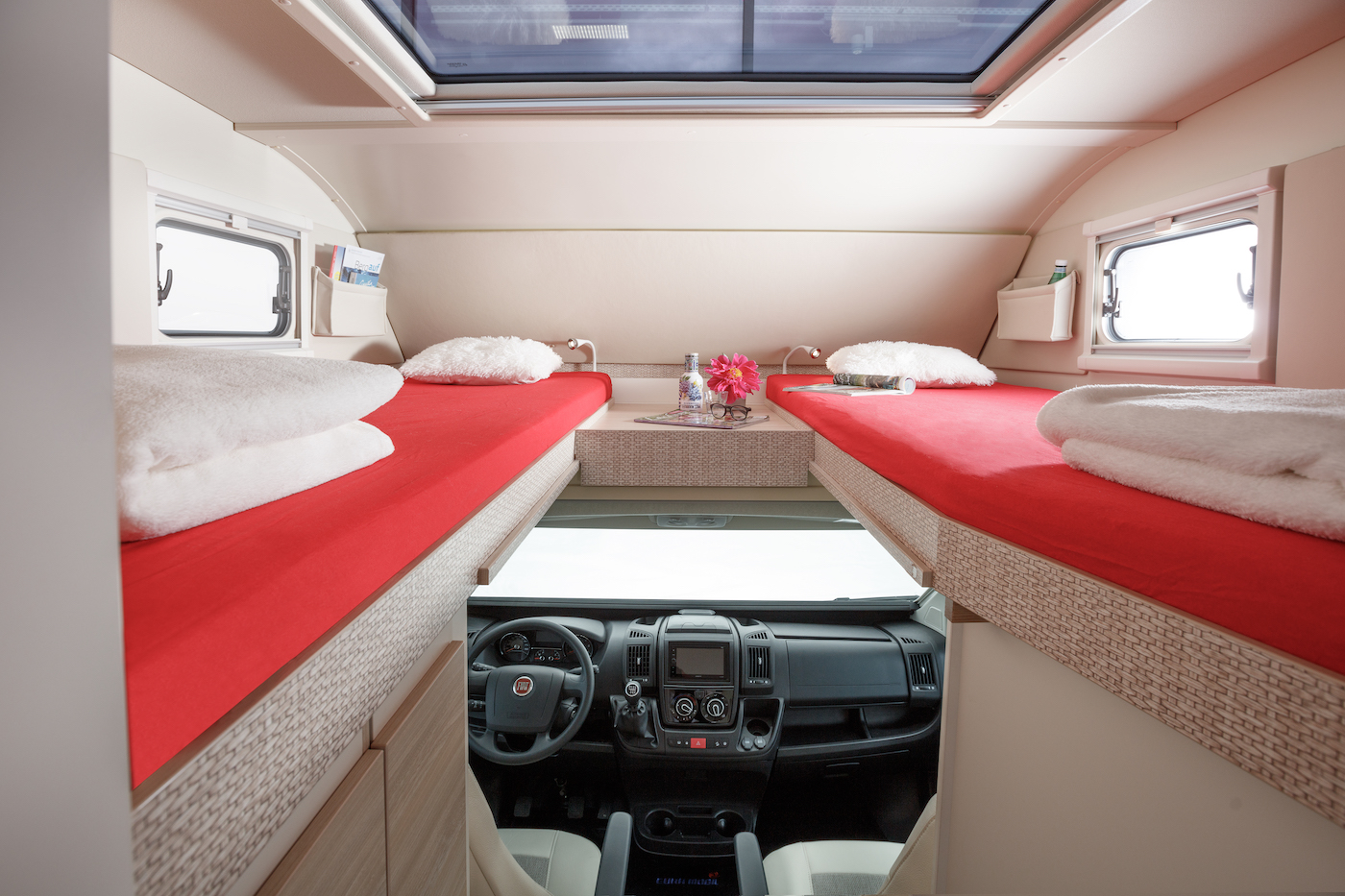

Heated and insulated alcove
2 windows in the alcove
Folding alcove floor
Safety net in the alcove
Wall thickness walls/roof/floor: 30/32/38mmIsofix, 2 x in the direction of travel (except AO 650 HS and AO 570 HS) in the seating group
Extra large garages thanks to 37 cm high raised floor
Electric access step
Trumatic Combi 4 heater
Seitz insulating windows flush with the outer wall with mosquito screen
Service flaps with double seal, insulated inlay and self-closing locks
One-key system for the entire superstructure
Body door with window and waste bin
Large rear lights in a modern design
Mini-heki over rear area
Mini-heki over front area
Two-colour furniture decor in wild oak and beach white
Curtain to driver's cab (depending on layout)
Wall units with aluminium profile reinforcement
Soundproofing for wall unit flaps
7-zone cold foam mattresses
Floor covering with impact sound insulation
Upholstery fabric: Dara
Refrigerator 142 litres
3-burner hob with electric ignition, glass cover and large work surface
Pull-outs with metal roller runners
Deep wall units; subdivided, with vibrating edge
Tap with swivelling anti-drip outlet
Lots of freedom of movement thanks to ergonomically optimised room layout

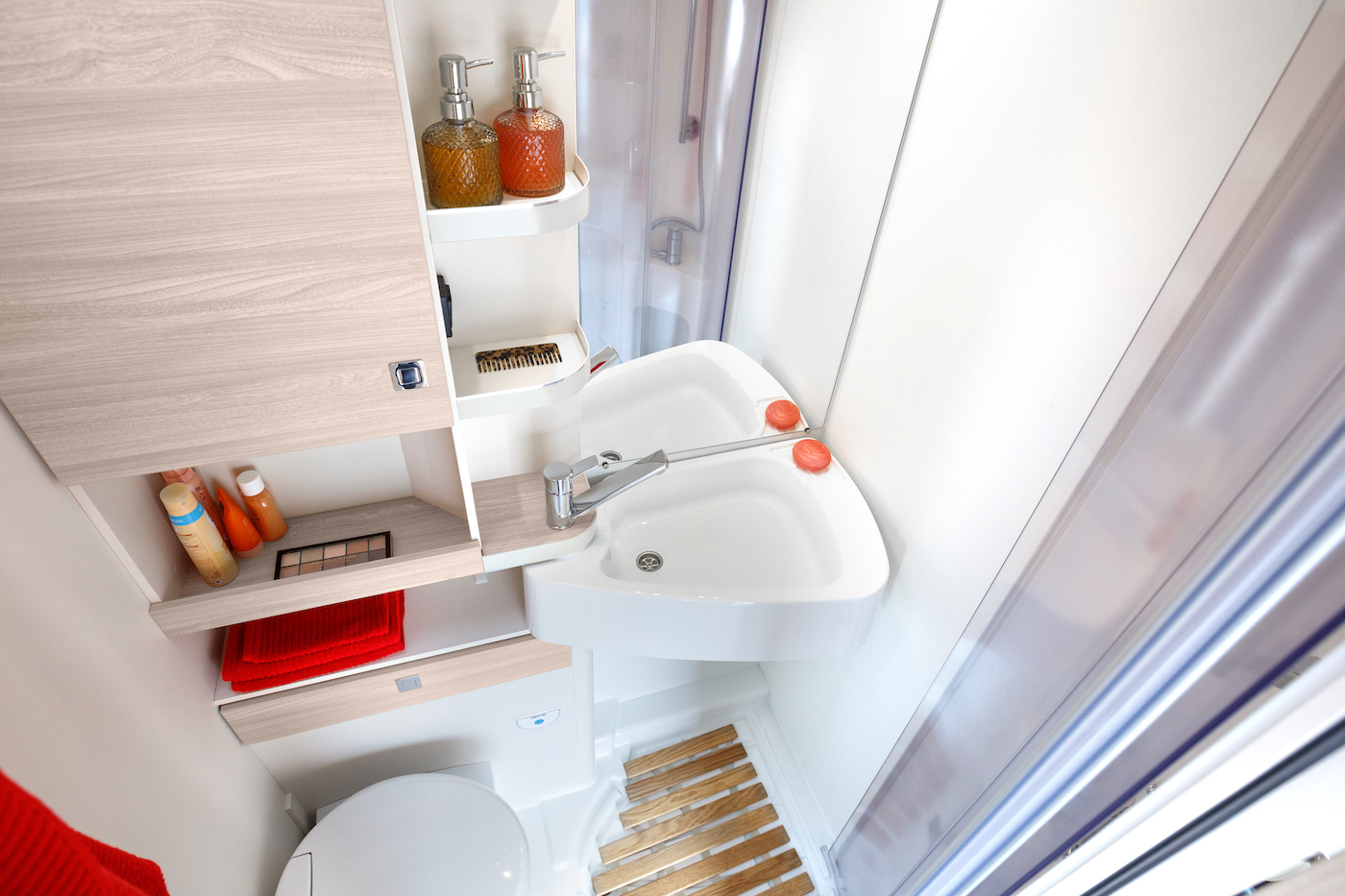

Centre washrooms with integrated shower cubicle (570 HS, 650 HS, 690 HB, 690 VB)
Storage cupboard and mirror
Cassette WC with large roller tank
Fresh water system made of Hartflex plastic
Fresh water tank 143 - 150 litres (depending on layout) insulated and heated in the interior (water volume in driving position 25 l)
2 quick-release drain valves for fresh water in the heated and insulated double floor
Waste water tank 150 litres insulated and heated in double floor
Taps with ceramic cartridges
Syphons against odours
Pressurised water system
Electrical centre easily accessible under the passenger seat
Gel battery 80 Ah
On-board control panel with separate display for water, battery and charging voltage
LED reading spotlights with real glass
Light switch system with household logic
Ceiling light
Number of 230 V sockets: 2
Number of 12 V sockets: 1
Charger 21 A
USB ports: 1
Start your next big adventure!
Find your local Activa One dealer and arrange a personal consultation.
