Activa One

Relaxation on schedule

Coach Builts Activa One

A Home for Everyone. Activa One Coach-Builts

The coachbuilt models from Eura Mobil offer bed combinations for up to 6 sleeping areas, depending on the floor plan and interior concept chosen. With lots of optional add-on features, the various models in this series can be adapted perfectly to  your personal wishes and preferences. With its impressively spacious yet at the same time stylish appearance, the Activa One is the first choice for families and amateur athletes, as well as for rental. It means everyone can look forward to knowing that their holiday is going to be a great one!

Highlights:

  • Double pull-out bunk bed (AO 690 VB)
  • Maximum storage space thanks to 37 cm high double floor
  • Insulated and heated Coachbuilt
  • Practical family floor plans
  • Water tanks in the insulated and heated double floor
  • Now with 2x Isofix in the direction of travel (except HS floor plans)
Activa One Baureihe mit Beach Home Interieur
Two-tone furniture décor in wild oak and beach white
Wall units with aluminium profile reinforcement
Floor covering in wooden flooring look
3-ring hob with electric ignition, glass cover and large work surface
Water tap with turning non-drip outlet
LED reading spotlights with real glass

Floor plans

AO 550 MS

Price: 60.450 €Length: 5,89 mSleeping areas: 4

AO 570 HS

Price: 62.950 €Length: 5,99 mSleeping areas: 4

AO 690 VB

Price: 64.750 €Length: 6,99 mSleeping areas: 6

AO 690 HB

Price: 62.750 €Length: 6,99 mSleeping areas: 6

AO 650 HS

Price: 64.950 €Length: 6,50 mSleeping areas: 4

Standard Equipment

Chassis

120 HP engine, Euro 6d-Final
CCS wide track low-slung frame (1,980 mm gauge)
Cruise control
Manual air conditioning
ABS + ASR
Driver / passenger airbag
Fix & Go breakdown kit
Daytime running light
ESP including Traction+ and hill descent control
16" wheels

Superstructure

Superstructure winter-proof according to EN 1646
Bodywork fully protected from hail with walls and roof made from GRP
Lightweight construction double floor throughout, insulated and heated
Storage space in the double floor GRP-coated (floor and walls)
Lightweight construction floor plate made from GRP and additional aluminium profile reinforcement
Wood-free GRP walls, insulated throughout
Floor-wall joint without cold bridges
Roof edge profile made from painted aluminium with joint sealing
Top cab edge profile made from GRP with joint sealing
Sturdy chassis side skirts made from painted aluminium

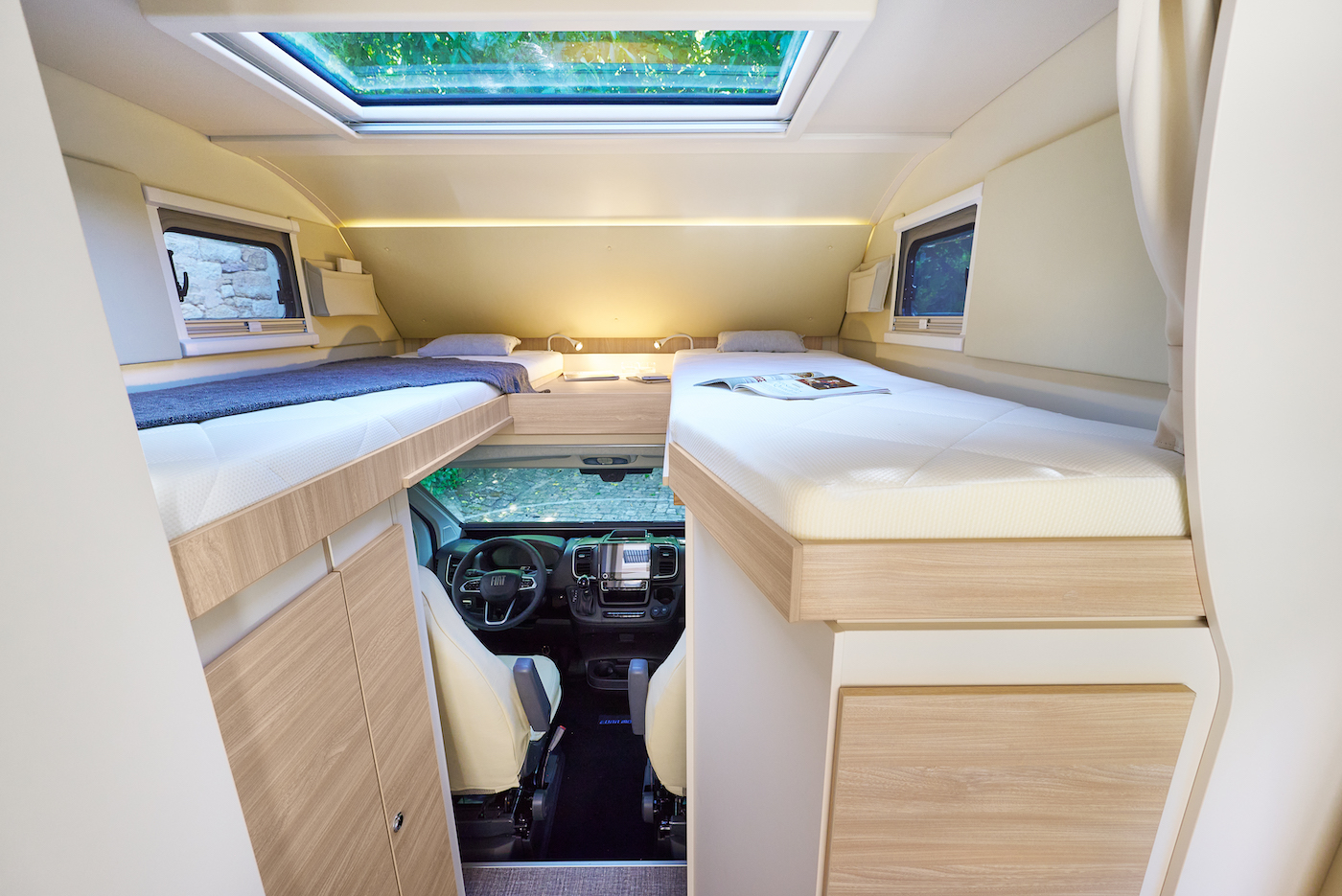

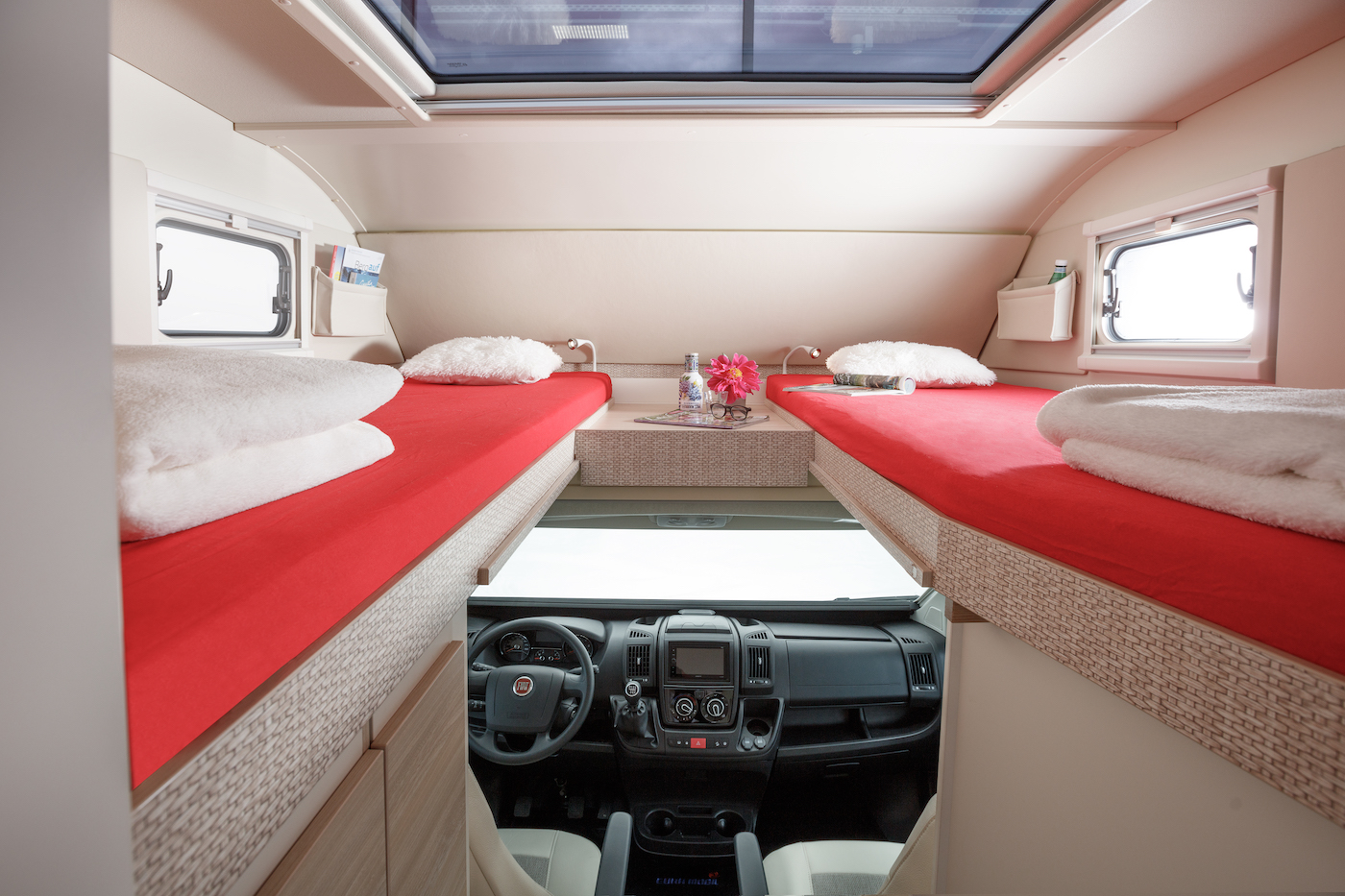

Heated and insulated top cab
2 windows in the top cab

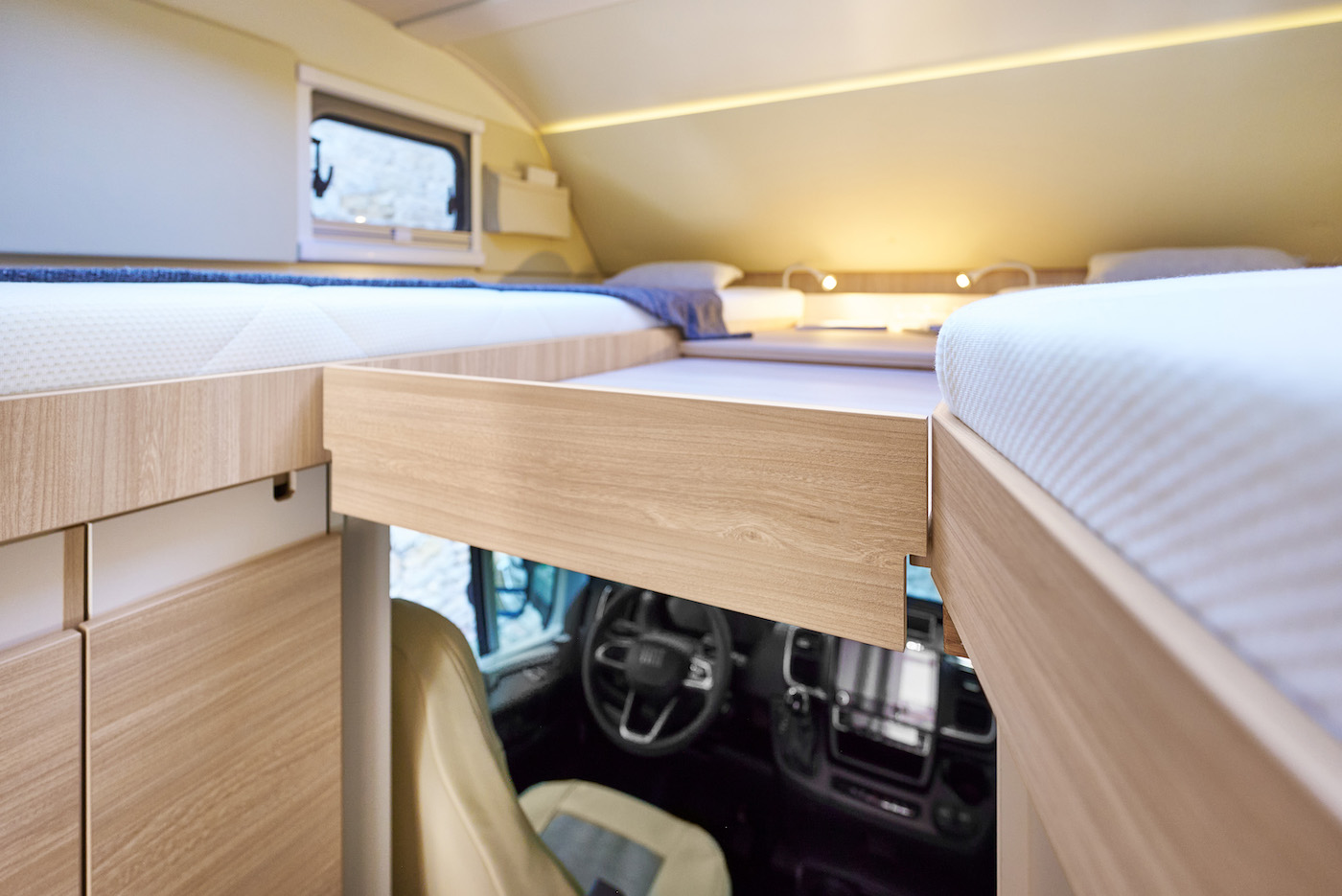

Fold-out top cab floor
Safety mesh in the top cab
Wall thickness of walls/roof/floor: 30/32/38 mm
Isofix, 2 x in the direction of travel (except AO 650 HS and AO 570 HS) in the seating area
Extra-large garages thanks to 37 cm high double floor
Electric access step
Trumatic Combi 4 heating
Seitz insulated window with mesh screen flush with the external wall
Service flaps with double seal, insulated inlay and self-closing locks
Single-key system for the entire superstructure
Access door with window and waste bin
Large tail lights in a modern design
Mini Heki skylight over rear section
Mini Heki skylight over front section

Living Space

Two-tone furniture décor in wild oak and beach white
Curtain to the driver’s cab (depending on floor plan)
Wall units with aluminium profile reinforcement
Noise insulation for wall unit doors
7-zone cold foam mattresses
Floor covering with footfall sound absorption
Upholstered fabric: Dara

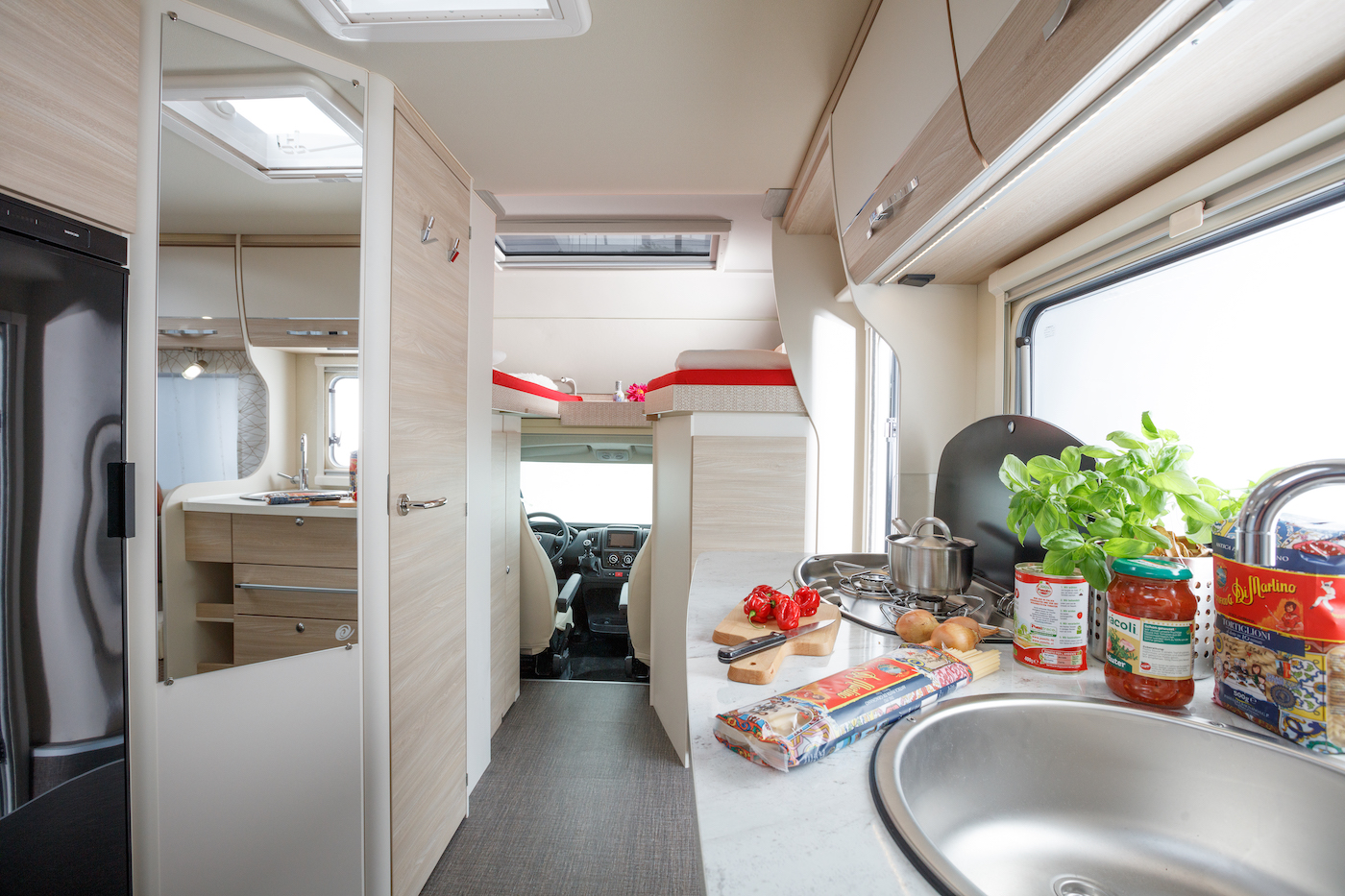

Kitchen

Refrigerator, 142 litres
3-ring hob with electric ignition, glass cover and large work surface
Drawers with metal roller runners
Deep wall units; divided, with slide guard
Water tap with turning non-drip outlet

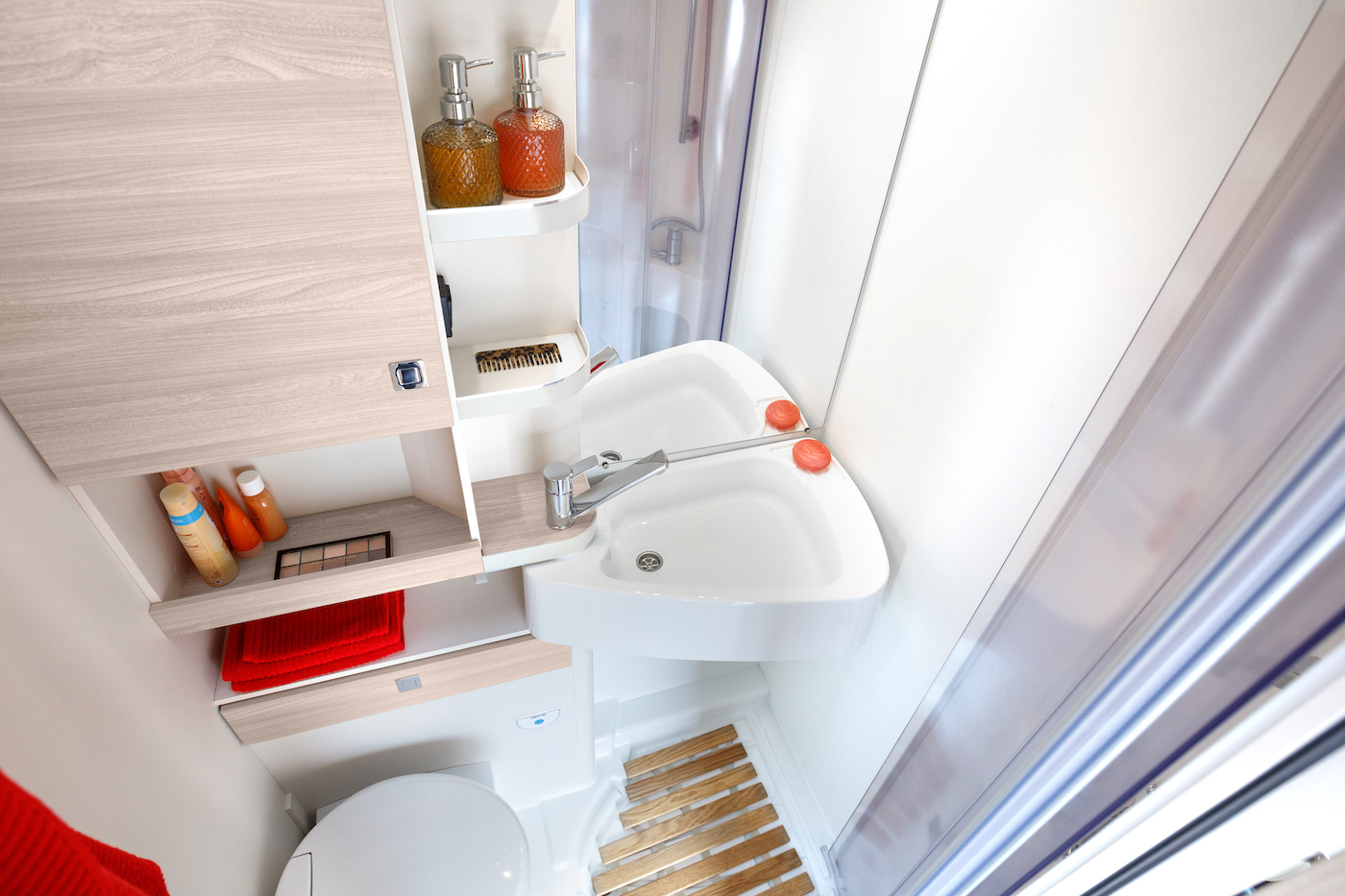

Washroom

Plenty of space to move around thanks to ergonomically optimised room division
Centre washrooms with integrated shower cubicle (570 HS, 650 HS, 690 HB, 690 VB)
Rear washroom with separate shower cubicle (550 MS)
Storage closet and mirror
Cassette WC with large roller-mounted tank

Waterinstallation

Fresh water system made from Hartflex plastic
143 - 150 litre fresh water tank (depending on floor plan) insulated and heated in the interior (Water capacity in drive position 25 l))
2 drainage valves for fresh water in the heated and insulated double floor
150-litre waste water tank insulated and heated in the double floor
Fittings with ceramic cartridges
Siphons to prevent odours
Pressurised water system
Complies at least with the state of the technological art set out in 03/2009 (Directive 2002/72/EC)

Electrical Installation

Electrical distributor panel easily accessible under the passenger seat
80 Ah gel battery
On-board control panel with separate displays for water, battery and charging voltage
LED reading spotlights with real glass
Light switch system with household logic system
Ceiling lights
Number of 230 V power sockets: 2
Number of 12 V power sockets: 1
16 A charger
USB ports: 1

Configure your motorhome

Choose one of our models and modify it to your individual preferences.
