Integra

The new upper class

Giving freedom a face.Integra A-Class motorhomes

With the Integra, Eura Mobil has raised the bar for top-class motorhomes to a completely new level: an emotionally striking yet highly functional and uniquely safety-focused lighting design both indoors and out accentuates the luxurious character found in this class. Discreet ambient lighting and state-of-the-art LED technology create especially impressive lighting conditions that can be seen from every angle. High-quality materials, first-class workmanship, stylish architecture and the extremely spacious interior design come together to form an incomparable atmosphere of well-being. Climb aboard and be inspired from start to finish – throughout your entire journey in this luxurious motor home.

Highlights:

  • State-of-the-Art LED light technic
  • Automotive design
  • Lounge sofa with back cushions
  • Winterproof, heated double floor
  • Insulated and heated water tanks
  • Electric waste water tank drainage

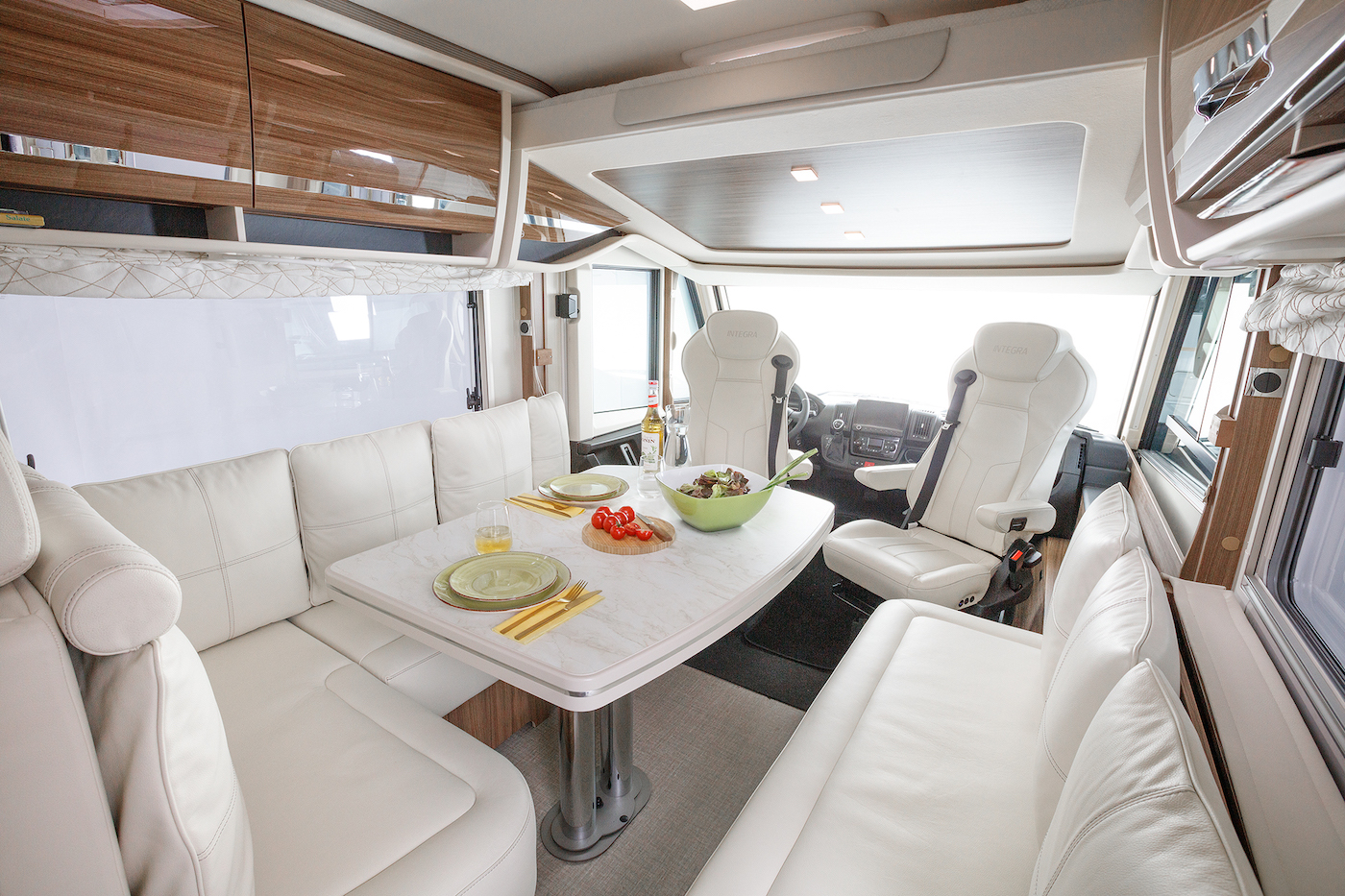

Integra Wohnmobil von Eura Mobil Innenaufnahme
Interior "Navarra"
7-zone cold foam mattresses
Wall unit doors with solid spring closures
Wall units with high-gloss coating and chrome appliqué
Entrance area with illuminated handle and handy storage compartments
Wine cabinet with glass and wine bottle holders
Lounge sofa with back cushions and seat box cover
High-quality head rests and neck padding on the seats with belts
Bed headboard with chrome appliqués and ambient lighting
Electric lift for coffee maker in lowerable glass display case (depending on floor plan)
Door with reed inlay

Floor plans

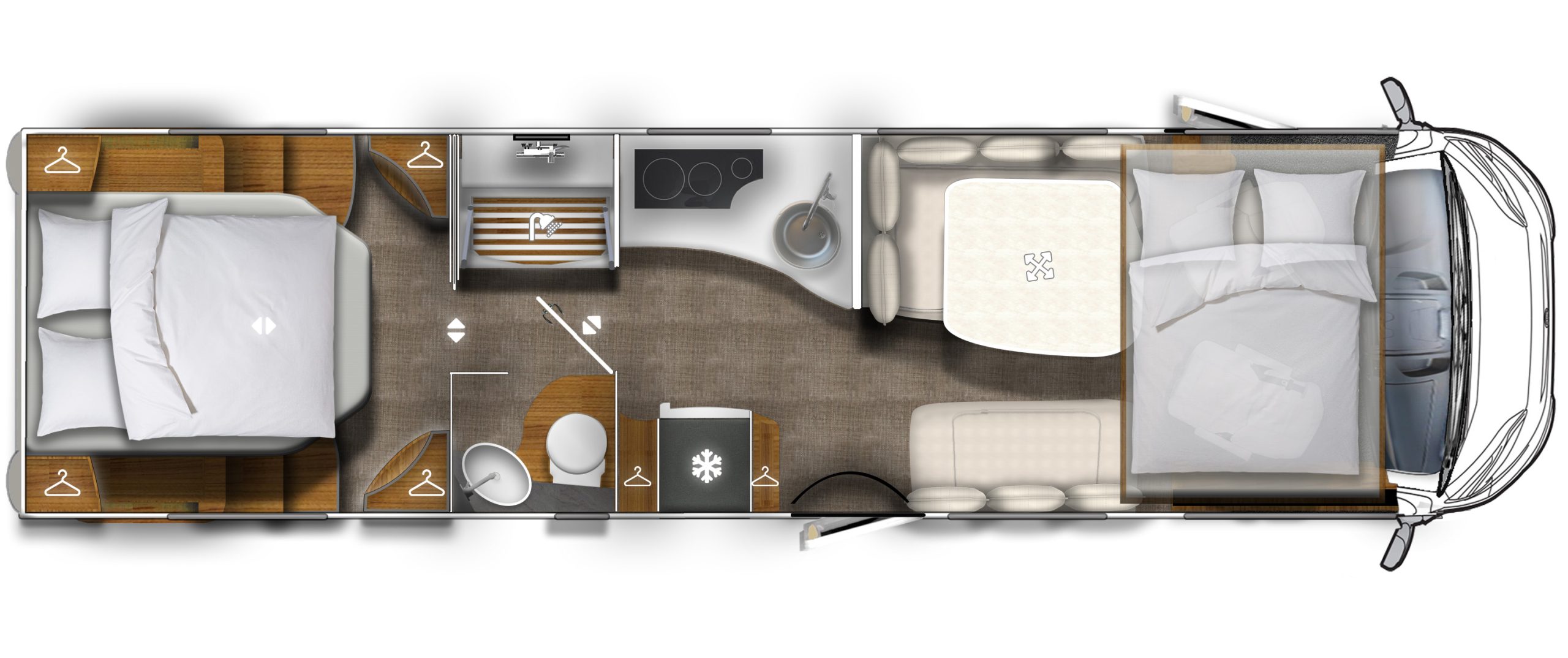

I 890 QB

Length: 8,99 mSleeping areas: 4

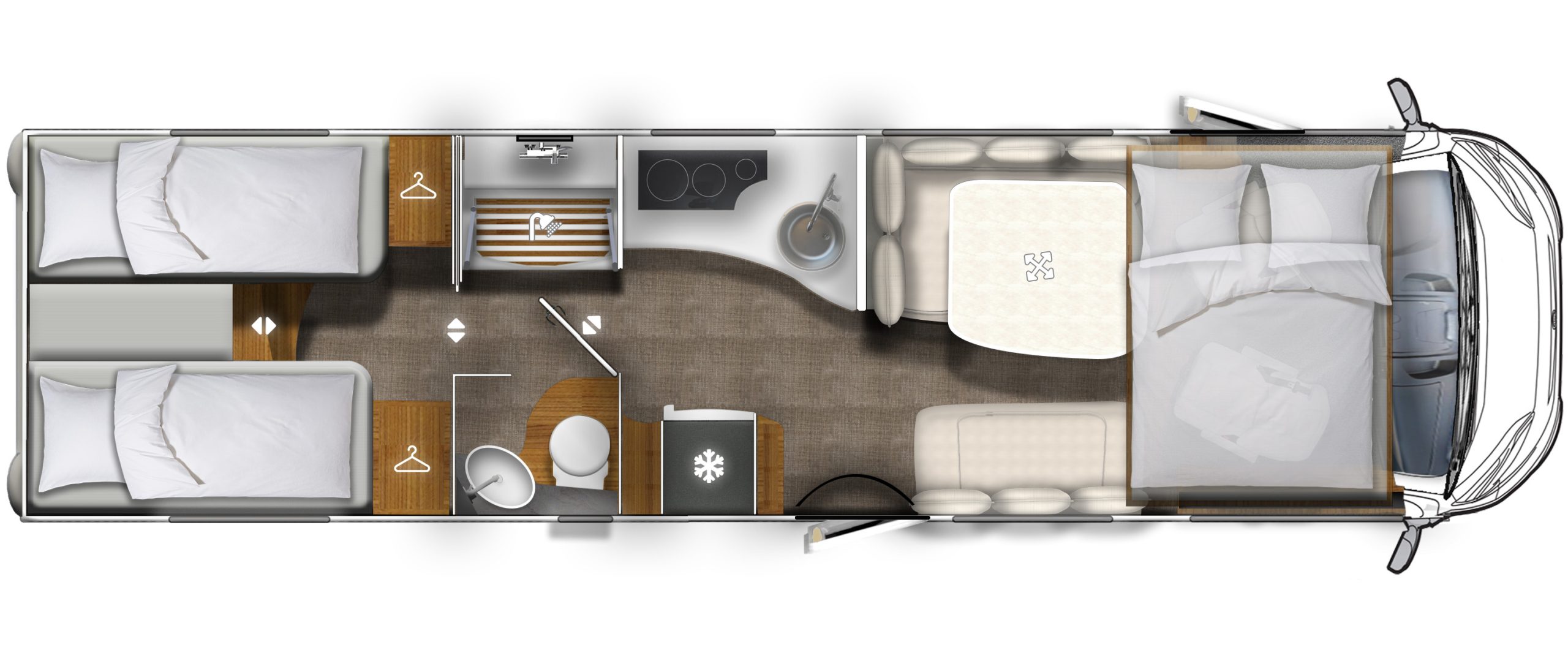

I 890 EB

Length: 8,99 mSleeping areas: 4

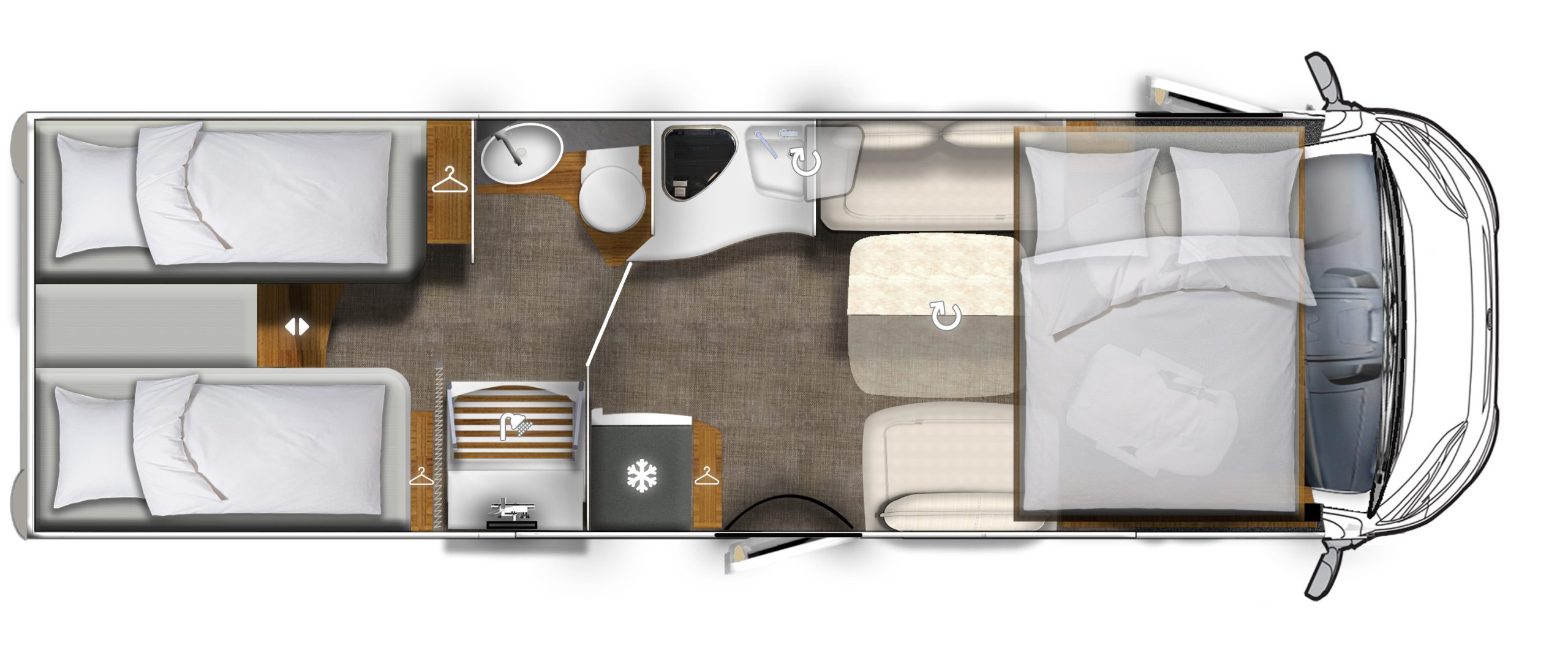

I 760 EF

Length: 7,89 mSleeping areas: 4

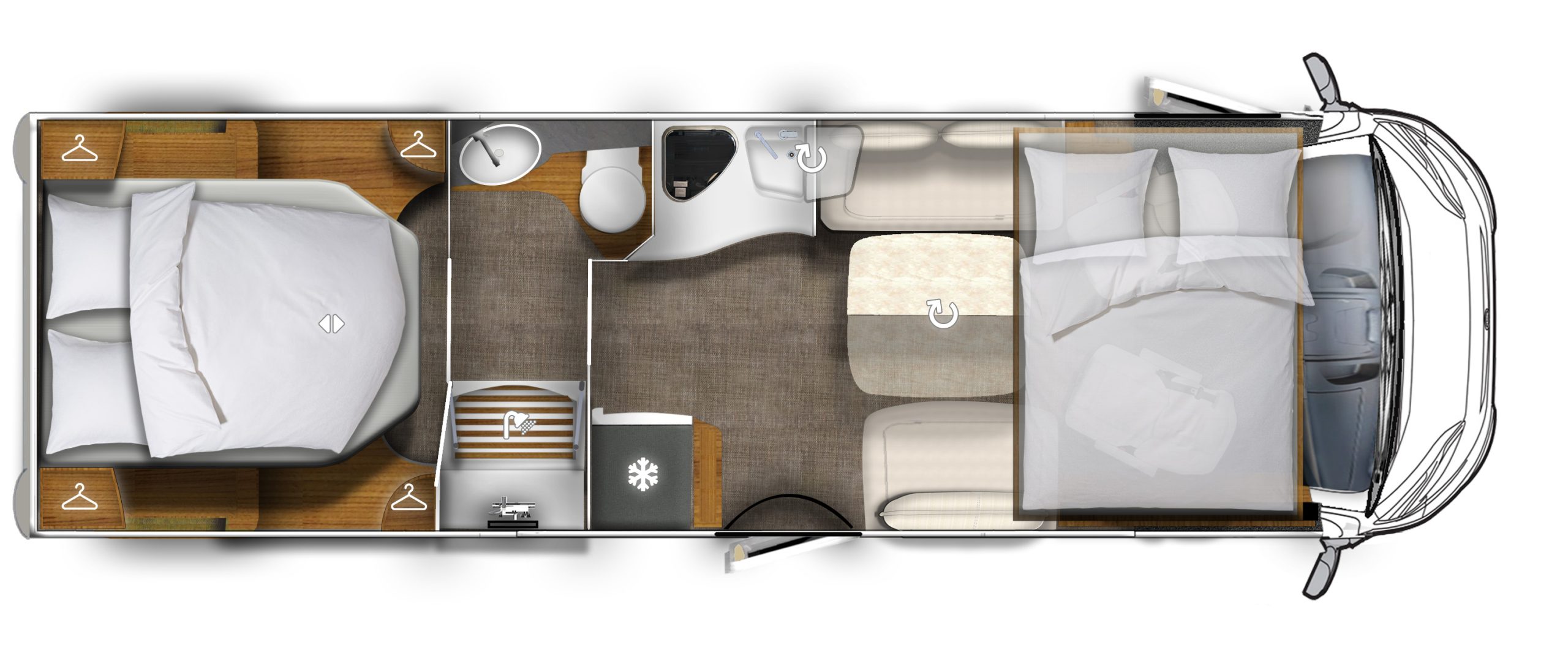

I 760 QF

Length: 7,89 mSleeping areas: 4

Standard Equipment

Chassis

140 HP engine, Euro 6d-Final
AL-KO low-slung frame chassis
ABS
Driver / passenger airbag
Manual air conditioning
ESP including Traction+ and hill descent control
Cruise control
16" wheels
Fix & Go breakdown kit
LED daytime driving light
LED headlights
LED dipped beam
LED tail lights
LED indicators with direction-indicating running light (rear)

Driver's Cab

Driver’s cab seat in structured upholstered fabric
Front mask made from moulded GRP piece
Exclusive lamp unit with integrated indicator
Panoramic windscreen (for wide field of vision)
Eura Mobil „Short Cabin“
Short front section with integrated original Fiat crash protection
Short dashboard with wide viewing angle to the front
Wide-opening, narrow bonnet with direct access to windscreen wash and oil top-up nozzles
Electrically adjustable bus mirrors, heated
Dashboard and door trims in carbon look
Lift-up bed with 78 cm seat height
Electrically controlled lift-up bed
Storage closets under the lift-up bed
Ambient lighting below the lift-up bed
Mini Heki skylight over lift-up bed
Driver’s door with large storage compartments
Electric control panel within easy reach in the covered compartment on the passenger side
Electric window raiser for the driver’s door
Extensive noise insulation
Driver’s cab with automotive design
GRP front mask with headlight housings in RIM technology
Navigation lights behind windscreen
Lowered radiator bridge for easy access to the engine compartment
Bonnet with gas spring assistance
Diffuser elements in black gel coat A-Class into single-piece front mask
Moulded parts under the lift-up bed for smooth optical transition to the living area
Pilot’s seats with arm rests and integrated seatbelts
Driver’s cab door with double locking and central remote locking
Sliding windows for passenger side
Concertina darkening system for driver’s cab
Electrically controlled front blinds
Sun visors with steplessly adjustable roller blinds, A-Class into the headlining
Card compartment with handy flap cover on the passenger side
Reading lights and orientation light in the driver’s cab

Superstructure

Lightweight construction double floor throughout, insulated and heated
Aluminium profile without cold bridges for floor-wall joint
Lightweight construction floor plate with aluminium inlay
Insulated wheel arches
Wood-free GRP walls
Double floor GRP-coated
Roof, wall, flooring made from GRP, fully insulated
Wall thickness of walls/roof/floor: 30/30/38 mm
Isofix 1x in direction of travel
Roof edge profile made from powder-coated aluminium with joint sealing
Sturdy chassis side skirts made from aluminium
Electrically actuated step
Alde warm water heating
Duo control with remote display, de-icer and crash sensor
Service flaps with double seal, insulated inlay and self-closing locks
Extra-wide access door with window and waste bin
Wall units with aluminium profile reinforcement
Warm air circulation in double floor for underfloor heating effect
External lighting
Fresh and waste water tank in heated double floor
GRP rear wall with three-dimensional curving
Diffuser elements in black gel coat A-Class into single-piece rear section
Central service compartment with access to the water drainage taps
Additional, lowered side and floor storage compartments (depending on floor plan)
Garage doors on the driver and passenger side
Rear storage spaces with anchor bars, straps and storage boxes
Anti-slip surface on garage floor
Mesh screen for cabin door
Heki skylight roof hood over seating group
Mini Heki skylight over rear bed
Mini Heki skylight over front section
Insulated Seitz framed window with mesh screen flush with the external wall
Window roller blinds with noise insulation
Carpeted floor in the superstructure
Garage lowering system with insulated well

Living Space

Interior "Navarra"
Upholstered fabric: Como or Dara
Double-pedestal table (at I 890 EB and I 890 QB) with chrome-plated table feet and table top in marble look
Living space with decorative elements (and wall pockets)
7-zone cold foam mattresses
Stable bed bases, with underneath ventilation
Wall unit doors with solid spring closures
Noise insulation for wall unit doors
Background lighting
Central control panel unit behind cover plate above entrance door
Wall units with high-gloss coating and chrome appliqué
Wall units with storage compartments, indirect illumination and rear ventilation
Wall unit profile made from aluminium with integrated stop attenuation for furniture doors
Entrance area with illuminated handle and handy storage compartments
Wine cabinet with glass and wine bottle holders
Shoe compartment in the entrance area
Compartment shelves in the upper floor with access from the interior
Lounge sofa with back cushions and seat box cover
High-quality multi-zone upholstery for living room seats
High-quality head rests and neck padding on the seats with belts
Bed headboard with chrome appliqués and ambient lighting

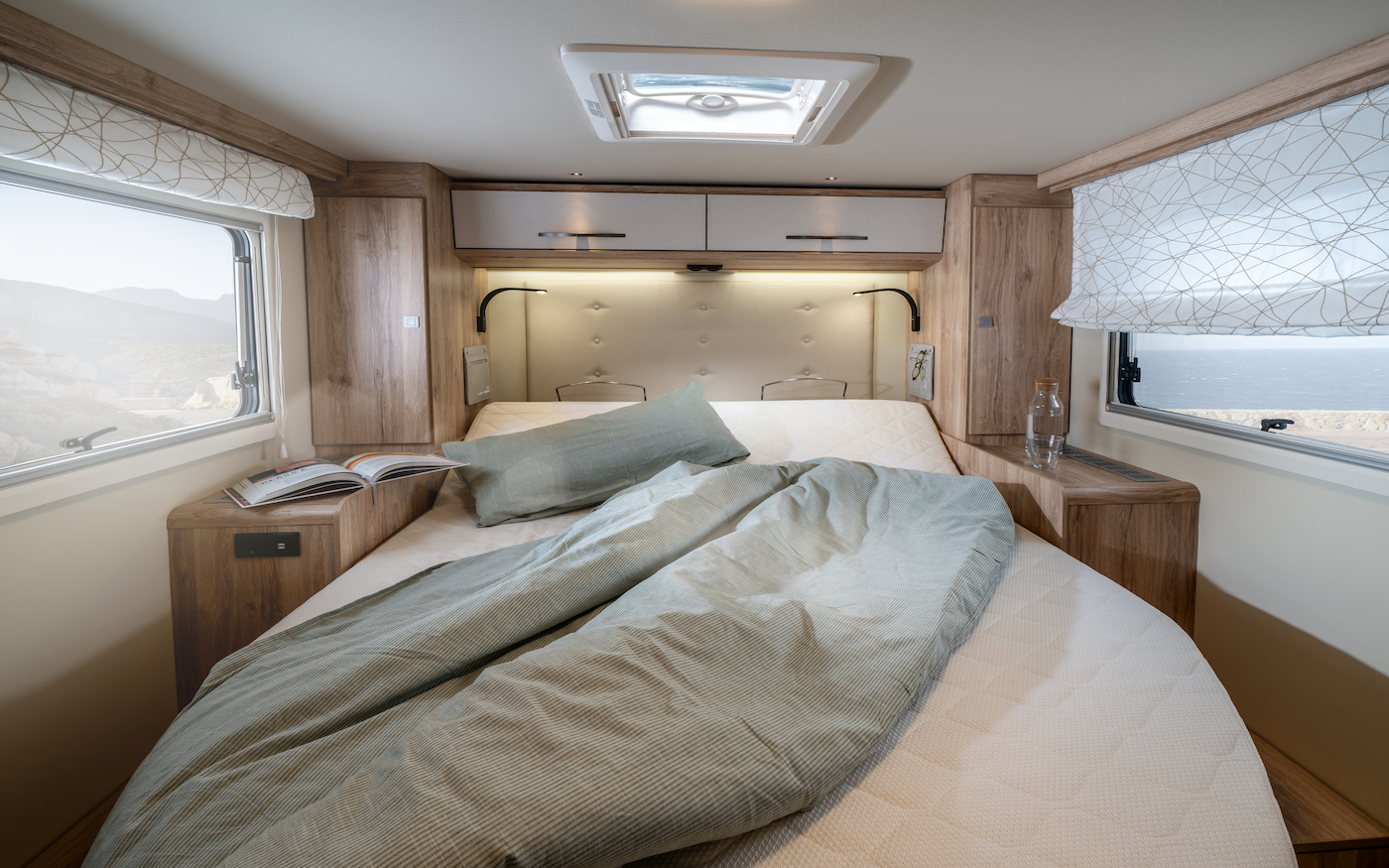

Rear bed in all QB models, height-adjustable

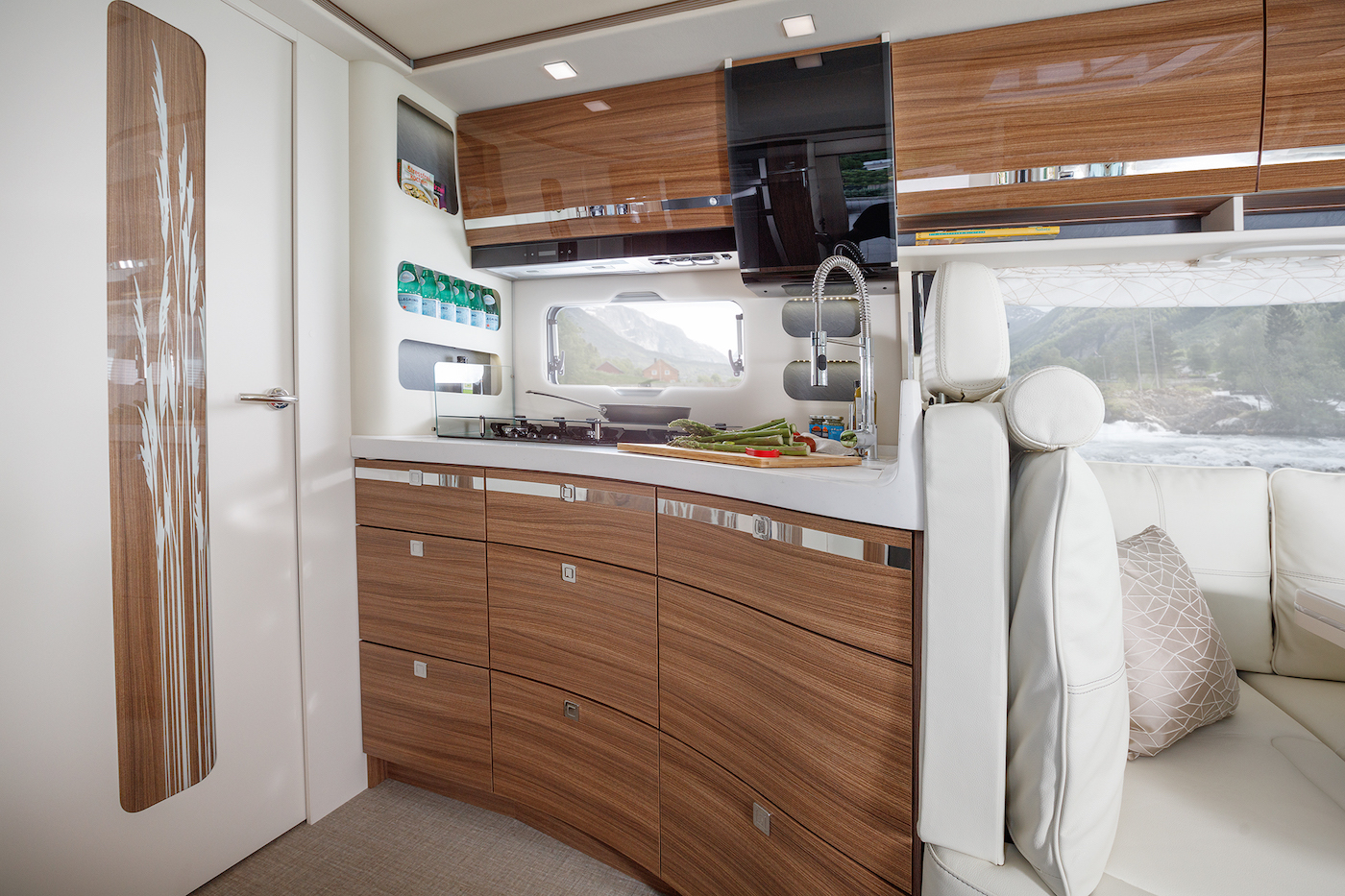

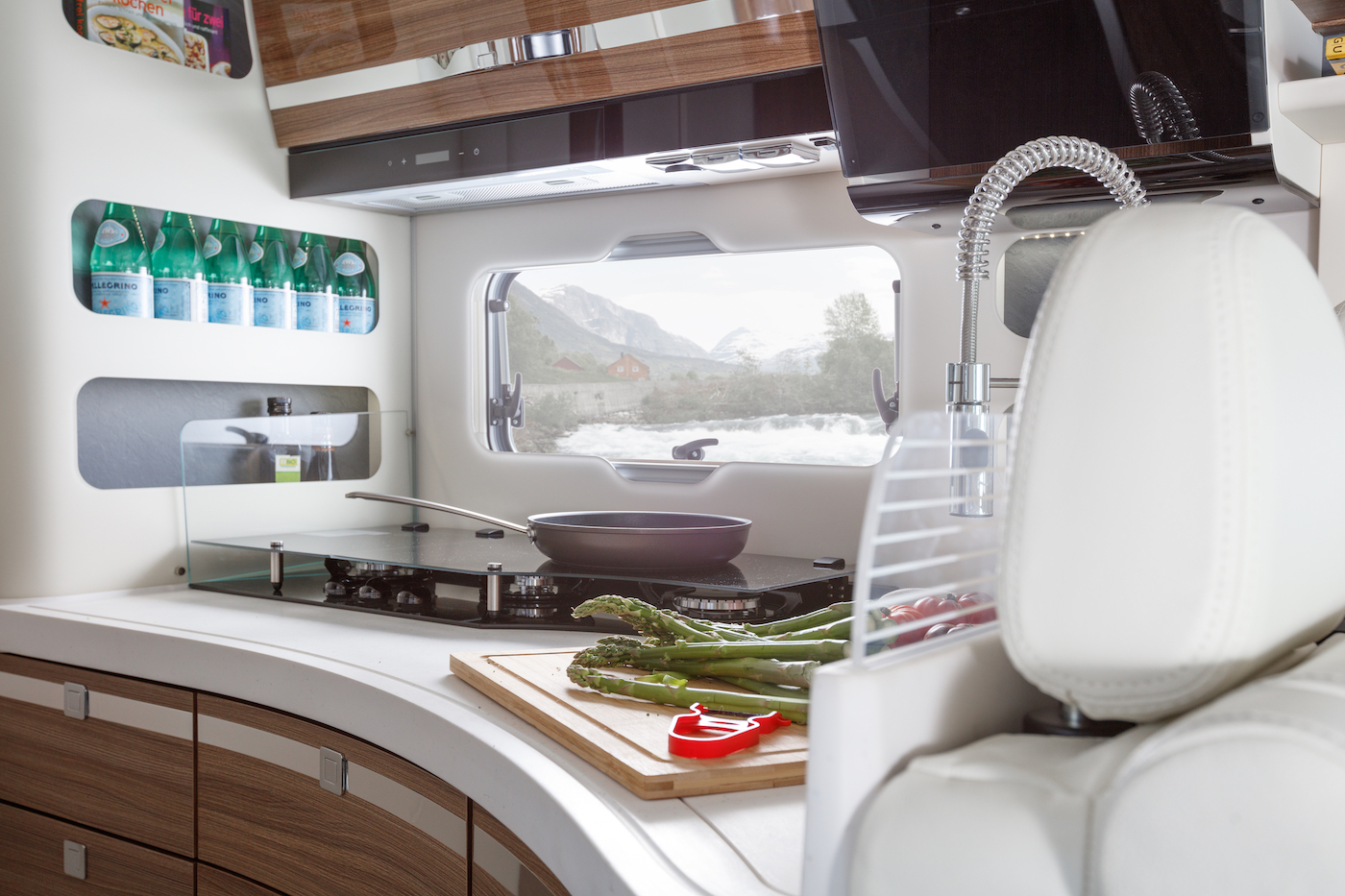

Kitchen

153 l - 177 l refrigerator (depending on floor plan)
Worktop-mounted 3-ring hob with two-part glass cover
Drawers with metal roller runners
9 pull-outs with self-closing mechanism and soft stop
Chrome-plated tap with spring arm
Ergonomically shaped kitchen block
Worktop with indirect illumination for pull-outs
Oven
Extractor hood
Stainless steel sink with two-part chopping board as sink cover
Illuminated storage compartments with slate look
Electric lift for coffee maker in lowerable glass display case (depending on floor plan)
Pull-out cloakroom at the transition to the washroom (depending on floor plan)
Door with reed inlay

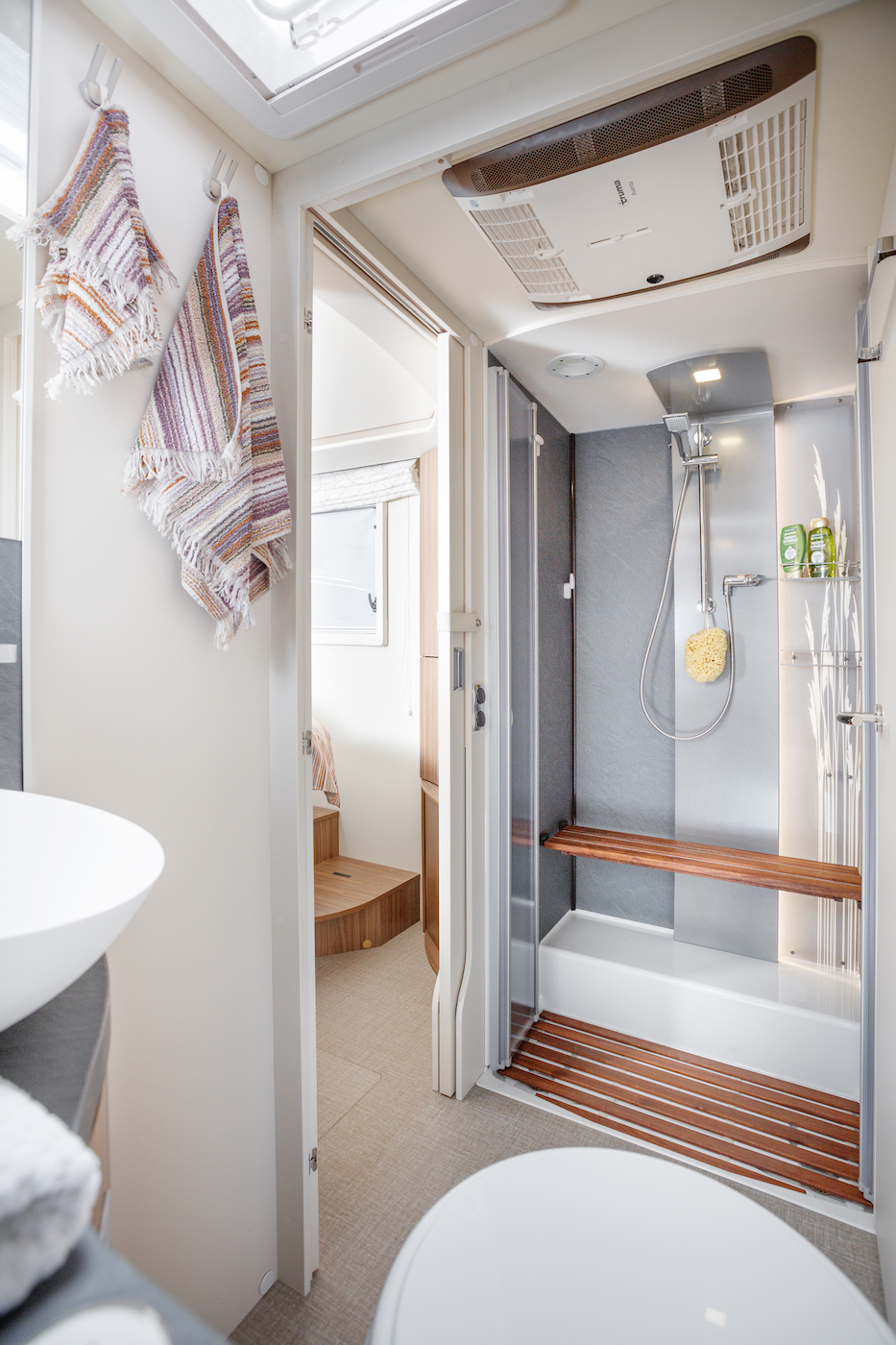

Washroom

Cassette toilet with large roller-mounted tank
230 V power socket
Spacious bathroom with separate shower cubicle
Comfort rain shower with back-lit shower column (depending on floor plan)
Shower wall with slate look, wall heating and illuminated reed inlay
Toilet room with mirrored cabinet and base unit
Window in toilet room (layout-dependent)
Mineral material wash basin
Door to sleeping area

Water Installation

Fresh water system made from Hartflex plastic
Fixed pipe system for waste water
140 l insulated and heated fresh water tank in the double floor (Water capacity in drive position 25 l)
Drainage valves insulated and heated in the central service compartment
100 l insulated and heated waste water tank in the double floor
Electrically operated waste water tank emptying at the push of a button
Fittings with ceramic cartridges
Siphons to prevent odours

Elektroinstallation

80 Ah gel battery
On-board control panel with separate displays for water, battery and charging voltage
LED reading spotlights with real glass
Light switch system with household logic system
LED ceiling light
Number of 230 V power sockets: 3
Number of 12 V power sockets: 1
16 A charger
LED ambient lighting, dimmable and programmable
LED function lights in the centre of the ceiling and in the lateral ceiling struts
USB charging ports in the living room and bedroom
